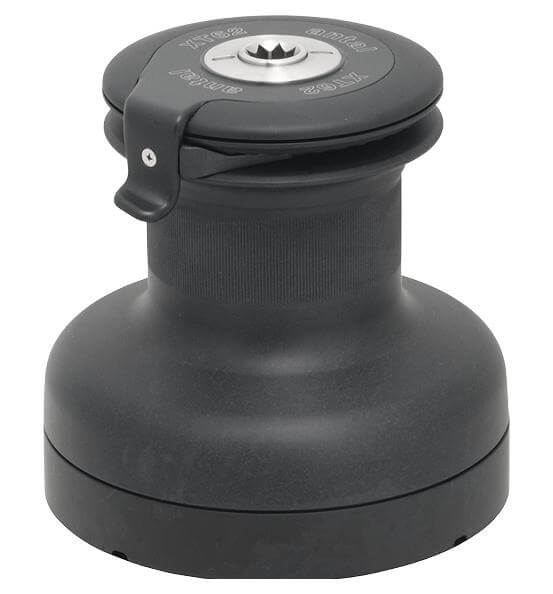

Specifications for Antal 62 2-Speed Self-Tailing Aluminium Winch
| Ropes | |
|---|---|
| Recommended line - Max Ø (mm) | 16 |
| Recommended line - Min Ø (mm) | 8 |
| Boat | |
| Style | Self-Tailing |
| Dimensions | |
| Base Ø (mm) | 224 |
| Drum Ø (mm) | 120 |
| Height (mm) | 219 |
| Winches | |
| Gear ratio 1 (X : 1) | 4.3 |
| Gear ratio 2 (X : 1) | 14.9 |
| Gears (Manual) | 2-Speed |
| Line recovery per rotation - 1st gear (mm) | 89 |
| Line recovery per rotation - 2nd gear (mm) | 26 |
| Power ratio 1 (X : 1) | 17.8 |
| Power ratio 2 (X : 1) | 62.1 |
| Material | |
| Material | Aluminium |
| Undefined | |
| Size | 62 |
| Weight | |
| Weight (g) | 10900 |
| Warranty (yrs) | 3 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
