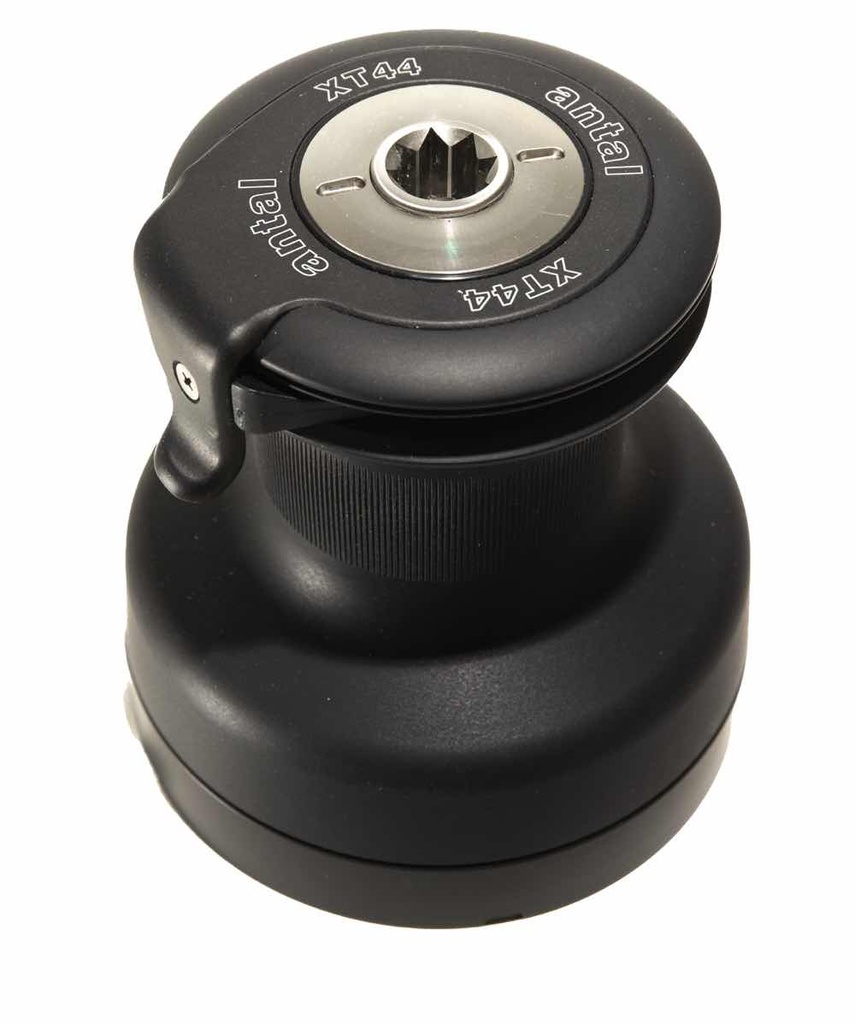

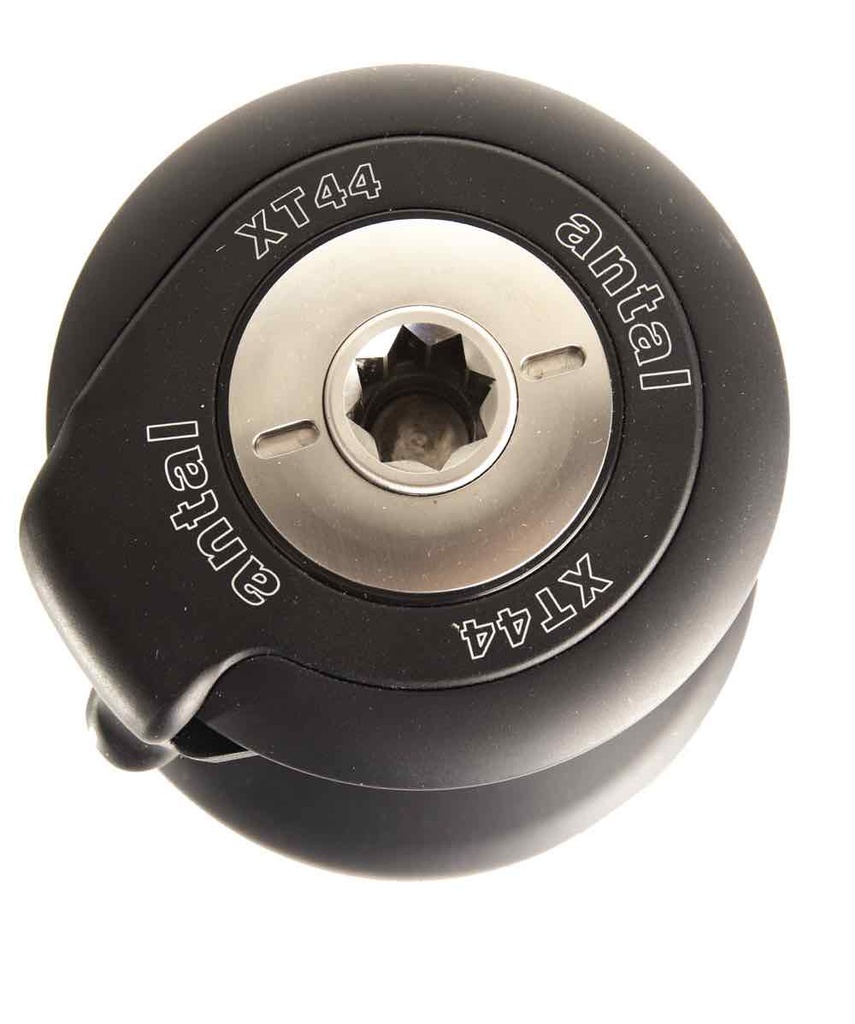

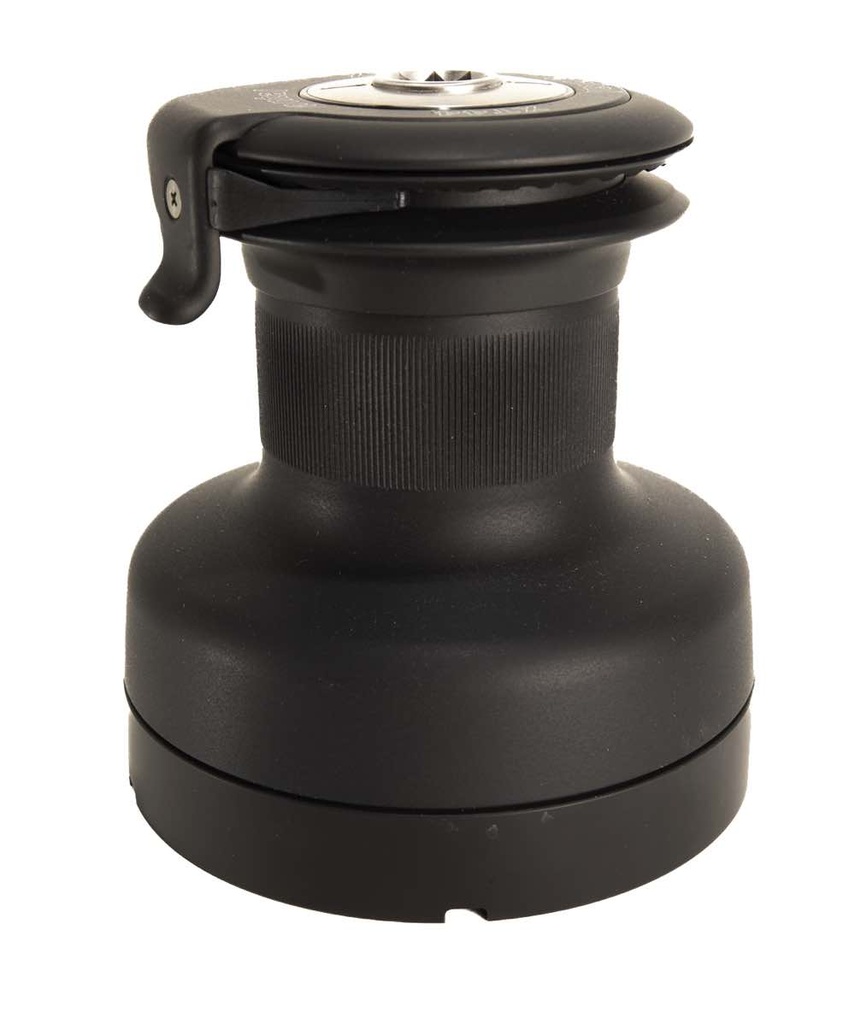

Specifications for Antal 44 2-Speed Self-Tailing Aluminium Winch
| Ropes | |
|---|---|
| Recommended line - Max Ø (mm) | 14 |
| Recommended line - Min Ø (mm) | 8 |
| Boat | |
| Style | Self-Tailing |
| Dimensions | |
| Base Ø (mm) | 173 |
| Drum Ø (mm) | 93 |
| Height (mm) | 185 |
| Winches | |
| Gear ratio 1 (X : 1) | 3.7 |
| Gear ratio 2 (X : 1) | 8 |
| Gears (Manual) | 2-Speed |
| Line recovery per rotation - 1st gear (mm) | 80 |
| Line recovery per rotation - 2nd gear (mm) | 38 |
| Power ratio 1 (X : 1) | 20 |
| Power ratio 2 (X : 1) | 43 |
| Material | |
| Material | Aluminium |
| Undefined | |
| Size | 44 |
| Weight | |
| Weight (g) | 6200 |
| Warranty (yrs) | 3 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
