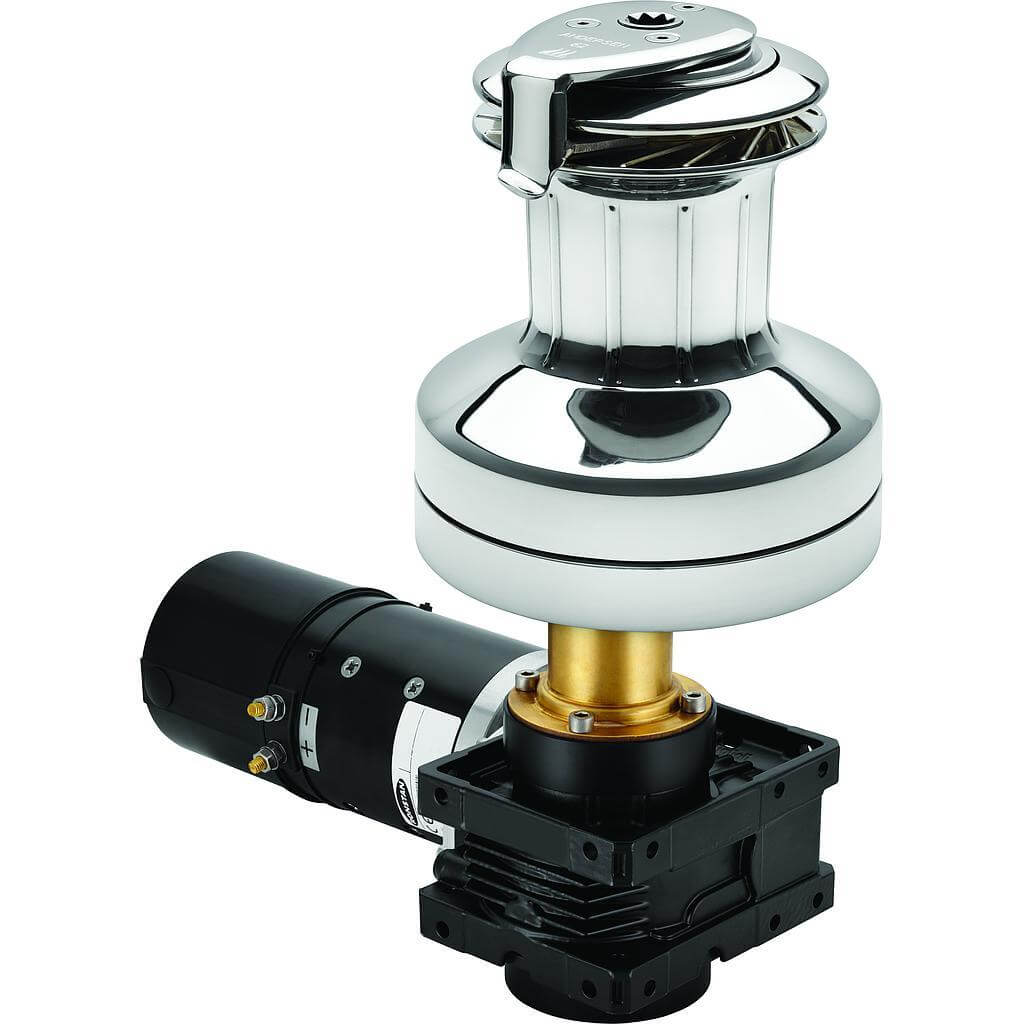

Andersen 62 1-Speed Electric (Horizontal) 12V Stainless Steel E1 Winch (2-Speed Manual)
MPN:
N/A
Brand:
Andersen
Specifications for Andersen 62 1-Speed Electric (Horizontal) 12V Stainless Steel E1 Winch (2-Speed Manual)
| Ropes | |
|---|---|
| Recommended line - Max Ø (mm) | 18 |
| Recommended line - Min Ø (mm) | 8 |
| Electrics | |
| Voltage (V) | 12 |
| Power (W) | 1500 |
| Speed (Motor) | 1-Speed |
| Boat | |
| Style | Horizontal |
| Dimensions | |
| B (mm) | 230 |
| D (mm) | 115 |
| H (mm) | 266 |
| J (mm) | 213 |
| K (mm) | 41 |
| L (mm) | 121 |
| N (mm) | 384 |
| S (mm) | 75 |
| Base Ø (mm) | 230 |
| Drum Ø (mm) | 115 |
| Height (mm) | 266 |
| Line entry height (mm) | 121 |
| Motor Depth (mm) | 213 |
| Motor Length (mm) | 384 |
| Winches | |
| Gear ratio 1 (X : 1) | 3.7 |
| Gear ratio 2 (X : 1) | 14.4 |
| Gears (Manual) | 2-Speed |
| Line recovery per rotation - 1st gear (mm) | 98 |
| Line recovery per rotation - 2nd gear (mm) | 25 |
| Line speed - 1st gear (m/min) | 14 |
| Power ratio 1 (X : 1) | 16 |
| Power ratio 2 (X : 1) | 62.6 |
| Pulling load - Max (kg) | 1500 |
| Skirt Details | Integrated |
| Material | |
| Material | Stainless Steel |
| Undefined | |
| Deck thickness Max (mm) | 41 |
| Size | 62 |
| Weight | |
| Weight (g) | 35000 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
|
Andersen - Product manual 58ST FS v2.0.F _ 62ST FS v2.0.F Full Stainless Self-Tailing Winches (A4).pdf
|
|
|
|
Winch Mounting Orientation.pdf
|
|
|
|
Winch Mounting Dimension Templates - E1 _ Compact Motor Below Deck Self Tailing Winches, Size 58 _ 62 - Paper size A3.pdf
Winch Mounting Dimension Templates - Paper size A3
|
|
|
|
Andersen Winch Selection Guide.pdf
|
|
|
|
WP - Winch selection guide.pdf
|
|
|
|
2020 Andersen Winches Catalogue.pdf
2020 Catalogue
|
