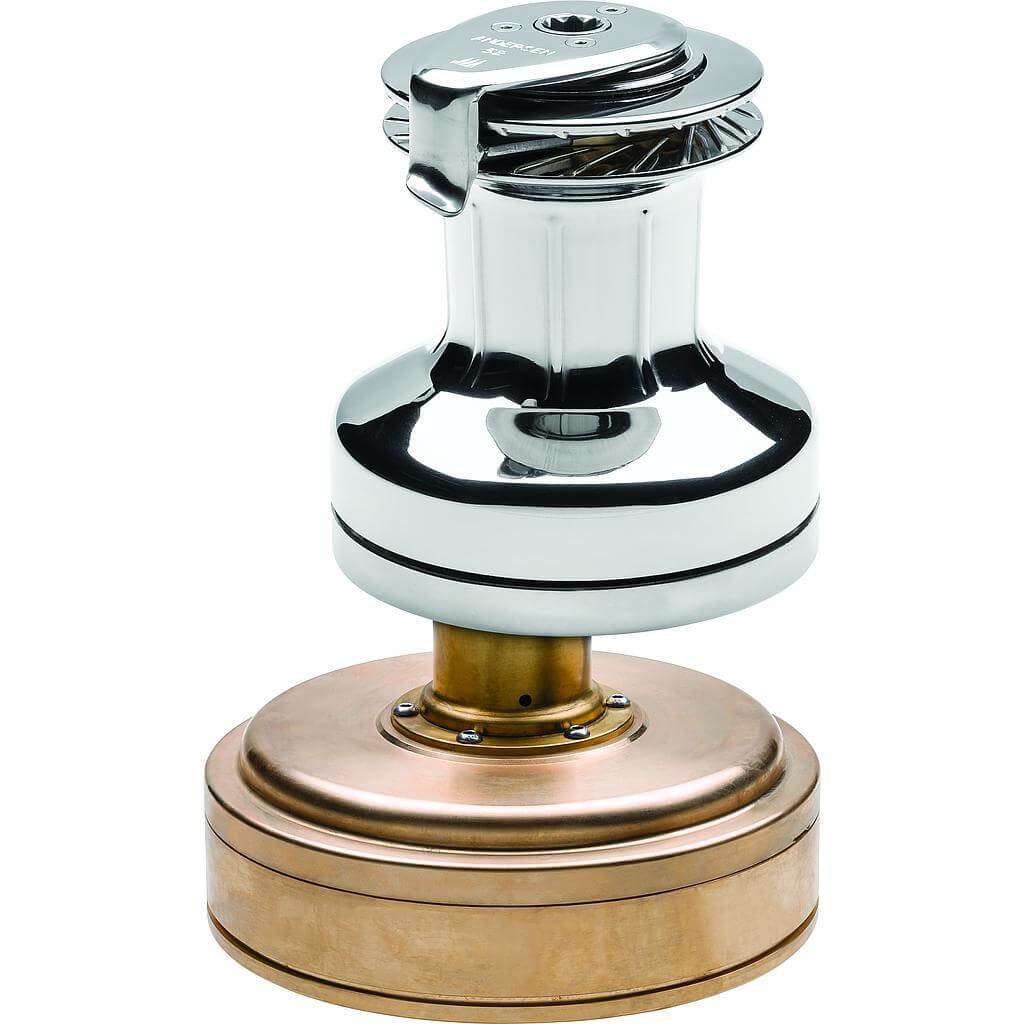

Andersen 52 Variable Speed Electric (Compact) 12V Stainless Steel Below Deck Winch (2-Speed Manual)
MPN:
N/A
Brand:
Andersen
Specifications for Andersen 52 Variable Speed Electric (Compact) 12V Stainless Steel Below Deck Winch (2-Speed Manual)
| Ropes | |
|---|---|
| Recommended line - Max Ø (mm) | 16 |
| Recommended line - Min Ø (mm) | 8 |
| Electrics | |
| Voltage (V) | 12 |
| Speed (Motor) | Variable Speed |
| Boat | |
| Style | Compact |
| Dimensions | |
| B (mm) | 200 |
| D (mm) | 100 |
| H (mm) | 227 |
| J (mm) | 179 |
| K (mm) | 56 |
| L (mm) | 106 |
| S (mm) | 250 |
| Base Ø (mm) | 200 |
| Drum Ø (mm) | 100 |
| Height (mm) | 227 |
| Line entry height (mm) | 106 |
| Motor Depth (mm) | 179 |
| Motor Length (mm) | 250 |
| Winches | |
| Gear ratio 1 (X : 1) | 3.2 |
| Gear ratio 2 (X : 1) | 10.5 |
| Gears (Manual) | 2-Speed |
| Line recovery per rotation - 1st gear (mm) | 98 |
| Line recovery per rotation - 2nd gear (mm) | 30 |
| Line speed - 1st gear (m/min) | 22 |
| Power ratio 1 (X : 1) | 16.2 |
| Power ratio 2 (X : 1) | 52.5 |
| Pulling load - Max (kg) | 1150 |
| Skirt Details | Integrated |
| Material | |
| Material | Stainless Steel |
| Undefined | |
| Deck thickness Max (mm) | 56 |
| Size | 52 |
| Weight | |
| Weight (g) | 30000 |
| Warranty (yrs) | 2 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
|
Andersen - Product manual 52ST v4.0 _ 52ST FS v4.0.F Black Trim and Full Stainless Self-Tailing Winches (A4).pdf
|
|
|
|
Winch Mounting Orientation.pdf
|
|
|
|
Winch Mounting Dimension Templates - E1 _ Compact Motor Below Deck Self Tailing Winches, Size 52 - Paper size A3.pdf
Winch Mounting Dimension Templates - Paper size A3
|
|
|
|
Andersen Winch Selection Guide.pdf
|
|
|
|
WP - Winch selection guide.pdf
|
|
|
|
2020 Andersen Winches Catalogue.pdf
2020 Catalogue
|
