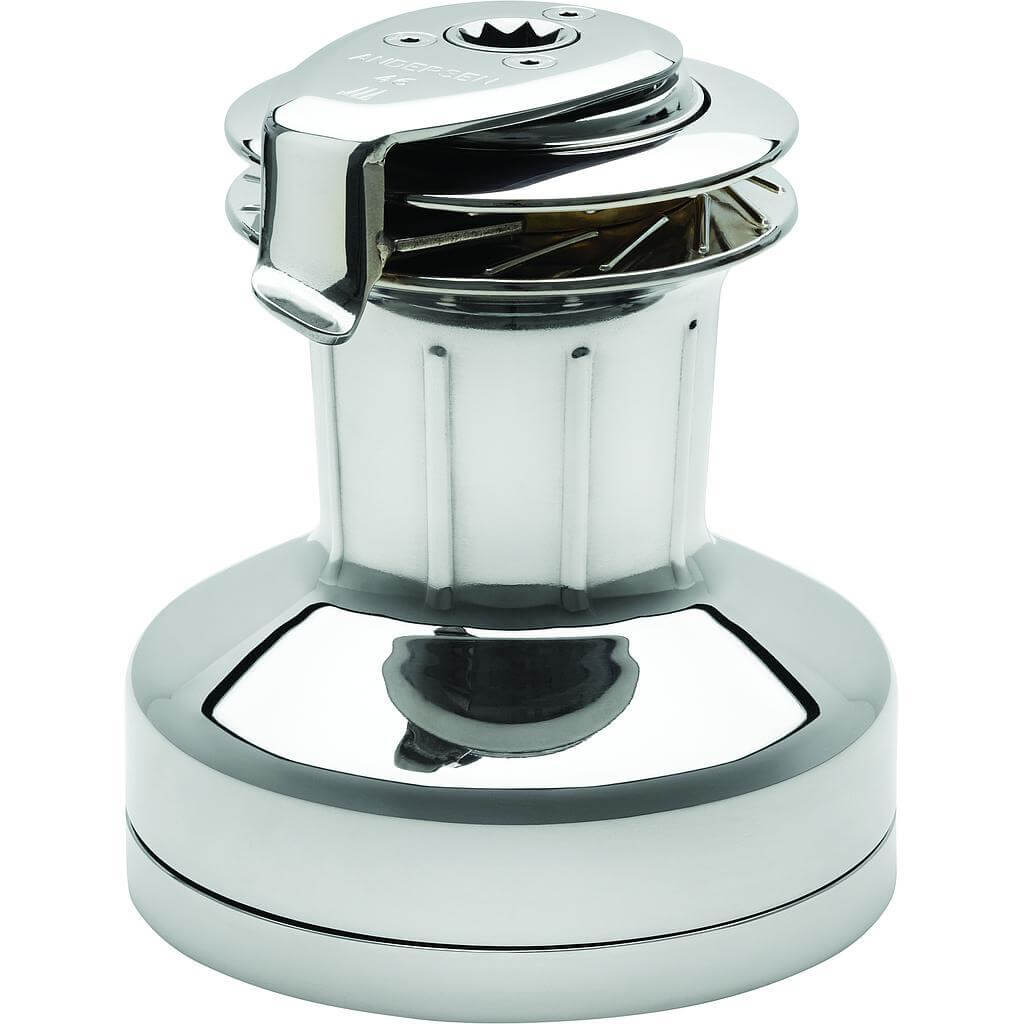

Specifications for Andersen 46 2-Speed Self-Tailing Stainless Steel Winch
| Ropes | |
|---|---|
| Recommended line - Max Ø (mm) | 14 |
| Recommended line - Min Ø (mm) | 8 |
| Boat | |
| Style | Self-Tailing |
| Dimensions | |
| A (mm) | 89 |
| B (mm) | 180 |
| C (mm) | 202 |
| D (mm) | 90 |
| Base Ø (mm) | 180 |
| Drum Ø (mm) | 89 |
| Height (mm) | 202 |
| Line entry height (mm) | 90 |
| Winches | |
| Gear ratio 1 (X : 1) | 2.8 |
| Gear ratio 2 (X : 1) | 8.4 |
| Gears (Manual) | 2-Speed |
| Line recovery per rotation - 1st gear (mm) | 100 |
| Line recovery per rotation - 2nd gear (mm) | 33 |
| Power ratio 1 (X : 1) | 15.7 |
| Power ratio 2 (X : 1) | 47.1 |
| Material | |
| Material | Stainless Steel |
| Undefined | |
| Size | 46 |
| Weight | |
| Weight (g) | 7800 |
| Warranty (yrs) | 3 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
|
Andersen - Product manual 46ST v5.0 _ 46ST FS v5.0.F _ 50ST v.2.0 _ 50ST FS v.2.0.F Black Trim and Full Stainless Self-Tailing Winches (A4).pdf
|
|
|
|
Winch Mounting Orientation.pdf
|
|
|
|
Winch Mounting Dimension Templates - Manual Self Tailing Winches, Size 46 _ 50 - Paper size A4.pdf
Winch Mounting Dimension Templates - Paper size A4
|
|
|
|
Andersen Winch Selection Guide.pdf
|
|
|
|
WP - Winch selection guide.pdf
|
|
|
|
2020 Andersen Winches Catalogue.pdf
2020 Catalogue
|
