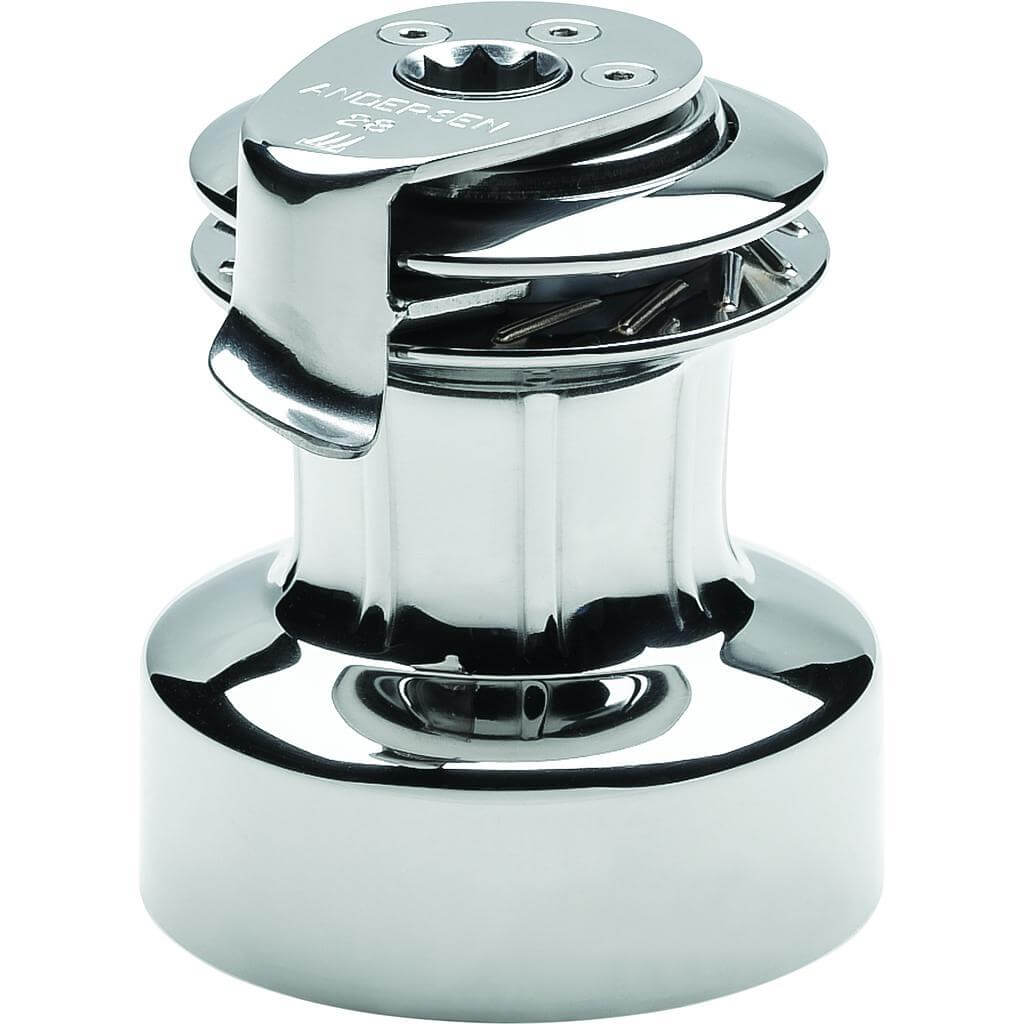

Specifications for Andersen 28 2-Speed Self-Tailing Stainless Steel Winch
| Ropes | |
|---|---|
| Recommended line - Max Ø (mm) | 14 |
| Recommended line - Min Ø (mm) | 8 |
| Boat | |
| Style | Self-Tailing |
| Dimensions | |
| A (mm) | 70 |
| B (mm) | 125 |
| C (mm) | 147 |
| D (mm) | 65 |
| Base Ø (mm) | 125 |
| Drum Ø (mm) | 70 |
| Height (mm) | 147 |
| Line entry height (mm) | 65 |
| Winches | |
| Gear ratio 1 (X : 1) | 1.3 |
| Gear ratio 2 (X : 1) | 4 |
| Gears (Manual) | 2-Speed |
| Power ratio 1 (X : 1) | 9.5 |
| Power ratio 2 (X : 1) | 28.6 |
| Material | |
| Material | Stainless Steel |
| Undefined | |
| Size | 28 |
| Weight | |
| Weight (g) | 3900 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
|
Andersen - Product manual 28ST v4.0 _ 28ST FS v4.0.F Black Trim and Full Stainless Self-Tailing Winches (A4).pdf
|
|
|
|
Winch Mounting Orientation.pdf
|
|
|
|
Winch Mounting Dimension Templates - Manual Self Tailing Winches, Size 28 _ 34 - Paper size A4.pdf
Winch Mounting Dimension Templates - Paper size A4
|
|
|
|
Andersen Winch Selection Guide.pdf
|
|
|
|
WP - Winch selection guide.pdf
|
|
|
|
2020 Andersen Winches Catalogue.pdf
2020 Catalogue
|
