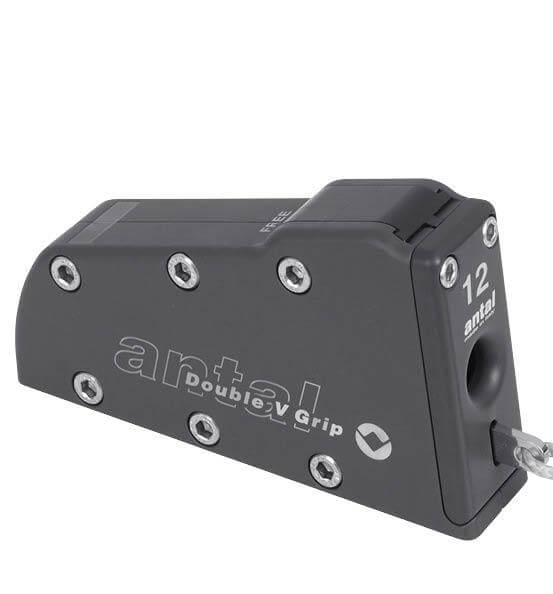

Antal DV Jammer For 12mm Lines Remote Control
The Antal DV Jammer For 12mm Lines Remote Control is designed for high-load rope systems on larger yachts, offering all the performance of the standard DV Jammer but with remote actuation. Operated via a control line instead of a manual slider, this version is ideal for mast-mounted setups where easy access is essential.
Antal’s patented Double V-Grip system ensures an even, four-sided grip on the rope. This reduces cover damage while providing maximum holding security for advanced high-strength ropes such as Dyneema® blends, as well as polyester double braids.
Key Features
- Remote operation – Controlled via a dedicated line, removing the need for direct access to a manual slider.
- Double V-Grip mechanism – Opposing V-shaped wedges deliver a four-sided grip that locks tighter as load increases.
- Safe Working Load (SWL) – Rated to 3,000 kg, ensuring dependable line security in demanding applications.
- Line compatibility – Optimised for 12 mm lines, balancing heavy load capacity with rope protection.
- Robust construction – Marine-grade alloy and stainless steel for strength and corrosion resistance offshore.
- Controlled release – Safe operation always supported by a winch.
Applications
Ideal for halyards, reefing lines, and high-load control lines on yachts in the 60–70 ft range, the 12 mm Remote-Control DV Jammer provides reliable, mast-mounted line control where space and accessibility are limited.
Alternatives
- DV Jammer Standard version – deck-mounted with manual slider control.
- DV Jammer Side-Mount version – mast or bulkhead installation with manual slider control.
Spezifikationen
| Width (mm) | 43 |
| Fixing hole Ø (mm) | 10 |
| Number of fixing holes | 4 |
| Length (mm) | 167 |
| Empfohlener max. Leinendurchmesser (mm) | 12 |
| Empfohlener min. Leinendurchmesser (mm) | 12 |
| Höhe (mm) | 108 |
| SWL (kg) | 3000 |
| Gewicht (g) | 1180 |
