Spinlock XAS Clutch - Drilling Guide.pdf
|
|
|
XAS Powerclutch Maintenance and Servicing Guide
|
|
|
|
SL-XAS-0612-1_Spinlock XAS Single Clutch_001.pdf
Spinlock XAS 6-12mm Single Clutch Technical Drawing
|
|
|
|
SL_Spinlock Powerclutch XAS Installation and Use EN FR DE_001.pdf
Spinlock Powerclutch XAS Installation and User Manual-French/German/English
|
|
|
|
SL_Spinlock Powerclutch XAS Accessory Intructions EN FR_001.pdf
Spinlock Powerclutch XAS Accessory Intructions Manual- French/English
|

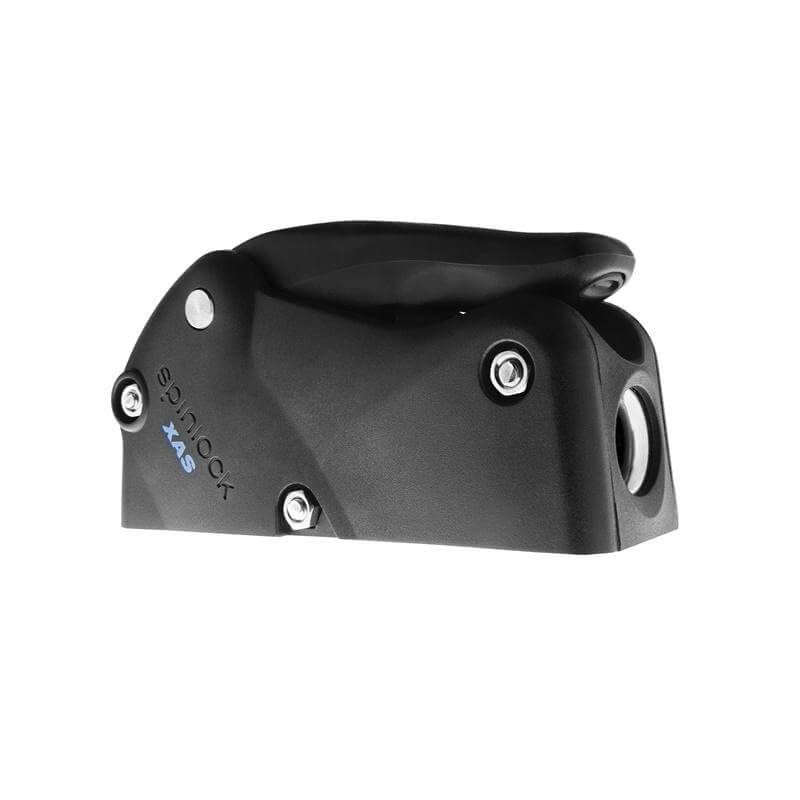

Spinlock's XAS Clutch is a multi-role clutch with excellent performance across a wide rope range. The XAS0612-1 gives optimised clutching and holding power on 6-12mm lines and is perfect for racing yachts up to to 27’ and cruising yachts up to 35’. The clutch is line-friendly with easy-access handle for effortless release. The XAS0612-1 can be converted to side-mountable using the XAS-SMNT side mounting kit. It has replaceable parts, is easy to upgrade and maintain and is supplied with handle labels. Installation requires 2 x M6 CSK fasteners (not supplied). The standard XAS0612 can be converted for small diameter lines by using base module XAS-BASE0408.
Specifications
| Total width (mm) | 39 |
| Recommended line - Max Ø (mm) | 12 |
| Recommended line - Min Ø (mm) | 6 |
| Total height (mm) | 69 |
| Total length (mm) | 134 |
| Colour* | Black |
| Mounting fasteners | 2 x M6 CSK Head (not supplied) |
| Line entry height (mm) | 18 |
| SWL (kg) | 575 |
| Warranty (yrs) | 5 |
| Weight (g) | 270 |
