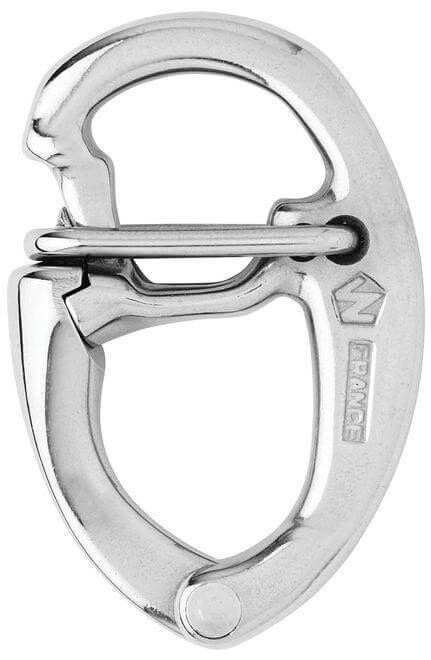

Specifications for Wichard Tack Release Snap Shackle - L:70mm
| Boat | |
|---|---|
| Style | Fixed Bail |
| Load | |
| SWL (kg) | 1280 |
| NBL (kg) | 2300 |
| Dimensions | |

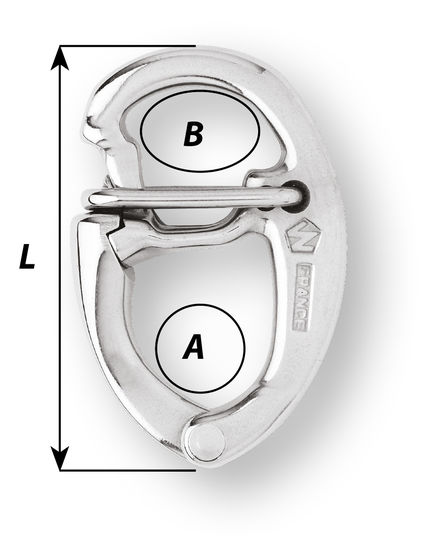

| A (mm) | 20 |
| B (mm) | 25 |
| Total length (mm) | 70 |
| Material | |
| Material | Stainless Steel |
| Material Grade | AISI 630 (17-4 / HR) |
| Compatibility | |
| Bail type | Fixed eye |
| Weight | |
| Weight (g) | 95 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
Wichard's tack snap shackle can be fully integrated into the sail with webbing. The shackle can allow the tack to be brought to the edge of the deck, enhancing it's performance.
This range of shackles is producted with High Resistance (HR) grade stainless steel, a corrosion resistant hardened material favoured for marine environments.
