Specifications for Wichard Snap Shackle/Thimble Swiv - L:110mm
| Boat | |
|---|---|
| Style | Swivel Bail (Small) |
| Load | |
| SWL (kg) | 1280 |
| NBL (kg) | 2400 |

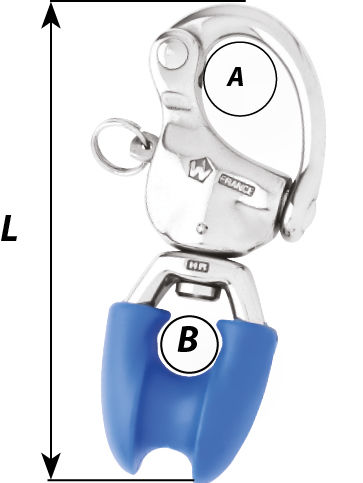

| Dimensions | |
| A (mm) | 21 |
| B (mm) | 14 |
| Total length (mm) | 110 |
| Material | |
| Material | Stainless Steel |
| Material Grade | AISI 630 (17-4 / HR) |
| Compatibility | |
| Bail type | Thimble eye |
| Weight | |
| Weight (g) | 150 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.

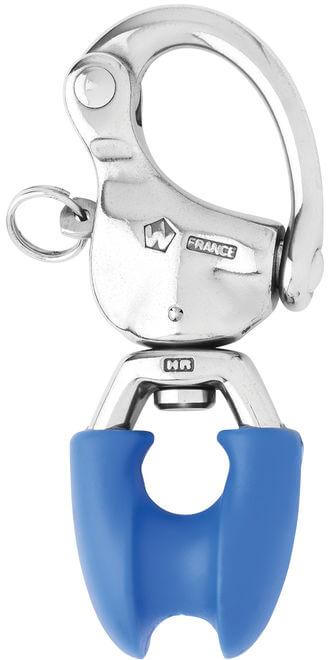

Wichard's snap shackle with thimble eye combines a snapchackle with a thimble which allows the line, halyard for example, to be spliced directly onto the shackle. The swivel allows the shackle to rotate freely and the plunger pin mechanism is pulled to release.
This range of shackles is producted with High Resistance (HR) grade stainless steel, a corrosion resistant hardened material favoured for marine environments.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Boat | |
|---|---|
| Style | Swivel Bail (Small) |
| Load | |
|---|---|
| SWL (kg) | 1280 |
| NBL (kg) | 2400 |
| Dimensions | |
|---|---|
| A (mm) | 21 |
| B (mm) | 14 |
| Total length (mm) | 110 |
| Material | |
|---|---|
| Material | Stainless Steel |
| Material Grade | AISI 630 (17-4 / HR) |
| Compatibility | |
|---|---|
| Bail type | Thimble eye |
| Weight | |
|---|---|
| Weight (g) | 150 |
