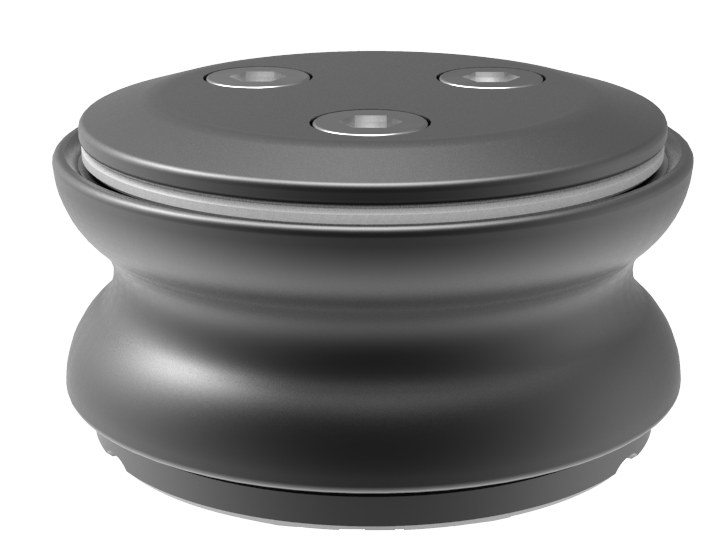

Specifications for UBI Maior Cross Over CO80
| Ropes | |
|---|---|
| Recommended line - Max Ø (mm) | 24 |
| Boat | |
| Load | |
| SWL (kg) | 3500 |
| NBL (kg) | 7000 |
| Blocks | |
| Sheave material | Delrin® |

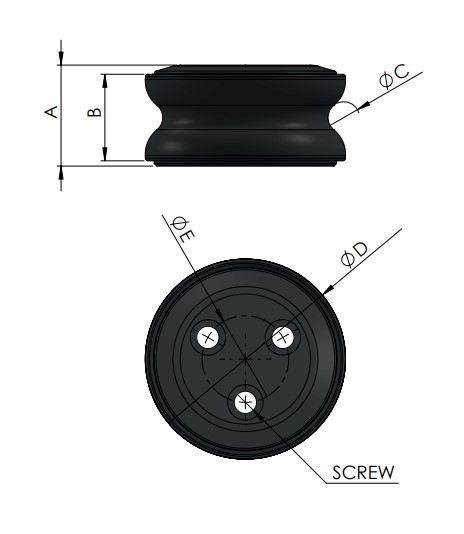

| Dimensions | |
| A (mm) | 38 |
| B (mm) | 33 |
| C (mm) | 14 |
| D (mm) | 80 |
| E (mm) | 44 |
| Height (mm) | 38 |
| Sheave Ø (mm) | 80 |
| Material | |
| Material Grade | 6082-T6 |
| Compatibility | |
| Mounting fasteners | 3 x M8 |
| Weight | |
| Weight (g) | 363 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
