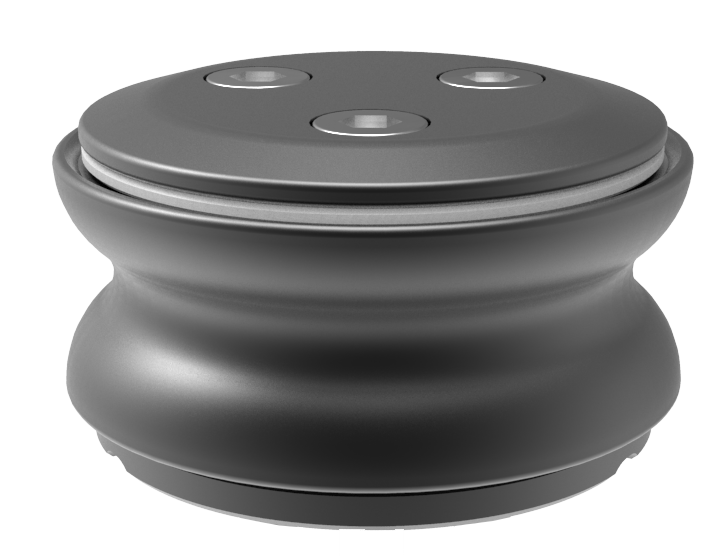

Specifications for UBI Maior Cross Over CO100
| Ropes | |
|---|---|
| Recommended line - Max Ø (mm) | 40 |
| Boat | |
| Load | |
| SWL (kg) | 5200 |
| NBL (kg) | 10400 |
| Blocks | |
| Sheave material | Delrin® |

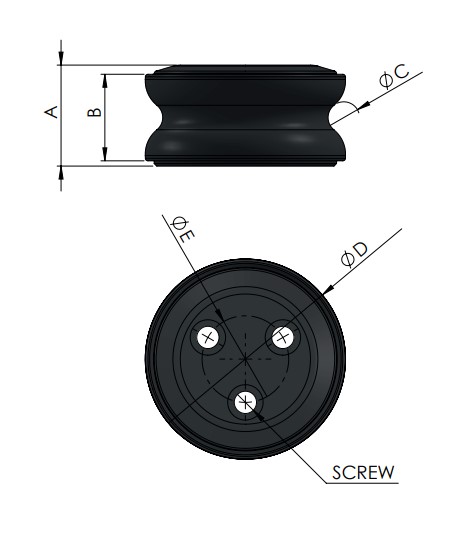

| Dimensions | |
| A (mm) | 50 |
| B (mm) | 43 |
| C (mm) | 20 |
| D (mm) | 100 |
| E (mm) | 44 |
| Height (mm) | 50 |
| Sheave Ø (mm) | 100 |
| Material | |
| Material Grade | 6082-T6 |
| Compatibility | |
| Mounting fasteners | 4 x M8 (supplied) |
| Weight | |
| Weight (g) | 450 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
