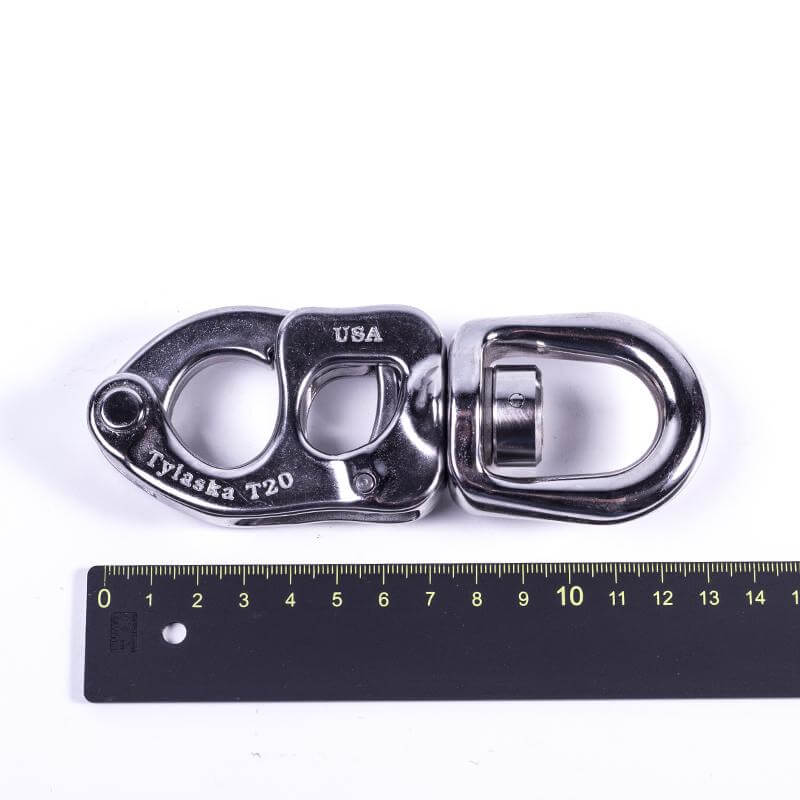

Specifications for Tylaska T20S Standard bails snap shackle
| Boat | |
|---|---|
| Recommended Boat size - Max (ft) | 70 |
| Recommended Boat size - Min (ft) | 40 |
| Style | Swivel Bail (Small) |
| Load | |
| SWL (kg) | 4540 |
| NBL (kg) | 9070 |
| Dimensions | |
| A (mm) | 25.1 |
| B (mm) | 25.1 |
| C (mm) | 134 |
| Material | |
| Material | Stainless Steel |
| Material Grade | 17-4PH SS |
| Weight | |
| Weight (g) | 360 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
The Tylaska T20 Snap Shackle is a larger shackle designed for mid to large sized boats. They are popular on the America's Cup racing circuit. The T-20 has a SWL of 4,545kg and Standard bail configurations weigh only 338g. Ideal for 40 to 70 foot sailboats. Standard Bails provide ample room for attaching a line while keeping weight and overall shackle length to a minimum. Ideal for halyards and sheets.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Boat | |
|---|---|
| Recommended Boat size - Max (ft) | 70 |
| Recommended Boat size - Min (ft) | 40 |
| Style | Swivel Bail (Small) |
| Load | |
|---|---|
| SWL (kg) | 4540 |
| NBL (kg) | 9070 |
| Dimensions | |
|---|---|
| A (mm) | 25.1 |
| B (mm) | 25.1 |
| C (mm) | 134 |
| Material | |
|---|---|
| Material | Stainless Steel |
| Material Grade | 17-4PH SS |
| Weight | |
|---|---|
| Weight (g) | 360 |
