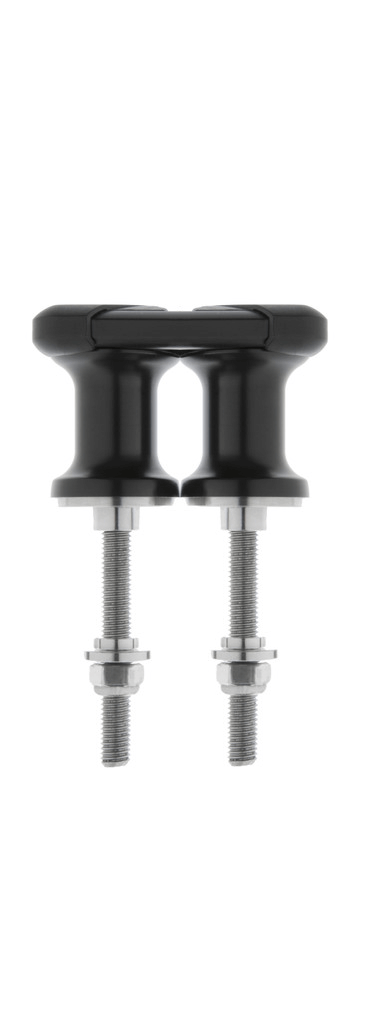

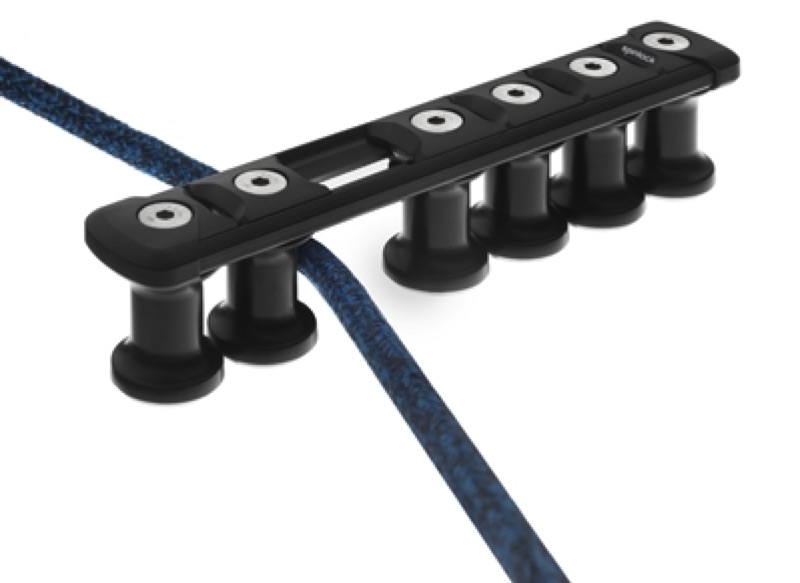

Spinlock TSR20 – 2 Sheave Organiser (Standard and Low Profile)
The Spinlock TSR20 2 Sheave Organiser is a compact, high-integrity aft organiser designed specifically for diverting lines from clutches, jammers, and other high-load rope control hardware. Unlike traditional deck organisers, the TSR range is engineered to handle extreme deflection loads while maintaining precise line guidance, making it ideal for performance yachts with dense rope layouts and complex routing requirements.

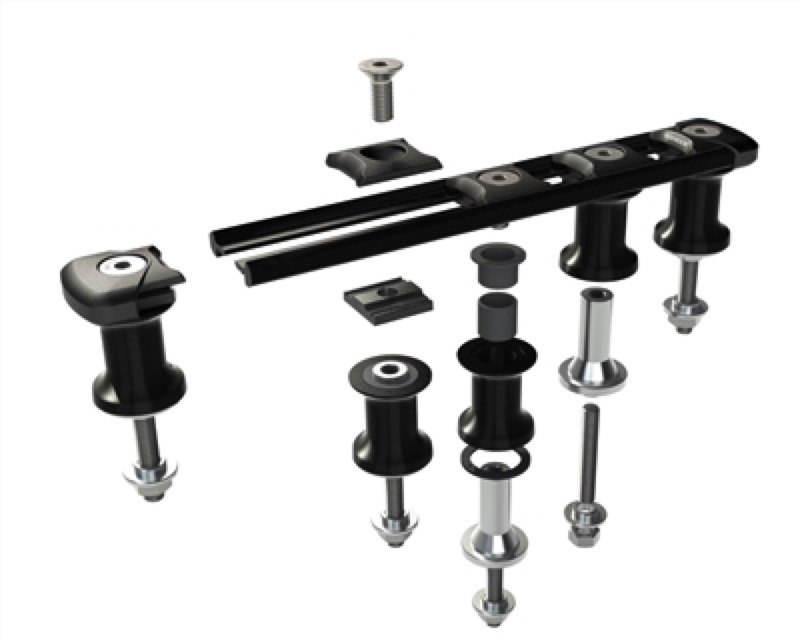

The TSR20 uses 20 mm alloy sheaves, each rotating on plain bearings to provide reliable, predictable performance under load. The tulip-shaped sheave geometry helps to reduce friction during vertical deflection, while the modular, open-rail design allows sheaves to be repositioned to achieve custom spacing. Fixed sheave inserts can be added to further increase allowable deflection loads where required.
Two versions are available: the Standard TSR20 and the Low Profile TSR20L, the latter designed for installations where height is restricted, such as mast bases, in-deck tunnels, or areas with limited clearance.
Key Features
• Designed as an aft organiser for diverting lines from clutches and jammers
• 20 mm alloy sheaves with plain bearings for dependable performance
• Alloy top rail and modular design allow sheaves to be moved or re-spaced
• Tulip-shaped geometry reduces friction from vertical line deflection
• Fixed sheave inserts can be added to increase deflection load capability
• Standard and Low Profile versions for installation flexibility
• Simple handling of endless lines for easy threading and maintenance
• Central shaft distributes load cleanly into deck laminate
• Titanium parts available for weight-critical applications
• Custom sheave spacing, mixed sheave sizes, and extended configurations available on request
Load Ratings – TSR20
• Maximum individual 20 mm sheave load: 1500 kg
• Total combined sheave load: 750 kg × number of sheaves
• 30° deflected rope load: 3000 kg
• 60° deflected rope load: 1500 kg
These ratings make the TSR20 particularly suitable for highly loaded control lines requiring moderate deflection angles.
Applications on Sailing Yachts
The TSR20 2 Sheave organiser is ideal for compact, high-load routing tasks such as:
• Diverting halyards, reefing lines, or tack lines from clutches to winches
• Managing high-load control lines in crowded rope runs
• Constrained spaces where a small, strong aft organiser is required
• Mast-base and tunnel installations using the low-profile TSR20L variant
• Performance yachts needing optimised sheave spacing or custom configurations
The TSR20 provides a strong, modular, and highly adaptable solution for yachts requiring precise, reliable line diversion under elevated working loads.
Specifications
| Option* | Standard or Low Profile |
| Total width (mm) | 41 |
| Recommended line - Max Ø (mm) | 13 |
| Total height (mm) | 52 |
| Fixing hole spacing (mm) | 34 |
| Total length (mm) | 74 |
| Sheave Ø (mm) | 21 |
| Mounting fasteners | M8 CSK Head (supplied) |
| Sideplate material | Alloy |
| Sheave material | Alloy |
| SWL (kg) | 1500 |
| NBL (kg) | 3000 |
| Weight (g) | 319 |
