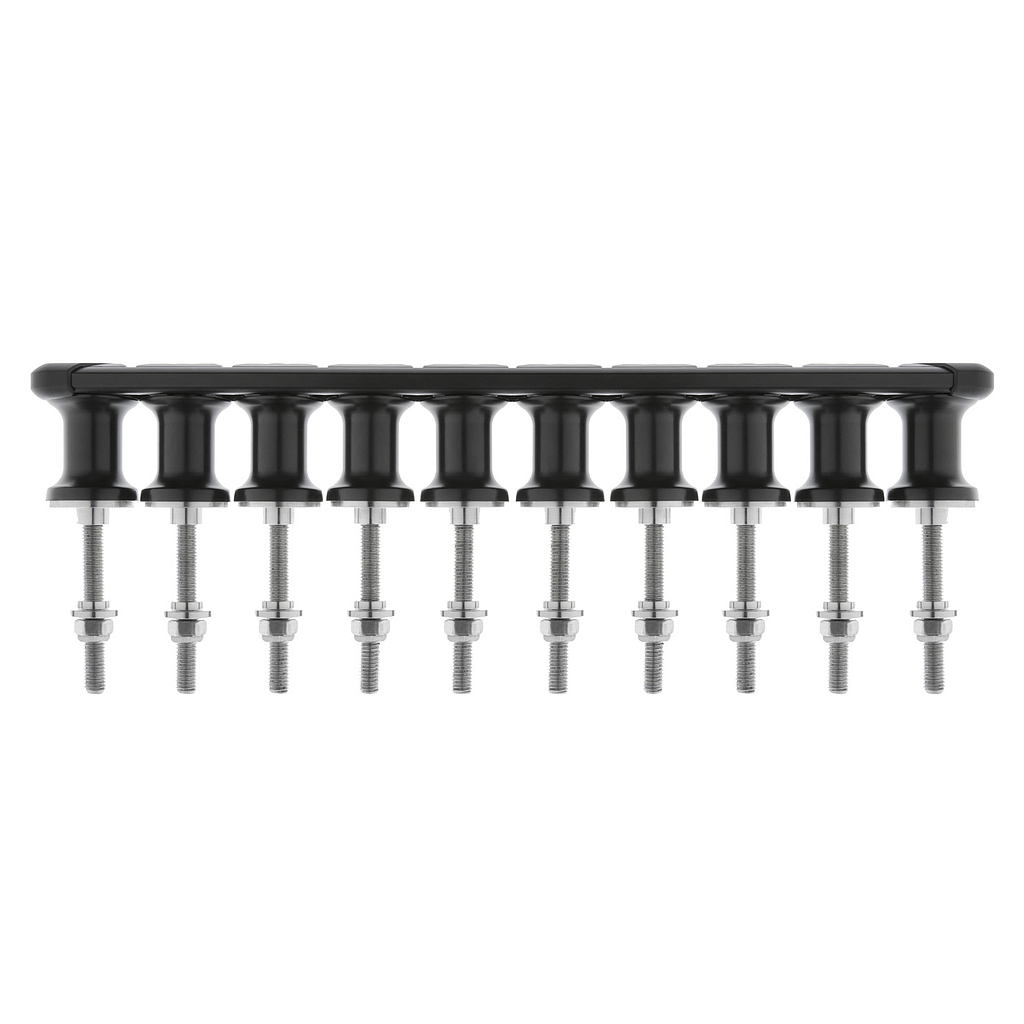

Spinlock TSR20 – 10 Sheave Organiser (Standard and Low Profile)

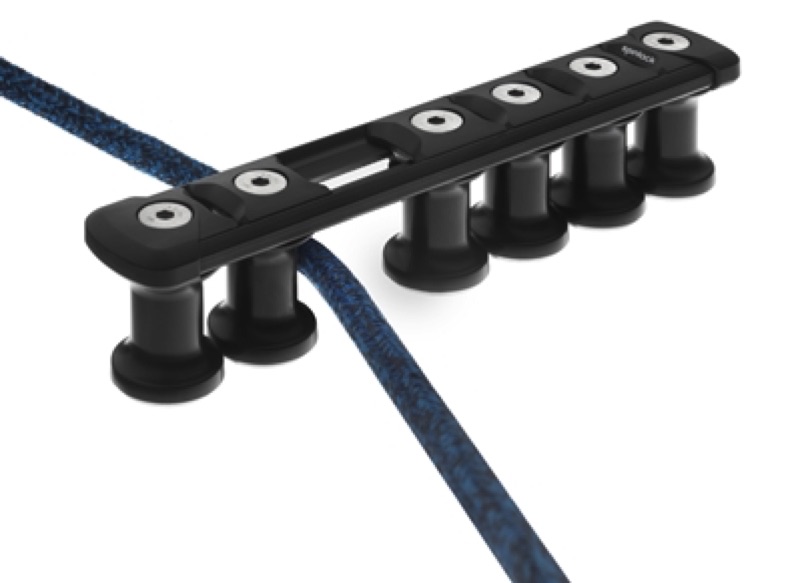

The Spinlock TSR20 10 Sheave Organiser is the highest-capacity TSR20 model, designed for yachts requiring very large numbers of high-load line diversions from clutches and jammers. Featuring 20 mm alloy sheaves and a fully modular rail system, it allows complete customisation of sheave spacing and configuration.
The tulip-shaped sheave profile reduces friction during vertical movement, improving fairness and line longevity. The TSR20L low-profile version suits installation zones with tight vertical clearance, while fixed sheave inserts can be added to increase permissible deflection loads for extreme applications.
Key Features
• Ten 20 mm alloy sheaves for maximum routing capacity
• High-load aft organiser for clutch and jammer outputs

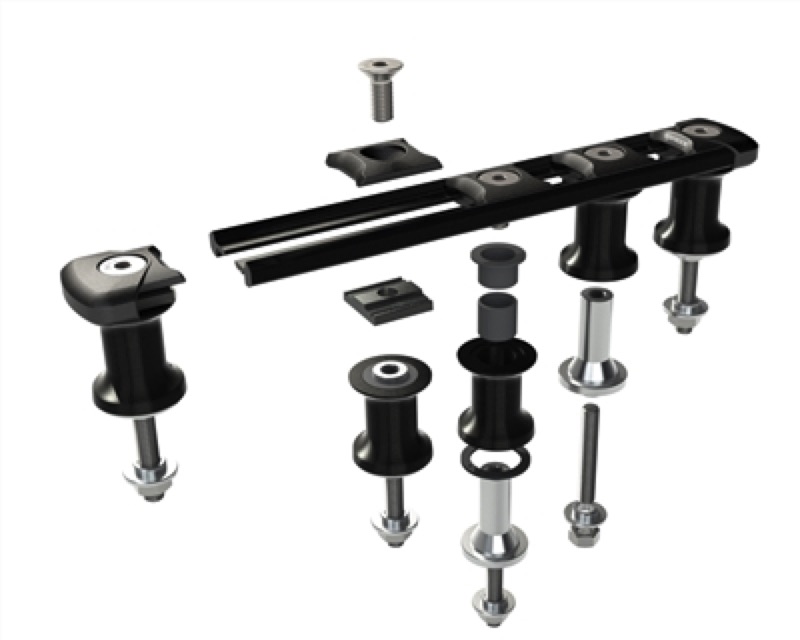

• Fully modular spacing on alloy top rail
• Reduced vertical friction via tulip-shaped sheaves
• Standard and Low Profile variants
• Optional fixed sheave inserts
• Endless line compatibility
• Titanium parts available
• Custom spacing and sheave configurations possible
Load Ratings – TSR20
• Individual sheave: 1500 kg
• Combined load: 750 kg × number of sheaves
• 30° deflection: 3000 kg
• 60° deflection: 1500 kg
Applications on Sailing Yachts
• Extensive halyard and control line systems on large performance yachts
• High-load deck layouts requiring tailored sheave spacing
• Mast-base and tunnel installations with limited height
• Customised multi-line organiser banks
Specifications
| Option* | Standard or Low Profile |
| Total width (mm) | 41 |
| Recommended line - Max Ø (mm) | 13 |
| Total height (mm) | 52 |
| Fixing hole spacing (mm) | 34 |
| Total length (mm) | 346 |
| Sheave Ø (mm) | 21 |
| Mounting fasteners | M8 CSK Head (supplied) |
| Sideplate material | Alloy |
| Sheave material | Alloy |
| SWL (kg) | 1500 |
| NBL (kg) | 3000 |
| Weight (g) | 1582 |
