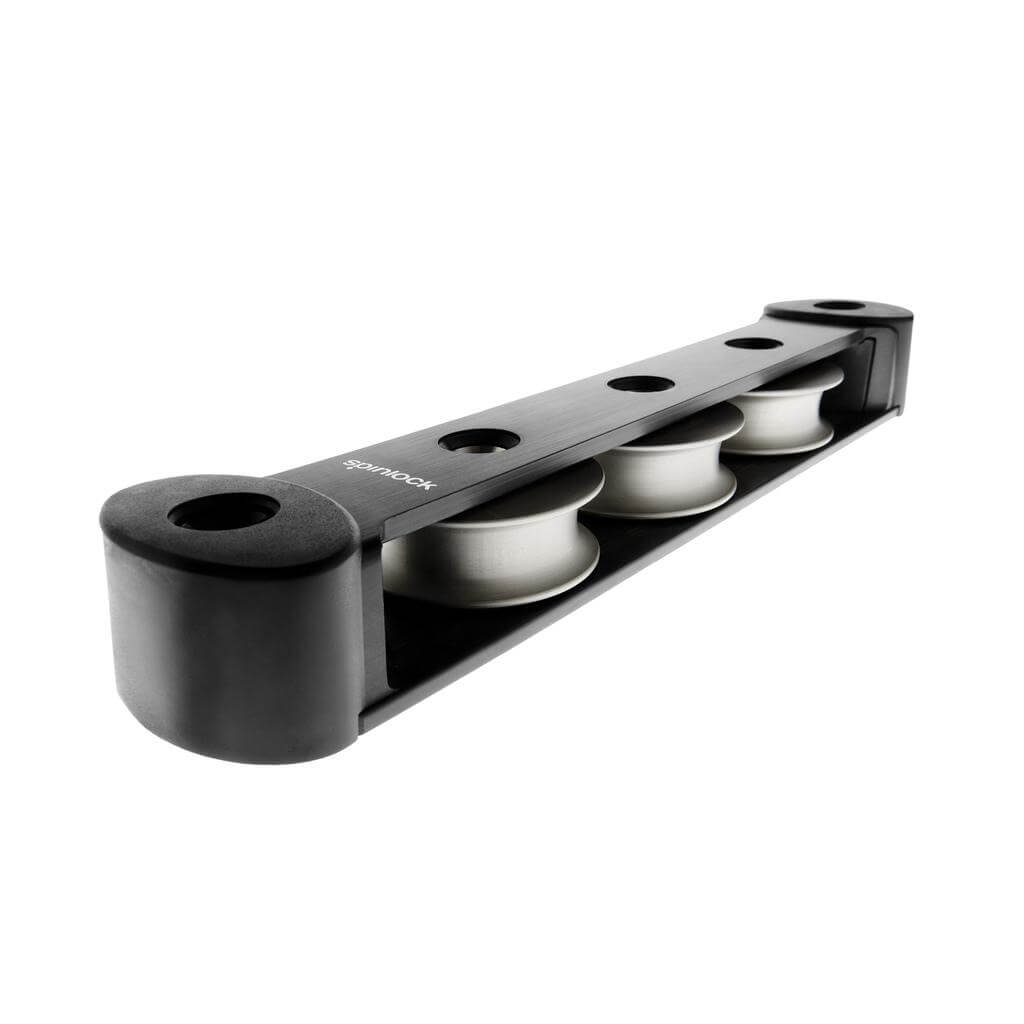

Spinlock TC50 – 3 Sheave High Load Deck Organiser (Symmetric and Asymmetric)
The Spinlock TC50 3 Sheave High Load Deck Organiser is engineered for yachts that require smooth, reliable routing of three heavily-loaded control lines. As part of Spinlock’s true high-load organiser family, the TC50 offers a Safe Working Load of 1500 kg and utilises robust 50 mm alloy sheaves that deliver exceptional strength, heat resistance, and durability under high halyard and control line tensions.
The alloy sheaves provide a significant step up from the composite designs used in the T25, T38, and T50 ranges, ensuring superior performance in demanding trimming and hoisting situations. Combined with an efficient bearing surface, the TC50 minimises friction and helps preserve halyard life even under repeated cycling and peak load events.
The Vari-camber base automatically follows the curve of the deck for a secure installation with improved sealing. Integral end fairings protect lines during side loading, maintaining fair, safe entry angles across varied deck geometries. Both Symmetric and Asymmetric variants are available, with the Asymmetric body reducing deck footprint and weight.
The TC50 shares mounting geometry with the T50 range, allowing the two to be stacked together to create mixed-load organiser banks.
Key Features
• High-load organiser with three 50 mm alloy sheaves
• Efficient bearing surface reduces friction under extreme loads
• Robust alloy sheaves offer superior wear and heat resistance
• Integral end fairings support safe side loading
• Symmetric and Asymmetric configurations
• Asymmetric version minimises footprint and weight
• Fully compatible for stacking with T50 organisers
• Vari-camber base conforms to curved deck surfaces
• Safe Working Load (SWL): 1500 kg
Applications on Sailing Yachts
Ideal for performance yachts handling multiple high-load lines. Typical uses include:
• Main, jib, or staysail halyards under significant load
• Tack line or code sail halyards
• High-load reefing, outhaul, and cunningham lines
• Heavy vang control systems
• Mixed-load organiser stacks combining TC50 and T50 units
• Larger yachts or high-performance cruisers requiring maximum durability
Specifications
| Option* | Symmetric or Asymmetric |
| Total width (mm) | 52 |
| Recommended line - Max Ø (mm) | 14 |
| Total height (mm) | 33 |
| Fixing hole spacing (mm) | 56 |
| Total length (mm) | 257 |
| Sheave Ø (mm) | 50 |
| Mounting fasteners | M8 CSK Head (supplied) |
| Sideplate material | Composite |
| Sheave material | Alloy |
| SWL (kg) | 1500 |
| NBL (kg) | 3000 |
| Weight (g) | 730 |
