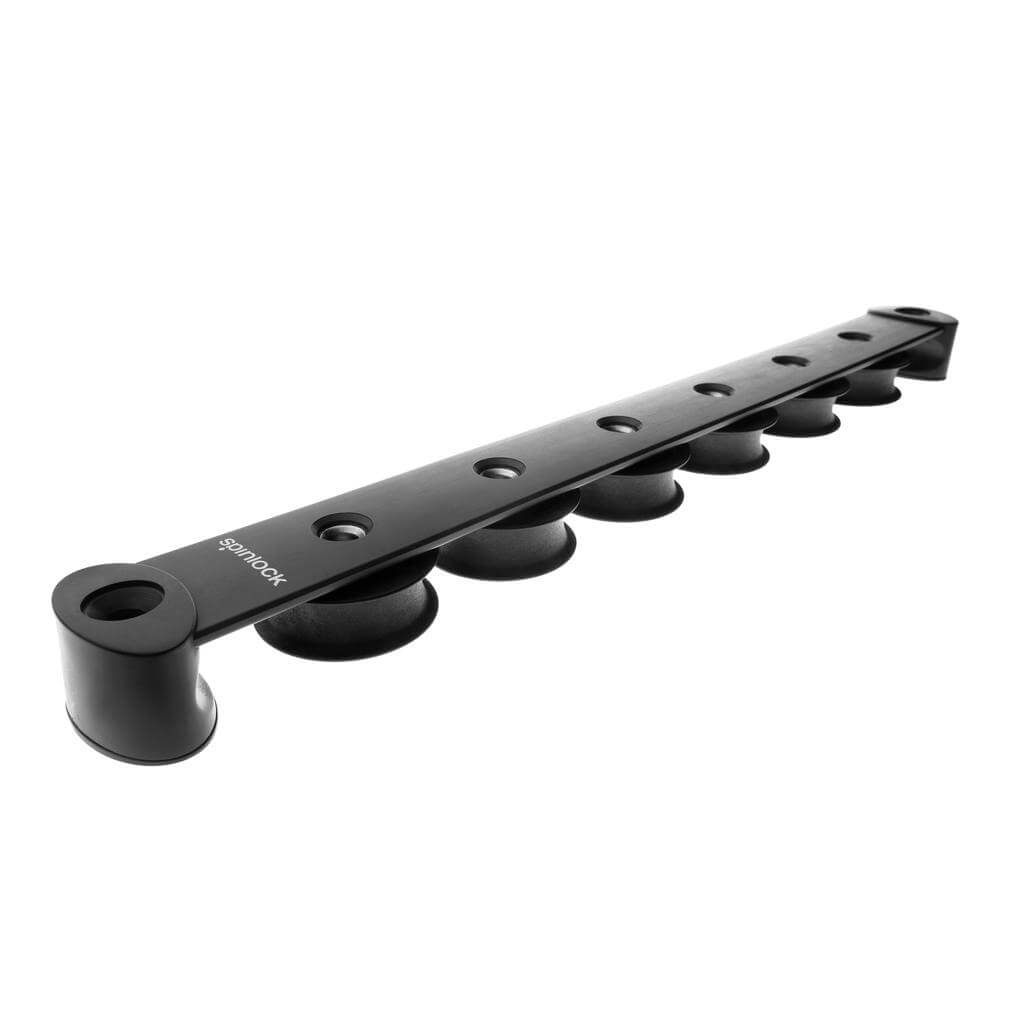

Spinlock T50 – 6 Sheave Deck Organiser (Symmetric and Asymmetric)
The Spinlock T50 6 Sheave Deck Organiser is the largest unit in the T50 family, engineered for yachts requiring maximum line-handling capacity under high working loads. With 50 mm sheaves and an efficient bearing surface, the organiser minimises friction, improves trimming responsiveness, and supports long-term halyard durability.
The Vari-camber base adapts to curved deck surfaces, ensuring cleaner installation and improved sealing. Integral end fairings allow safe side loading, managing line entry and exit angles cleanly. Both Symmetric and Asymmetric versions are available, with the Asymmetric body reducing weight and overall footprint.
The T50 can be stacked to build large multi-line banks and is also fully compatible for stacking on a TC50 organiser. This allows yachts to combine the T50’s 1000 kg capability with the TC50’s 1500 kg high-load performance within a shared system footprint.
Key Features
• Six 50 mm sheaves for maximum line capacity
• Efficient bearing surface reduces friction and winch effort
• Integral end fairings support safe side loading
• Symmetric and Asymmetric variants
• Asymmetric version reduces deck footprint and weight
• Stackable design for creating large multi-line organiser banks
• Compatible for stacking on TC50 organisers
• Vari-camber base follows curved deck surfaces
• Safe Working Load (SWL): 1000 kg
Applications on Sailing Yachts
Best suited to yachts with advanced or extensive sail-handling systems. Typical uses include:
• Full suites of halyards alongside topping lift or staysail controls
• Multiple reefing lines, outhaul, cunningham, and tack line management
• Routing furling line systems for headsails and code sails
• Large control layouts on performance cruisers and race yachts
• Mixed-load organiser stacks combining T50 and TC50 modules
Specifications
| Option* | Symmetric or Asymmetric |
| Total width (mm) | 50 |
| Recommended line - Max Ø (mm) | 14 |
| Total height (mm) | 30 |
| Fixing hole spacing (mm) | 56 |
| Total length (mm) | 420 |
| Sheave Ø (mm) | 50 |
| Mounting fasteners | M8 CSK Head (not supplied) |
| Sideplate material | Composite |
| Sheave material | Composite |
| SWL (kg) | 1000 |
| NBL (kg) | 2000 |
| Weight (g) | 490 |
