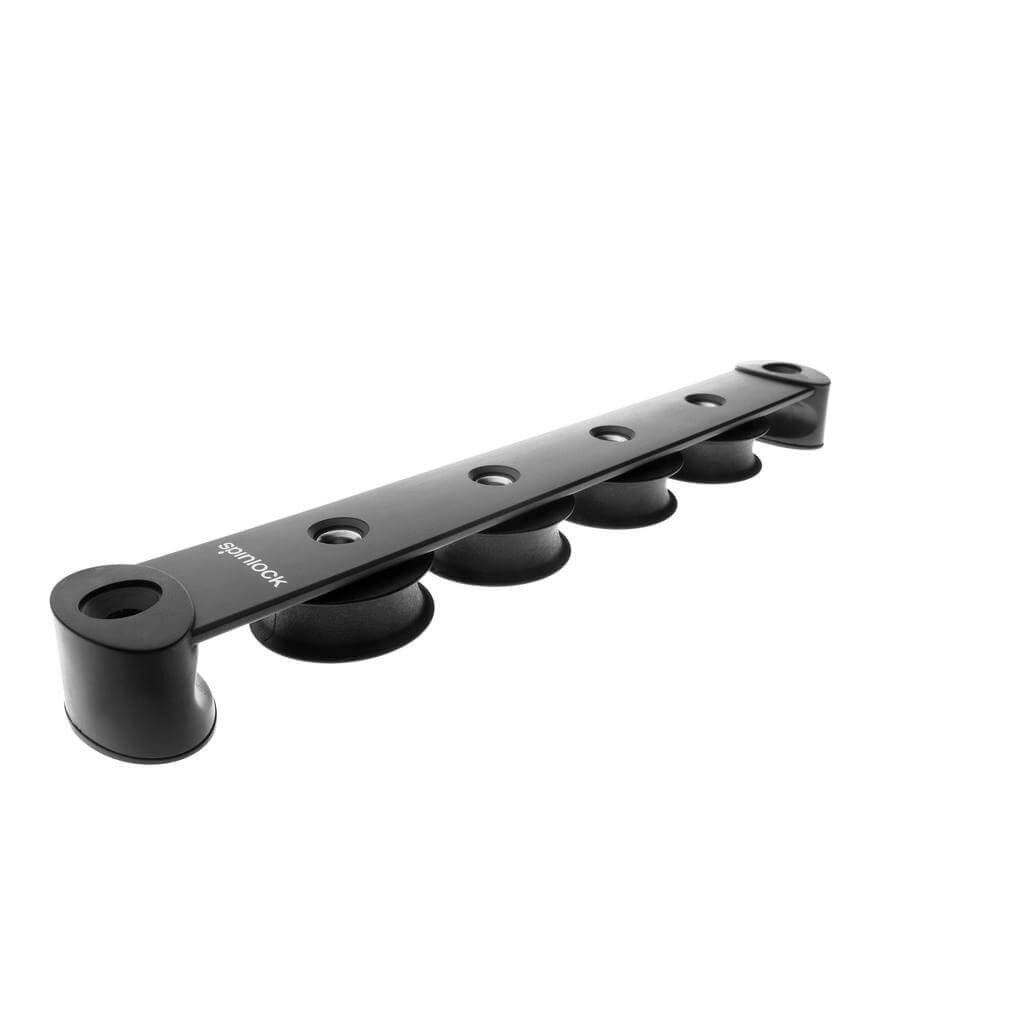

Spinlock T50 – 4 Sheave Deck Organiser (Symmetric and Asymmetric)
The Spinlock T50 4 Sheave Deck Organiser offers a high-load solution for yachts needing efficient routing of four control lines in a compact footprint. With 50 mm sheaves and an advanced, low-friction bearing surface, the organiser reduces winch load and increases the lifespan of heavily used halyards and adjustment lines.
The Vari-camber base conforms naturally to curved deck surfaces for improved installation sealing and alignment. Integral end fairings protect lines during side loading and support consistent line fairness. Available in Symmetric and Asymmetric configurations, the Asymmetric body provides useful weight savings and a smaller deck footprint.
Designed for modularity, the T50 can be stacked for added capacity and is compatible for stacking directly onto the TC50 range. This allows riggers to combine the T50’s 1000 kg capability with the TC50’s higher 1500 kg SWL where load distribution varies across a deck plan.
Key Features
• Four 50 mm sheaves for multi-line routing
• Low-friction bearing surface reduces winch effort
• Integral end fairings provide safe side loading
• Symmetric or Asymmetric variants
• Asymmetric version minimises weight and deck footprint
• Stackable for increased capacity
• Can be stacked directly on TC50 organisers
• Vari-camber base aligns with curved deck surfaces
• Safe Working Load (SWL): 1000 kg
Applications on Sailing Yachts
Ideal for yachts with multiple halyards and key control lines. Common uses include:
• Main, jib, gennaker, and spinnaker halyards
• Reefing lines combined with vang and outhaul controls
• Routing furling line take-offs alongside primary sail controls
• Increasing line capacity through stacking
• Mixed-load deck plans pairing T50 and TC50 organisers
Specifications
| Option* | Symmetric or Asymmetric |
| Total width (mm) | 50 |
| Recommended line - Max Ø (mm) | 14 |
| Total height (mm) | 30 |
| Fixing hole spacing (mm) | 56 |
| Total length (mm) | 308 |
| Sheave Ø (mm) | 50 |
| Mounting fasteners | M8 CSK Head (not supplied) |
| Sideplate material | Composite |
| Sheave material | Composite |
| SWL (kg) | 1000 |
| NBL (kg) | 2000 |
| Weight (g) | 340 |
