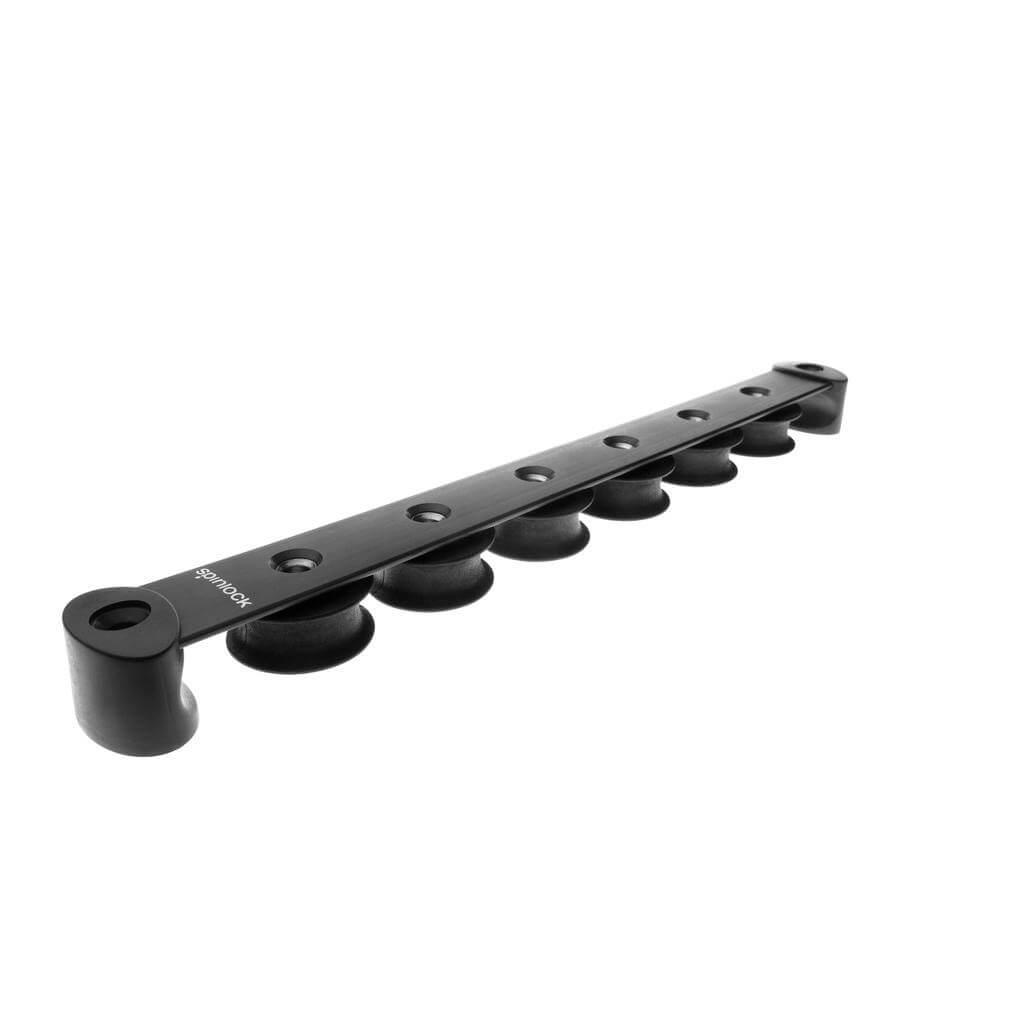

Spinlock T38 – 6 Sheave Deck Organiser (Symmetric and Asymmetric)
The Spinlock T38 6 Sheave Deck Organiser is the largest in the T38 family, engineered for yachts requiring maximum line-handling capacity in a compact footprint. Equipped with 38 mm sheaves and a highly efficient bearing surface, it reduces friction, improves trimming responsiveness, and helps prolong halyard life under frequent use.
The Vari-camber base ensures a natural fit on curved deck and coachroof surfaces, aiding sealing and reducing installation work. Integral end fairings allow safe side loading and manage the entry and exit path of lines cleanly. Available in Symmetric and Asymmetric versions, with the Asymmetric model providing a reduced footprint and lower weight.
The T38 organiser can be stacked to increase overall sheave count where space is particularly limited.
Key Features
• Six 38 mm sheaves for maximum multi-line capacity
• Efficient bearing surface lowers friction and winch effort
• Integral end fairings for safe side loading and smooth line entry
• Vari-camber base conforms to curved deck surfaces
• Symmetric and Asymmetric variants
• Asymmetric version offers weight and footprint reduction
• Stackable design for expanding line capacity
• Safe Working Load (SWL): 600 kg
Applications on Sailing Yachts
A robust solution for yachts with extensive sail-handling systems. Common applications include:
• Full suites of halyards for main, jib, gennaker, spinnaker, and topping lift
• Multiple reefing, outhaul, cunningham, and tack line controls
• Furling line routing for headsails and code sails
• Complex line plans on performance cruisers and race yachts
• Creating multi-level banks of organisers in confined deck spaces
Specifications
| Option* | Symmetric or Asymmetric |
| Total width (mm) | 38 |
| Recommended line - Max Ø (mm) | 12 |
| Total height (mm) | 26 |
| Fixing hole spacing (mm) | 43 |
| Total length (mm) | 324 |
| Sheave Ø (mm) | 38 |
| Mounting fasteners | M6 CSK Head (not supplied) |
| Sideplate material | Composite |
| Sheave material | Composite |
| SWL (kg) | 600 |
| NBL (kg) | 1200 |
| Weight (g) | 243 |
