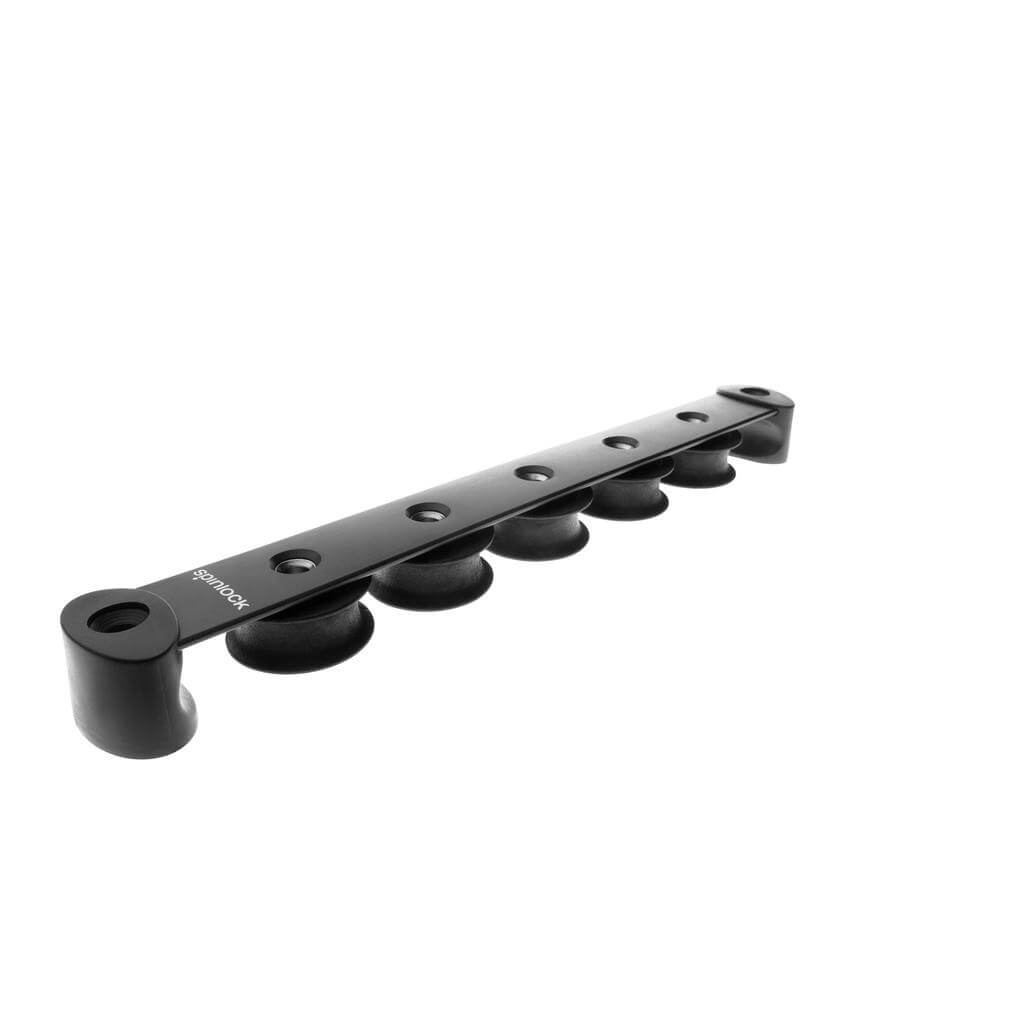

Spinlock T38 – 5 Sheave Deck Organiser (Symmetric and Asymmetric)
The Spinlock T38 5 Sheave Deck Organiser offers a high-capacity solution for routing five control lines in a compact, efficient footprint. With 38 mm sheaves and a carefully engineered bearing surface, the T38 reduces friction and winch load, improving trimming efficiency while extending halyard and control line lifespan.
The Vari-camber base follows the curve of the deck for a secure, well-sealed installation. Integral end fairings ensure safe side loading, particularly important when lines enter or leave the organiser at off-centred angles. Available in Symmetric and Asymmetric forms, with the latter reducing deck footprint and overall weight.
The T38’s stackable design enables additional layers to be added where a yacht requires more line-handling capacity.
Key Features
• Five 38 mm sheaves for high-capacity line routing
• Low-friction bearing surface reduces winch effort
• Integral end fairings provide protection during side loading
• Vari-camber base aligns with curved deck surfaces
• Symmetric and Asymmetric variants
• Asymmetric version minimises weight and footprint
• Stackable organiser design
• Safe Working Load (SWL): 600 kg
Applications on Sailing Yachts
Well suited to yachts with extensive running rigging systems. Typical applications include:
• Multiple halyards for mainsail, jib, staysail, and spinnaker
• Full sets of reefing, tack line, and outhaul controls
• Vang, downhaul, and other sail shape adjustments
• Complex trimming systems on performance cruisers and club racers
• Increasing organiser capacity in restricted deck spaces
Specifications
| Option* | Symmetric or Asymmetric |
| Total width (mm) | 38 |
| Recommended line - Max Ø (mm) | 12 |
| Total height (mm) | 26 |
| Fixing hole spacing (mm) | 43 |
| Total length (mm) | 281 |
| Sheave Ø (mm) | 38 |
| Mounting fasteners | M6 CSK Head (not supplied) |
| Sideplate material | Composite |
| Sheave material | Composite |
| SWL (kg) | 600 |
| NBL (kg) | 1200 |
| Weight (g) | 227 |
