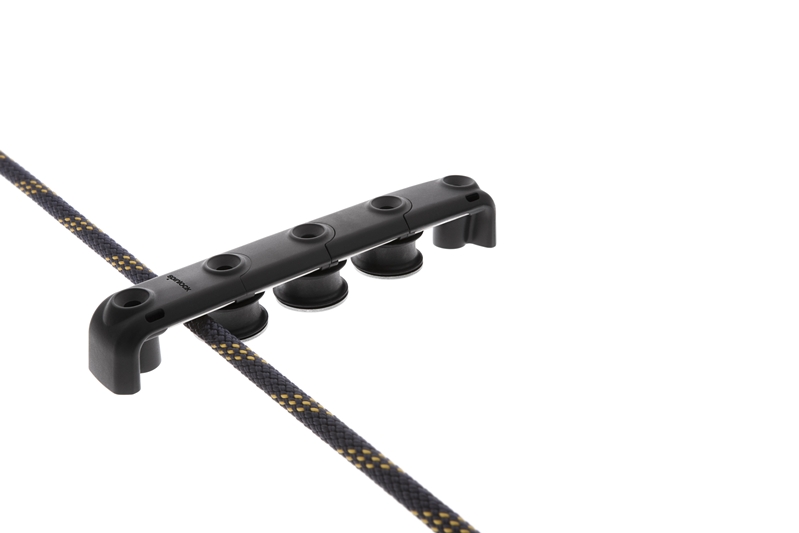

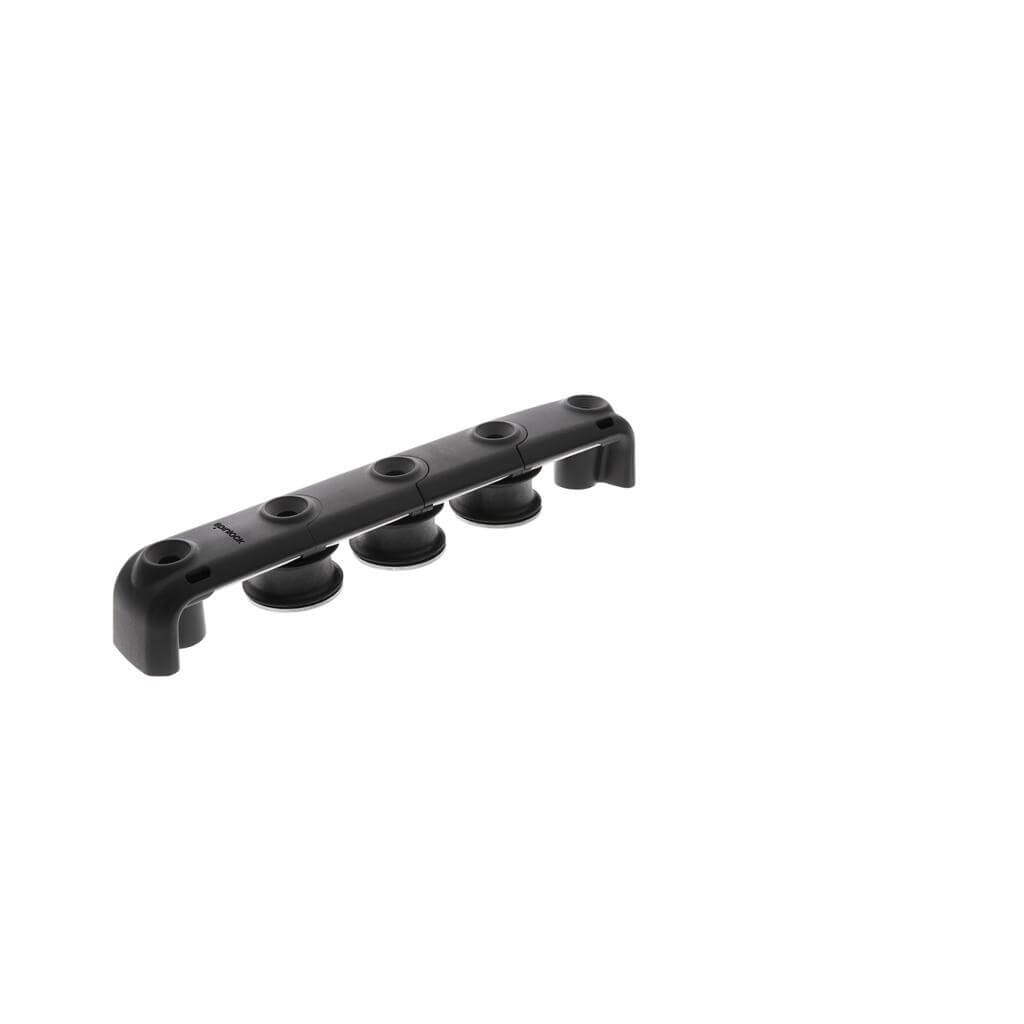

Spinlock T25 – 3 Sheave Organiser (Symmetric and Asymmetric)
The Spinlock T25 3 Sheave Organiser is designed for small to mid-sized sailing yachts that require clean, efficient routing of three control lines aft. With 25 mm sheaves and a durable fibre-reinforced body, it provides reliable deck organisation for halyards, reefing lines, outhauls, and vang or downhaul controls.
A stainless steel wear strip protects the sheaves from rope abrasion, while the unlinked stainless steel base naturally conforms to curved deck surfaces. The curved profile allows for fair leads with minimal friction, even on compact coachroof layouts.
Both Symmetric and Asymmetric versions are available, allowing owners and riggers to match the organiser footprint and sheave alignment to the optimal deck geometry.
Key Features
• Compact 25 mm organiser for routing three control lines
• Fibre-reinforced construction for long-term strength
• Stainless steel wear strip for chafe protection
• Stainless steel unlinked base for curved deck mounting
• Symmetric or Asymmetric configurations
• Curved profile follows deck shape for fair line leads
• Safe Working Load (SWL): 400 kg
Applications on Sailing Yachts
Ideal for cruisers and club racers running multiple halyards or a mix of halyard and reefing/adjustment lines. Common uses include:
• Leading main, jib, or spinnaker halyards aft
• Organising two reefing lines plus an outhaul
• Routing vang, cunningham, or pole downhaul controls
• Forming part of a stacked system when paired with BE10 organisers
Specifications
| Option* | Symmetric or Asymmetric |
| Total width (mm) | 25 |
| Recommended line - Max Ø (mm) | 10 |
| Total height (mm) | 24 |
| Fixing hole spacing (mm) | 32 |
| Total length (mm) | 158 |
| Sheave Ø (mm) | 25 |
| Mounting fasteners | M5 CSK Head (not supplied) |
| Sideplate material | Composite |
| Sheave material | Composite |
| SWL (kg) | 400 |
| NBL (kg) | 800 |
| Weight (g) | 86 |
