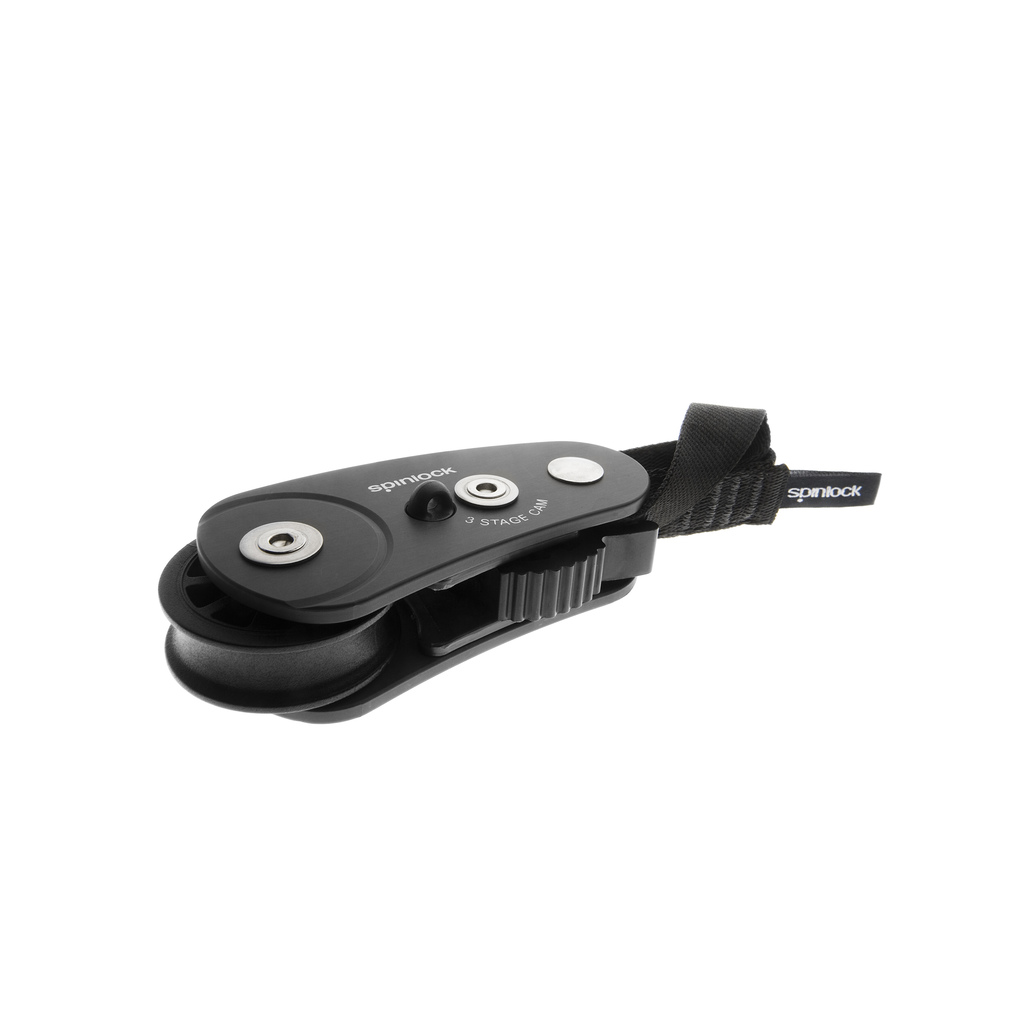

Spinlock BRS 50mm – Mobile Block with Locking Cam

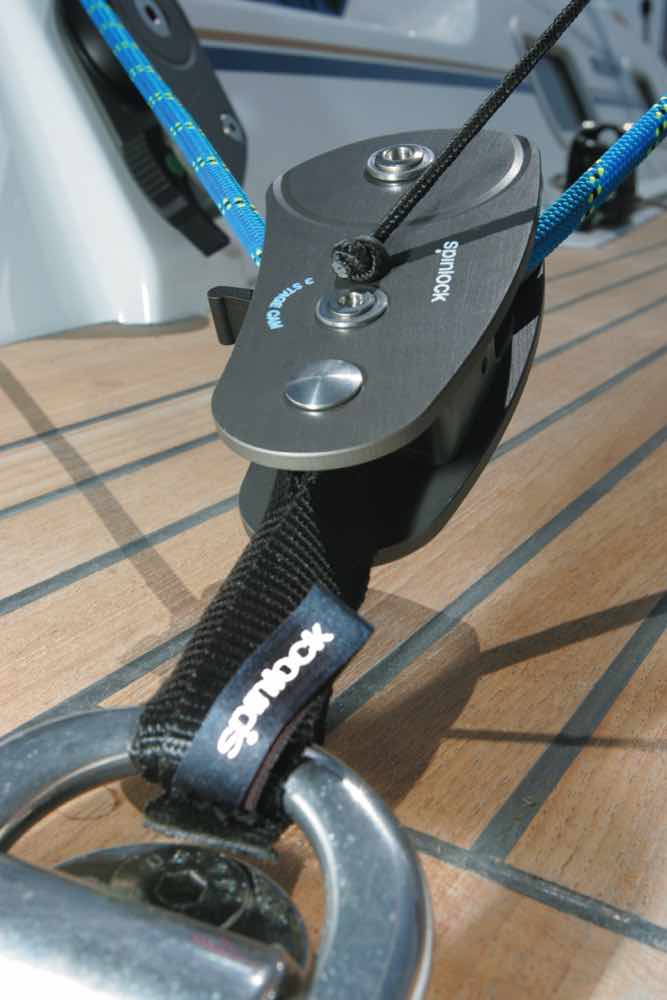

The Spinlock BRS 50mm is a mobile jammer block designed for fast, reliable attachment anywhere on board. Sometimes described as a “floating” block, this simply means it is not permanently fixed to the deck and can be moved to wherever you need an extra turning point. Using the flexible webbing strop rather than a fixed foot or becket, the BRS can be looped around stanchion bases, padeyes, boom sections, toe rails, or other suitable strong points in seconds. This versatility makes it ideal for sailors who need temporary leads without adding permanent deck fittings.

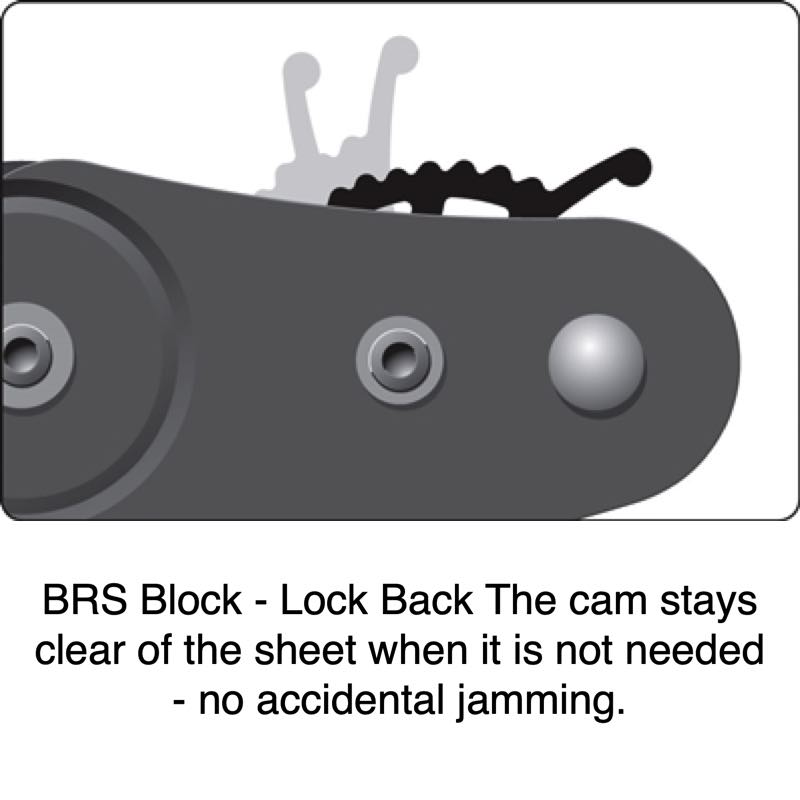

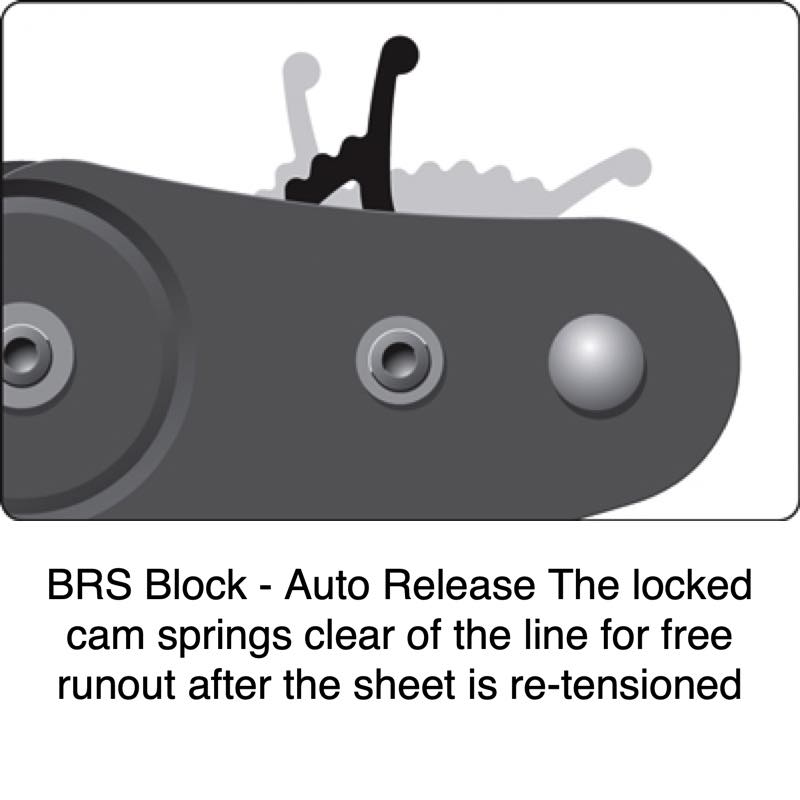

A pivotal feature of the BRS design is its integrated locking cam stopper. Once the line is led through the 50mm sheave, the cam offers additional holding power when needed, allowing sailors to temporarily lock or control a loaded line without reaching for a dedicated cleat or clutch. This is particularly useful for asymmetric spinnaker sheets, barber haulers, headsail tweakers, preventers, and reefing lines on cruising yachts and performance boats.
Because it does not require drilling or a fixed mounting point, the BRS 50mm is an excellent problem-solver for changing deck layouts, experimental setups, or occasional use systems where a conventional foot block would be overkill.
Key Features
- Mobile, “floating” jammer block that can be positioned wherever it is needed
- Flexible webbing strop attachment for quick, tool-free positioning on deck strong points
- Integrated locking cam stopper for temporary load control
- Ideal for asymmetric sheet leads, tweakers, preventers, and boom control systems
- Suitable for a wide range of sailing yachts
Technical Specifications
- Sheave diameter: 50mm
- Maximum rope diameter: 10mm
- Safe Working Load (SWL): 800kg
- Weight: 250g
Specifications
| Bearing type | Plain bearing |
| Recommended line - Max Ø (mm) | 10 |
| Recommended line - Min Ø (mm) | 6 |
| Sheave Ø (mm) | 50 |
| SWL (kg) | 800 |
| Weight (g) | 250 |
