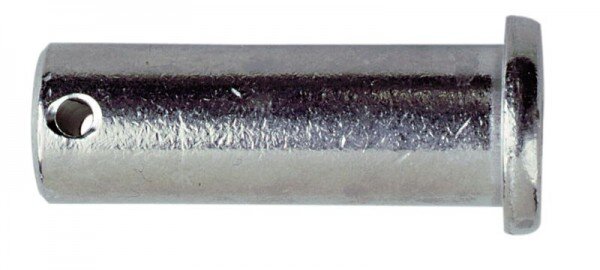

Selden Clevis Pin Ø10mm x 50mm
This Selden stainless steel clevis pin is designed for secure, removable connections in marine rigging and deck hardware applications. Manufactured from corrosion-resistant stainless steel, it is suitable for use in demanding saltwater environments.
The pin is specified by its nominal diameter and overall length, with the critical working length defined as the effective load-bearing length up to the cotter pin hole. This ensures accurate selection when matching pin length to fittings, tangs, or articulated joints.
-
Pin diameter: 10 mm
-
Overall length: 50 mm
-
Effective working length (to cotter pin hole): 45 mm
-
Material: Stainless steel
-
Retention: Cross-drilled for cotter pin or split ring
Ideal for use in Selden rigging systems and compatible with a wide range of marine fittings where precise pin length is critical.
