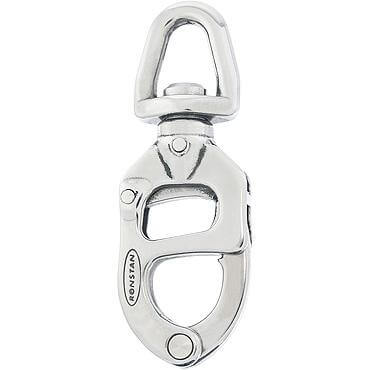

Specifications for Ronstan Triggersnap shackle, small bail, 80mm
| Boat | |
|---|---|
| Style | Swivel Bail (Small) |
| Load | |
| SWL (kg) | 1000 |
| NBL (kg) | 2000 |
| Dimensions | |
| A (mm) | 14 |
| B (mm) | 9 |
| C (mm) | 80 |
| Material | |
| Material | Stainless Steel |
| Material Grade | 15-5PH SS |
| Weight | |
| Weight (g) | 60 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
