Specifications for Ronstan Removable lash padeye 16
| Boat | |
|---|---|
| Style | Soft |
| Load | |
| SWL (kg) | 7000 |
| NBL (kg) | 14000 |
| Dimensions | |
| A (mm) | 49 |
| B (mm) | 88 |
| C (mm) | 16 |
| D (mm) | 99 |
| E (mm) | 72 |
| Deck thickness Min (mm) | 16 |
| Lower Ø (mm) | 99 |
| Upper Ø (mm) | 88 |
| Undefined | |
| Deck thickness Max (mm) | 39 |
| Weight | |
| Weight (g) | 650 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.

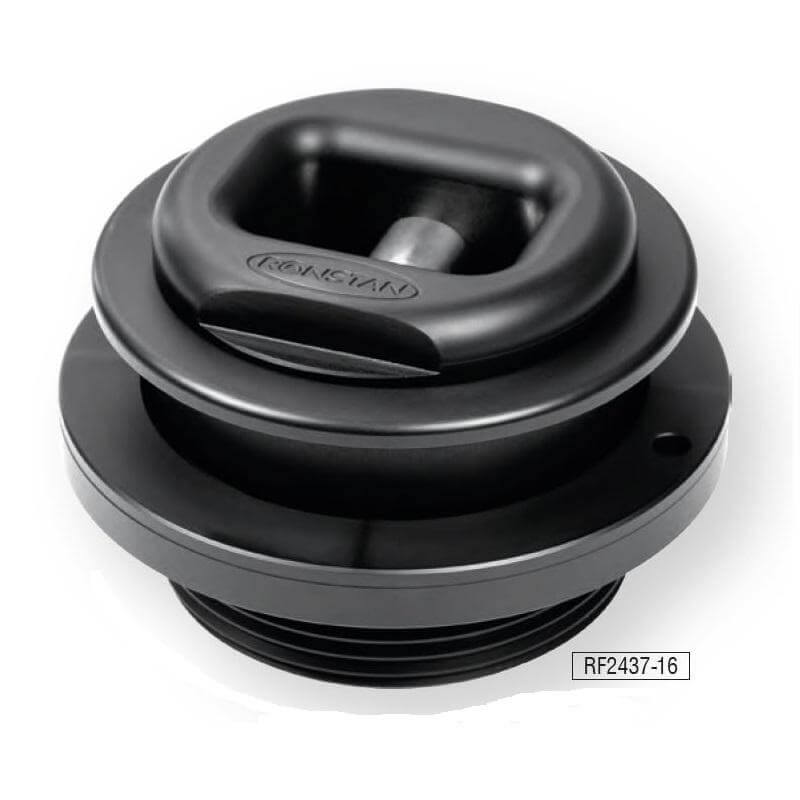

The Ronstan removable padeye allows the block and padeye to be easily removed when not in use. The padeye, socket and clamping ring are all made from lightweight, hard anodized alloy with a 316 stainless cross pin. The padeye comes with a clamping ring spanner and dust cover included. The dust cover prevents grit from entering the threaded socket and provides a clean, flush finish when the padeye is removed. The size 16 padeye, with a SWL of 7000 kg, is suitable for deck thicknesses between 16-39mm and dyneema loops/strops up to 12mm in diameter.
