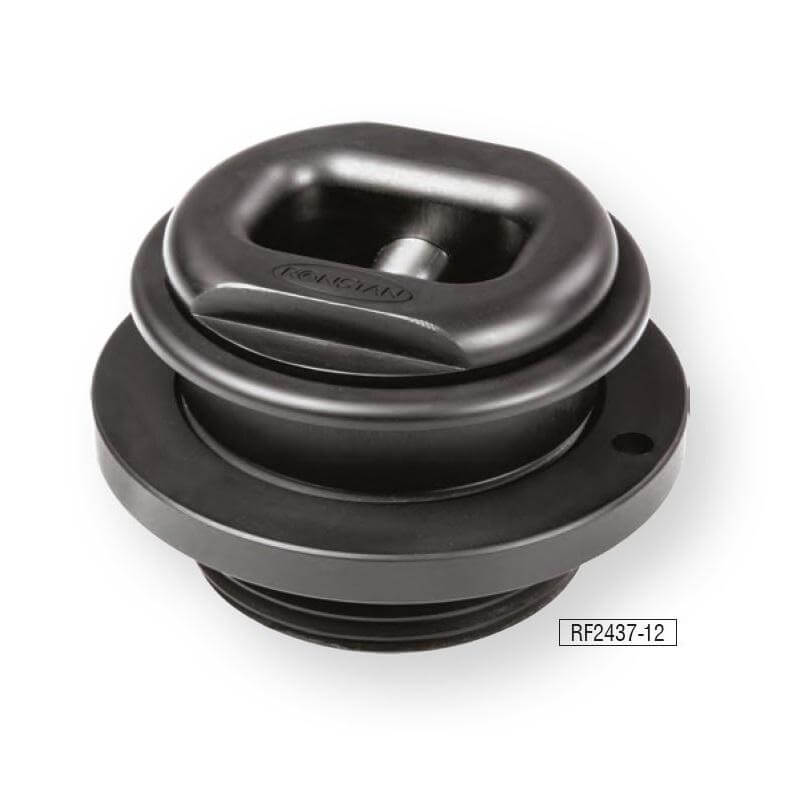

Specifications for Ronstan Removable lash padeye 12
| Boat | |
|---|---|
| Style | Soft |
| Load | |
| SWL (kg) | 4000 |
| NBL (kg) | 8000 |
| Dimensions | |
| A (mm) | 39 |
| B (mm) | 66 |
| C (mm) | 12 |
| D (mm) | 77 |
| E (mm) | 54 |
| Deck thickness Min (mm) | 12 |
| Lower Ø (mm) | 77 |
| Upper Ø (mm) | 66 |
| Undefined | |
| Deck thickness Max (mm) | 32 |
| Weight | |
| Weight (g) | 300 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
