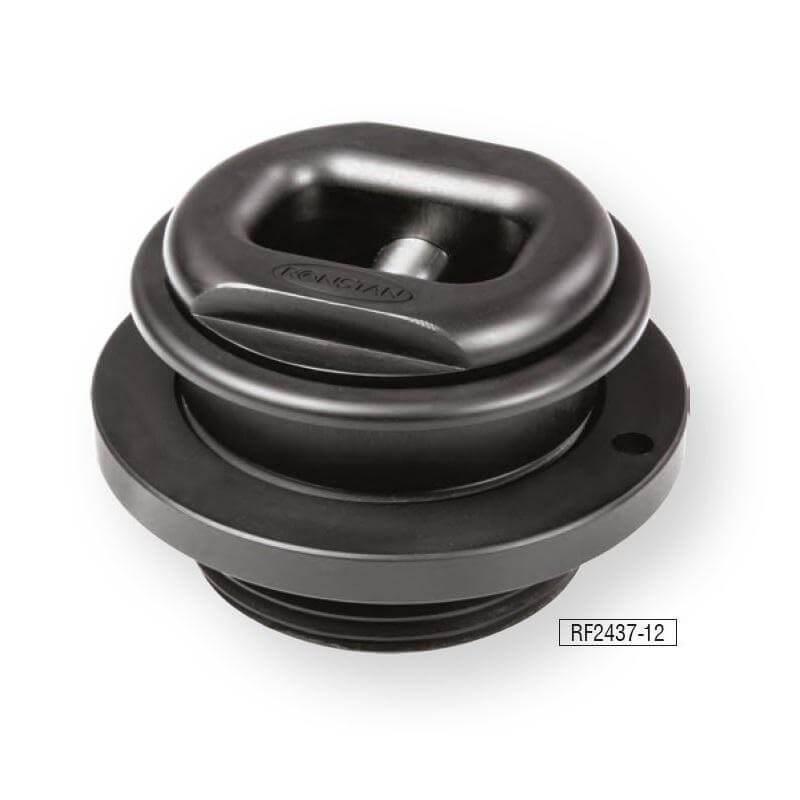

Specifications for Ronstan Removable lash padeye 12
| Boat | |
|---|---|
| Style | Soft |
| Load | |
| SWL (kg) | 4000 |
| NBL (kg) | 8000 |
| Dimensions | |
| A (mm) | 39 |
| B (mm) | 66 |
| C (mm) | 12 |
| D (mm) | 77 |
| E (mm) | 54 |
| Deck thickness Min (mm) | 12 |
| Lower Ø (mm) | 77 |
| Upper Ø (mm) | 66 |
| Undefined | |
| Deck thickness Max (mm) | 32 |
| Weight | |
| Weight (g) | 300 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
The Ronstan removable padeye allows the block and padeye to be easily removed when not in use. The padeye, socket and clamping ring are all made from lightweight, hard anodized alloy with a 316 stainless cross pin. The padeye comes with a clamping ring spanner and dust cover included. The dust cover prevents grit from entering the threaded socket and provides a clean, flush finish when the padeye is removed. The size 12 padeye, with a SWL of 4000 kg, is suitable for deck thicknesses between 12-32mm and dyneema loops/strops up to 10mm in diameter.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Boat | |
|---|---|
| Style | Soft |
| Load | |
|---|---|
| SWL (kg) | 4000 |
| NBL (kg) | 8000 |
| Dimensions | |
|---|---|
| A (mm) | 39 |
| B (mm) | 66 |
| C (mm) | 12 |
| D (mm) | 77 |
| E (mm) | 54 |
| Deck thickness Min (mm) | 12 |
| Lower Ø (mm) | 77 |
| Upper Ø (mm) | 66 |
| Undefined | |
|---|---|
| Deck thickness Max (mm) | 32 |
| Weight | |
|---|---|
| Weight (g) | 300 |
