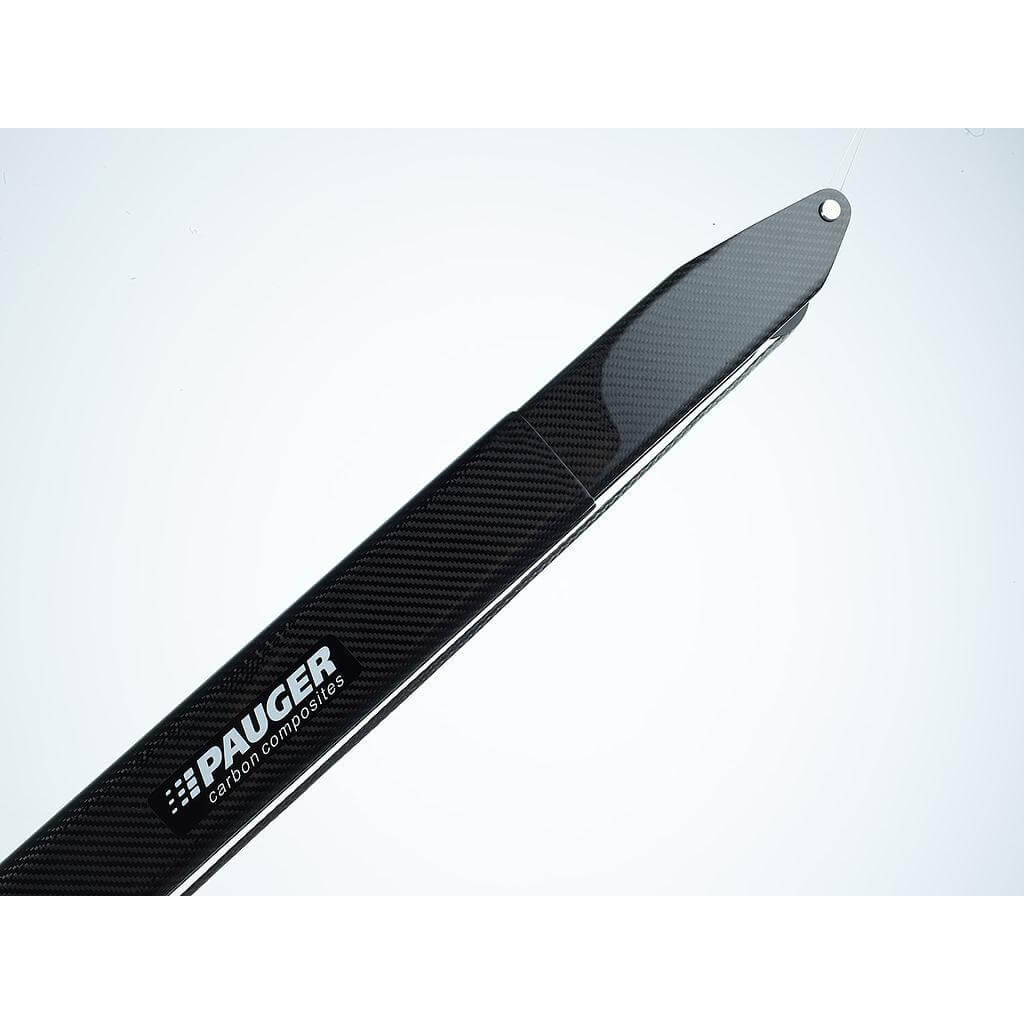

Specifications for Pauger Carbon vang size M, 800-1795 mm
| Ropes | |
|---|---|
| Rope Ø (mm) | 6 |
| Boat | |
| Recommended Boat size - Max (ft) | 38 |
| Recommended Boat size - Min (ft) | 25 |
| Load | |
| Spring force (N) | 1200 |

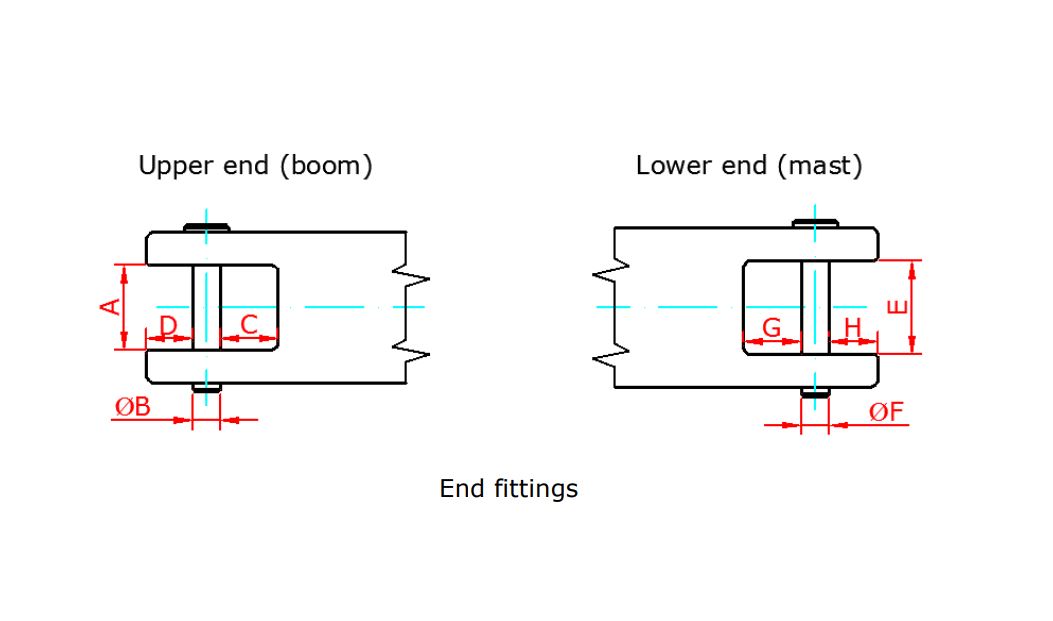

| Dimensions | |
| A (mm) | 11 |
| B (mm) | 10 |
| C (mm) | 23 |
| D (mm) | 10 |
| E (mm) | 15 |
| F (mm) | 10 |
| G (mm) | 14 |
| H (mm) | 10 |
| Length Max (mm) | 1795 |
| Pin Ø (mm) | 10 |
| Stroke (mm) | 100 |
| Undefined | |
| Purchase ratio | 5:1 |
| Weight | |
| Weight (g) | 2000 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
