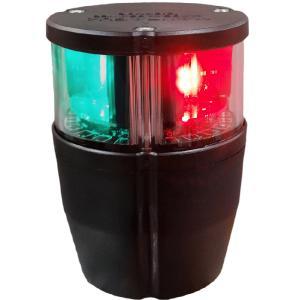

Specifications for Mantagua NAVIPRO 2NM Combined Sidelight (Green & Red 112.5°)
| Electrics | |
|---|---|
| Operating voltage (V) | 10-30 |
| Power supply type | dc. |
| Power (W) | 2.76 |
| Certification | WHEELMARK 60427/A0 MED |
| Luminous Intensity (cd) | >5.4 |
| Visibility (NM) | 2 |
| Water resistance | IP67 |
| Boat | |
| Boat size (m) | 12-20M |
| Dimensions | |
| Height (mm) | 95 |
| Outside Ø (mm) | 69 |
| Material | |
| Material | PC + ASA |
| Weight | |
| Weight (g) | 170 |
| Warranty (yrs) | 2 |
|
Mantagua Navipro - Installation Video
|
|
|
Mantagua CE Certificate.pdf
|
|
|
|
Navigation Lights Approval - NAVIPRO.pdf
WHEELMARK 60427/A0 MED Certificate of Approval
|
|
|
|
Page_NAVIPRO-98.pdf
|
|
|
|
Instructions_utilisateur_francais-anglais_et_declaration_conformite_03-12-20-13.pdf
|
The bicolour emits port (red) and starboard (green) each at 112.5°. The luminous intensity of >5.4cd from the LEDs are visible for a minimum 2 nautical miles.
The NAVIPRO uses LED technology to prolong the lifespan, reaching 45,000 hours of usage; whilst being unaffected and not affecting nearby VHF or AIS systems. The polycarbonate (PC) and acrylonitrile styrene acrylate (ASA) outer shell is UV-resistant, protecting against long-term exposure to UV damage. The light weight and compact design of these lights are also waterproof, with a rating of IP67 making them dust proof and able to withstand 30 minutes under 1 meter of water. They comply to the COLREGS (1972), SOLAS (1974) and European Directive 2014/90/EU, with confirmation by the certification of WHEELMARK 60427/A0 MED approval.
Summary of Features:
- Range of 2 nautical miles
- Compact and light weight
- UV-resistant
- Waterproof IP67
- Low power consumption
- Regulated 10-30 VDC
- Does not disturb AIS or VHF
- Complies to European Directive 2014/90/EU
- Wheelmark 60427/A0 certified.
Specifications
| Electrics | |
|---|---|
| Operating voltage (V) | 10-30 |
| Power supply type | dc. |
| Power (W) | 2.76 |
| Certification | WHEELMARK 60427/A0 MED |
| Luminous Intensity (cd) | >5.4 |
| Visibility (NM) | 2 |
| Water resistance | IP67 |
| Boat | |
|---|---|
| Boat size (m) | 12-20M |
| Dimensions | |
|---|---|
| Height (mm) | 95 |
| Outside Ø (mm) | 69 |
| Material | |
|---|---|
| Material | PC + ASA |
| Weight | |
|---|---|
| Weight (g) | 170 |
| Warranty (yrs) | 2 |
