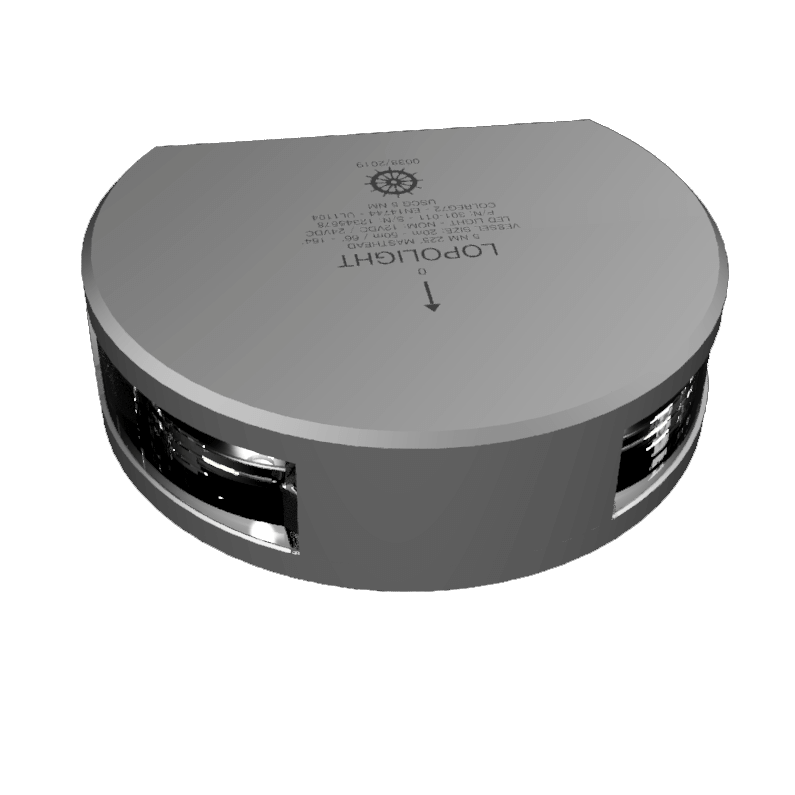

Vertical mounted with 0,75m cable
Included in package:
1 Navigation light
precabled with 0.75 meter shielded marine grade cable
2 Mounting screws (M6 * 8 mm)
Installation guide
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Electrics | |
|---|---|
| Operating voltage (V) | 10-32 |
| Power supply type | dc. |
| Current draw (mA @ 12VDC) | 320 |
| Current draw (mA @ 24VDC) | 170 |
| Power (W) | 4.1 |
| Approved to | COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR |
| Luminous Intensity (cd) | >52 |
| Operating temperature | -25°C to 55°C |
| Visibility (NM) | 5 |
| Water resistance | IP68 |
| Boat | |
|---|---|
| Boat size (m) | 20-50M |
| Dimensions | |
|---|---|
| Dimensions (mm) | 74,55 x 28 x 73,16 |
| Rigging | |
|---|---|
| Feed wire gauge Min | 0.5mm2 AWG22 |
| Material | |
|---|---|
| Material | Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane |
| Compatibility | |
|---|---|
| Connection | 0.7m cable |
| Weight | |
|---|---|
| Weight (g) | 420 |
| Warranty (yrs) | 5 year limited warranty |
