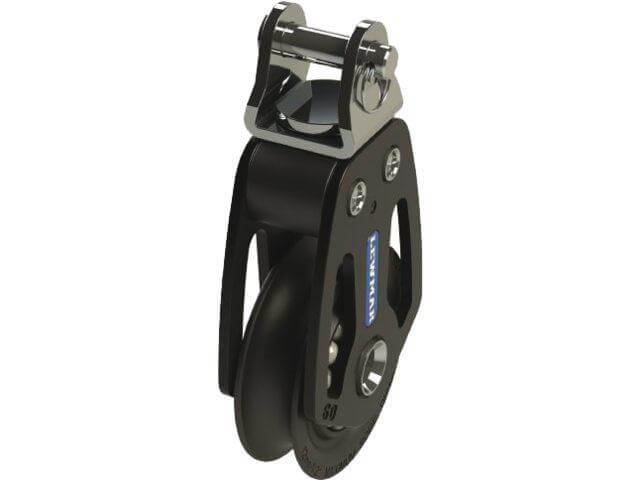

Specifications for Lewmar HTX Block - Halyard Block 72mm
| Ropes | |
|---|---|
| Recommended line - Max Ø (mm) | 14 |
| Boat | |
| Load | |
| SWL (kg) | 2000 |
| NBL (kg) | 4000 |
| Blocks | |
| Bearing material | Delrin® |
| Bearing type | Ball bearing |
| Sheave material | UV stabilised acetal |
| Sideplate material | Aluminium |
| Dimensions | |
| A (mm) | 23 |
| B (mm) | 10 |
| C (mm) | 9.5 |
| Sheave Ø (mm) | 72 |
| Furling | |
| Compatibility | |
| Weight | |
| Weight (g) | 410 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
