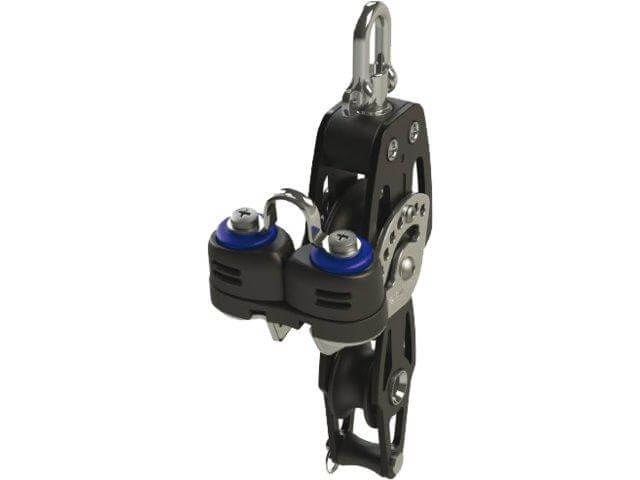

YDrawing upon the design of the racing range, Lewmar's HTX blocks are constructed simply from high quality materials, providing enhanced reliability. Ideal for frequently adjusted, highly loaded systems using modern line technology and reduced line diameters.
Featuring:
- Strong aluminium side plates
- Central plain bearing for efficiency at high loads
- Side thrust Delrin ball bearings
- Head design inspired by Lewmar Racing Range, complete with grub screw swivel head locking mechanism
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Ropes | |
|---|---|
| Recommended line - Max Ø (mm) | 14 |
| Boat |
|---|
| Load | |
|---|---|
| SWL (kg) | 2000 |
| NBL (kg) | 4000 |
| Blocks | |
|---|---|
| Bearing material | Delrin® |
| Bearing type | Ball bearing |
| Sheave material | UV stabilised acetal |
| Sideplate material | Aluminium |
| Ratchet | No |
| Dimensions | |
|---|---|
| Sheave Ø (mm) | 72 |
| Furling |
|---|
| Compatibility |
|---|
| Weight | |
|---|---|
| Weight (g) | 776 |
