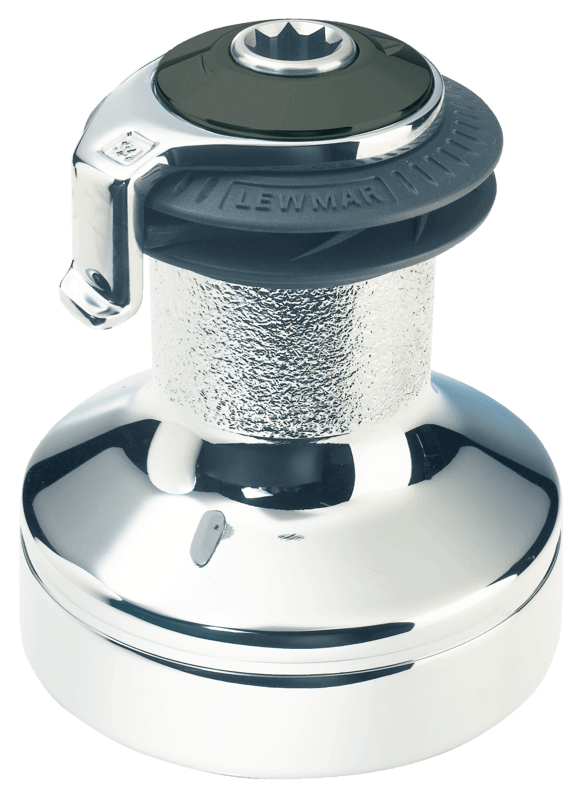

Specifications for Lewmar 65 2-Speed Self-Tailing Chromed Bronze Ocean Winch
| Ropes | |
|---|---|
| Recommended line - Max Ø (mm) | 18 |
| Recommended line - Min Ø (mm) | 8 |
| Boat | |
| Style | Self-Tailing |
| Load | |
| SWL (kg) | 3748 |
| Dimensions | |
| B (mm) | 231 |
| D (mm) | 118 |
| H (mm) | 271 |
| L (mm) | 121.5 |
| Base Ø (mm) | 231 |
| Drum Ø (mm) | 118 |
| Height (mm) | 271 |
| Line entry height (mm) | 121.5 |
| Winches | |
| Gear ratio 1 (X : 1) | 3.1 |
| Gear ratio 2 (X : 1) | 15.3 |
| Gears (Manual) | 2-Speed |
| Line recovery per rotation - 1st gear (mm) | 275 |
| Line recovery per rotation - 2nd gear (mm) | 56 |
| Power ratio 1 (X : 1) | 13.4 |
| Power ratio 2 (X : 1) | 66 |
| Material | |
| Material | Chromed Bronze |
| Undefined | |
| Size | 65 |
| Weight | |
| Weight (g) | 23800 |
| Warranty (yrs) | 3 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
