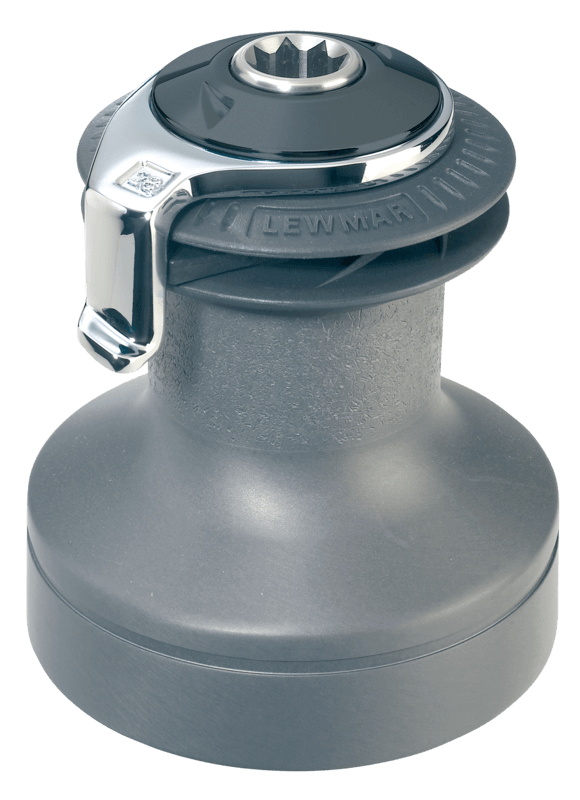

Specifications for Lewmar 14 1-Speed Self-Tailing Alloy Grey Ocean Winch
| Ropes | |
|---|---|
| Recommended line - Max Ø (mm) | 10 |
| Recommended line - Min Ø (mm) | 6 |
| Boat | |
| Style | Self-Tailing |
| Dimensions | |
| B (mm) | 121 |
| D (mm) | 65.7 |
| H (mm) | 121 |
| L (mm) | 58 |
| Base Ø (mm) | 121 |
| Drum Ø (mm) | 65.7 |
| Height (mm) | 121 |
| Line entry height (mm) | 58 |
| Winches | |
| Gear ratio 1 (X : 1) | 2 |
| Gears (Manual) | 1-Speed |
| Power ratio 1 (X : 1) | 15.8 |
| Material | |
| Material | Aluminium |
| Undefined | |
| Size | 14 |
| Weight | |
| Weight (g) | 5100 |
| Warranty (yrs) | 3 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
|
Lewmar - How to Service an Ocean Winch
A step-by-stepy guide to serviving the Ocean winch by Lewmar
|
|
|
Manual-Winch Part Manual - Volume 10.pdf
Manual - Volume 10
|
|
|
|
Manual-Winch Service Manual B2304 iss6-2.pdf
B2304 - Issue 6
|
|
|
|
DRILLING_TEMPLATES copy-2.pdf
Drilling Templates for EVO and Ocean Winches 14ST-65ST
|
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Ropes | |
|---|---|
| Recommended line - Max Ø (mm) | 10 |
| Recommended line - Min Ø (mm) | 6 |
| Boat | |
|---|---|
| Style | Self-Tailing |
| Dimensions | |
|---|---|
| B (mm) | 121 |
| D (mm) | 65.7 |
| H (mm) | 121 |
| L (mm) | 58 |
| Base Ø (mm) | 121 |
| Drum Ø (mm) | 65.7 |
| Height (mm) | 121 |
| Line entry height (mm) | 58 |
| Winches | |
|---|---|
| Gear ratio 1 (X : 1) | 2 |
| Gears (Manual) | 1-Speed |
| Power ratio 1 (X : 1) | 15.8 |
| Material | |
|---|---|
| Material | Aluminium |
| Undefined | |
|---|---|
| Size | 14 |
| Weight | |
|---|---|
| Weight (g) | 5100 |
| Warranty (yrs) | 3 |
