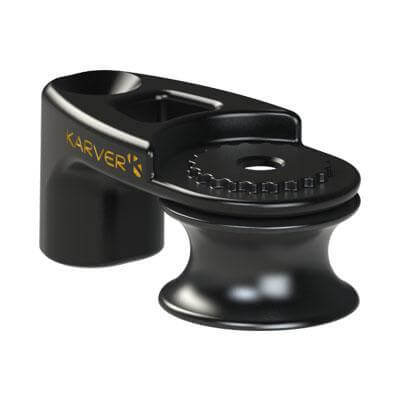

Low friction deck organiser featuring a plain bearing sheave. Each component can fit into another and be installed in a straight line or as a curve. The fastening pattern makes it possible to install the KJ2 or KJ3 cam cleat on top of it.
This 'start' unit can be combined with the 'end' unit and any number of additional sheaves for a modular system.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Ropes | |
|---|---|
| Recommended line - Max Ø (mm) | 14 |
| Boat |
|---|
| Load | |
|---|---|
| SWL (kg) | 850 |
| NBL (kg) | 1700 |
| Blocks | |
|---|---|
| Sideplate material | Aluminium |
| Dimensions | |
|---|---|
| Fixing hole spacing (mm) | 38 |
| Sheave Ø (mm) | 30 |
| Total height (mm) | 26 |
| Total length (mm) | 38 |
| Total width (mm) | 30 |
| Compatibility | |
|---|---|
| Mounting fasteners | M6 (not supplied) |
| Weight | |
|---|---|
| Weight (g) | 45 |
