Karver KJ Jammer video
|
|
|
KA-KJ50_Karver Drawing Jammer_001.PDF
Karver KJ50 High Load Jammer Technical Drawing
|
|
|
|
KA-KJ50_Karver 2D Drawing Jammer_001.DWG
Karver KJ50 2D Jammer Technical Drawing
|
|
|
|
KA-KJ50_Karver 3D Drawing Jammer_001.IGS
Karver KJ50 3D Jammer Technical Drawing
|

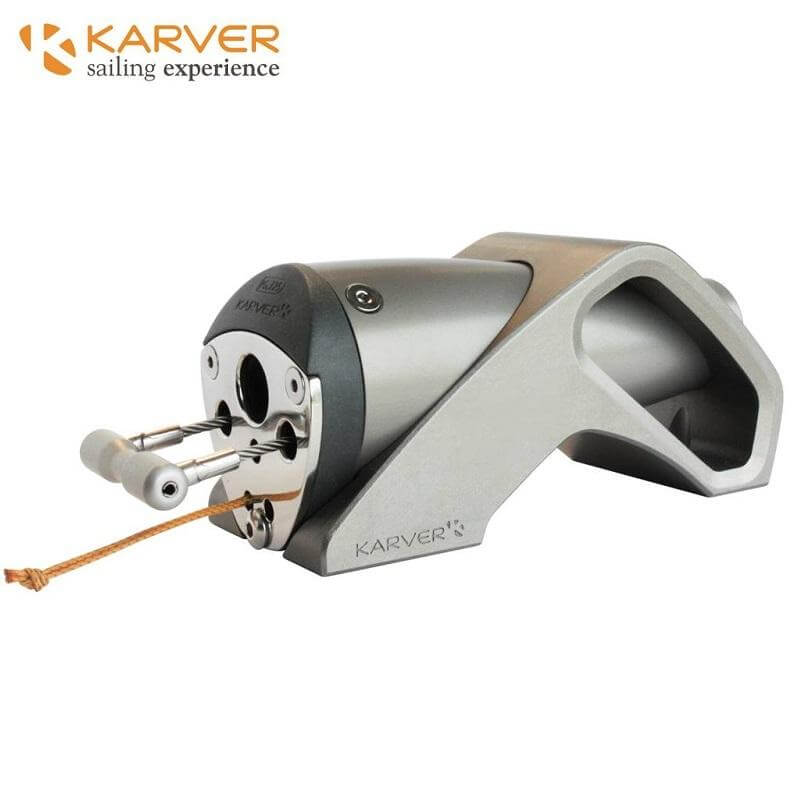

All the KJ jammers have been designed with the same philosophy: 3 concentric jaws that can be separated from their base and have the ability to be operated remotely. Traditional jammers squeeze the line between x2 jaws with a relatively small contact point. The Karver KJ jammer secures the line evenly around its cover with the x3 jaws over a significant length which maximises holding power whilst limiting rope wear. Maintenance is made quick and easy with the conical jammer body removable from the base with a single screw. The KJ50 base can be bonded to the deck or bolted with x4 M12 fastners (provided). Each jammer can handle a range of line sizes.
Specifications
| Ropes | |
|---|---|
| Recommended line - Max Ø (mm) | 20 |
| Recommended line - Min Ø (mm) | 12 |
| Boat |
|---|
| Load | |
|---|---|
| SWL (kg) | 5000 |
| NBL (kg) | 10000 |
| Blocks |
|---|
| Dimensions | |
|---|---|
| Total height (mm) | 81 |
| Total length (mm) | 160 |
| Total width (mm) | 70.4 |
| Compatibility |
|---|
| Weight | |
|---|---|
| Weight (g) | 990 |
