KA-KFX01-HS_Karver Drawing Halyard Swivel_001.PDF
Karver KFX1 Halyard Swivel Technical Drawing
|
|
|
|
KA-KFX01-HS_Karver 2D Drawing Halyard Swivel_001.DWG
Karver KFX1 2D Halyard Swivel Technical Drawing
|
|
|
|
KA-KFX01-HS_Karver 3D Drawing Halyard Swivel_001.IGS
Karver KFX1 3D Halyard Swivel Technical Drawing
|
|
|
|
KA-KFX_Karver Brochure EN_001.pdf
Karver Structural Furler Datasheet
|

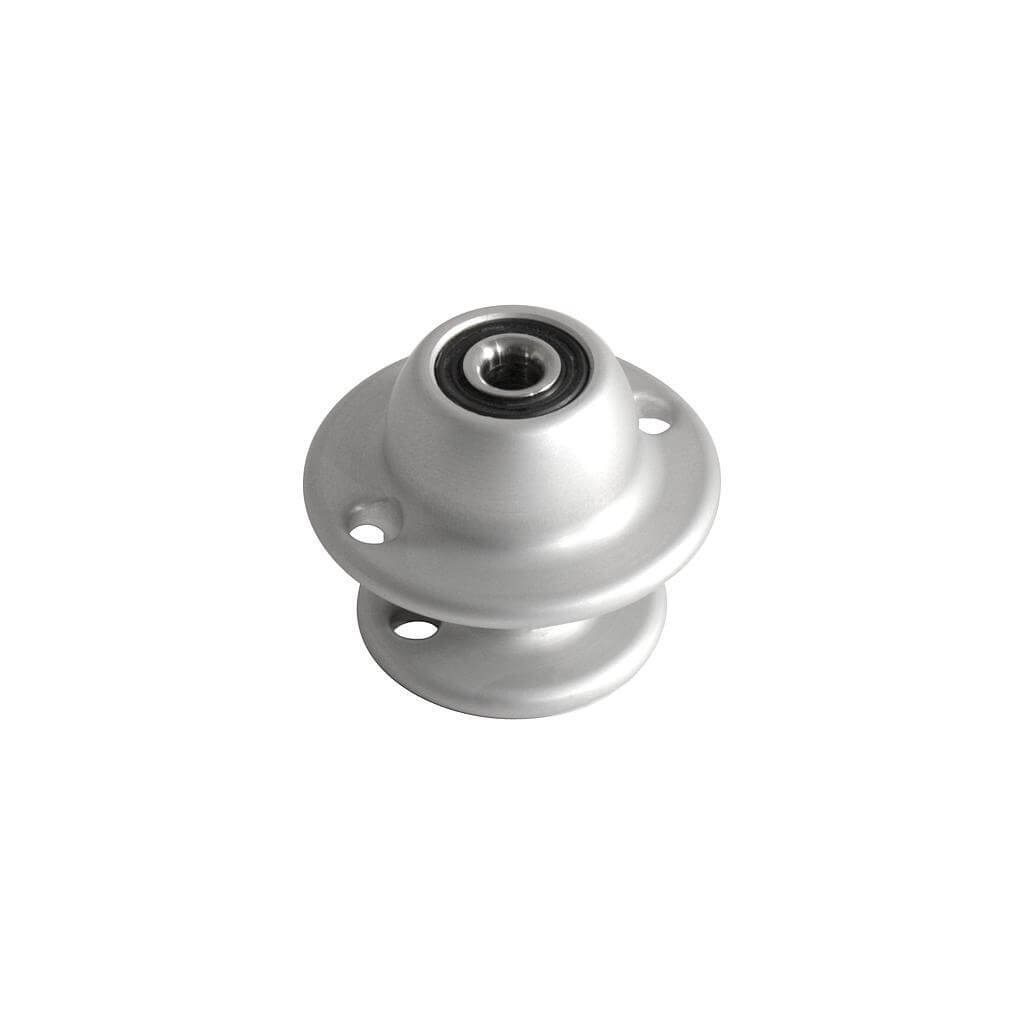

The Karver KFX1 Halyard swivel is designed for use on structural/permanent wire forestays. Situated below the Head swivel, the halyard swivel is a connector between sail head and halyard and allows the sail to be hoisted or lowered on the permanent forestay using the existing halyard setup. The Karver KF1 Halyard swivel can be used on a forestay of maximum 7mm diameter. This product is for use on a wire forestay only - not suitable for composite stays.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Total length (mm) | 42 |
| Wire Ø Max (mm) | 7 |
| SWL (kg) | 1000 |
| NBL (kg) | 2000 |
| Weight (g) | 109 |
