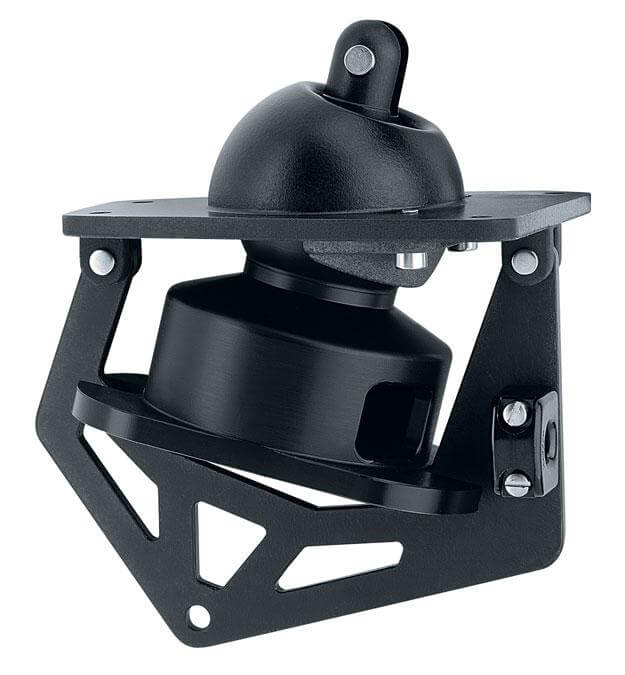

Specifications for Harken Small boat (UD) furling system - 5mm
| Ropes | |
|---|---|
| Recommended line - Max Ø (mm) | 5 |
| Recommended line - Min Ø (mm) | 4 |
| Boat | |
| Load | |
| SWL (kg) | 907 |
| NBL (kg) | 1814 |
| Dimensions | |
| A (mm) | 144 |
| B (mm) | 135 |
| C (mm) | 45 |
| D (mm) | 179 |
| E (mm) | 188 |
| F (mm) | 198 |
| G (mm) | 102 |
| H (mm) | 9.5 |
| I (mm) | 100 |
| Drum Ø (mm) | 102 |
| Jaw pin Ø (mm) | Pending data |
| Jaw width (mm) | 10 |
| Pin Ø (mm) | 8 |
| Wire Ø Max (mm) | 5 |
| Weight | |
| Weight (g) | 1433 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
