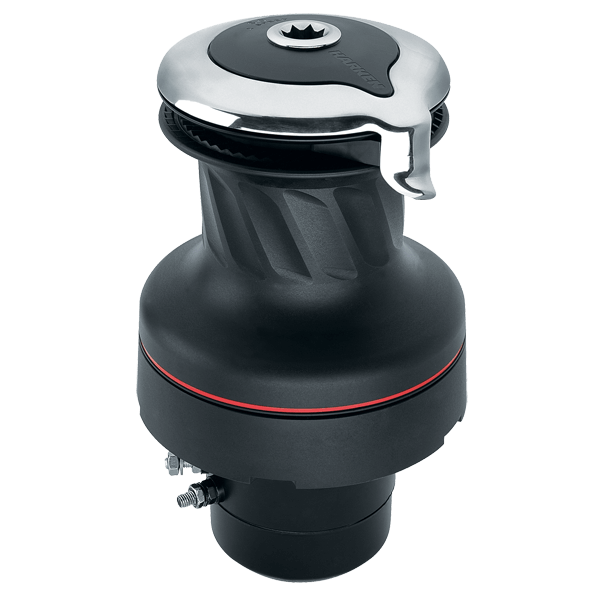

Harken 90 1-Speed Electric (Vertical) 24V Aluminium Unipower Radial Winch (1-Speed Manual)
MPN:
N/A
Brand:
Harken
Specifications for Harken 90 1-Speed Electric (Vertical) 24V Aluminium Unipower Radial Winch (1-Speed Manual)
| Ropes | |
|---|---|
| Recommended line - Max Ø (mm) | 14 |
| Recommended line - Min Ø (mm) | 8 |
| Electrics | |
| Voltage (V) | 24 |
| Power (W) | 900 |
| Speed (Motor) | 1-Speed |
| Boat | |
| Style | Compact |
| Dimensions | |
| A (mm) | 110 |
| B (mm) | 189 |
| C (mm) | 215 |
| D (mm) | 100 |
| E (mm) | 35 |
| F (mm) | 105 |
| G (mm) | 140 |
| Base Ø (mm) | 189 |
| Drum Ø (mm) | 110 |
| Height (mm) | 215 |
| Line entry height (mm) | 100 |
| Motor Depth (mm) | 105 |
| Motor Length (mm) | 140 |
| Winches | |
| Gear ratio 1 (X : 1) | 100 |
| Gears (Manual) | 1-Speed |
| Line recovery per rotation - 1st gear (mm) | 3 |
| Line speed - 1st gear (m/min) | 25 |
| Power ratio 1 (X : 1) | 9.75 |
| Pulling load - Max (kg) | 900 |
| Skirt Details | Black Plastic |
| Material | |
| Material | Aluminium |
| Undefined | |
| Deck thickness Max (mm) | 35 |
| Size | 90 |
| Weight | |
| Weight (g) | 12000 |
| Warranty (yrs) | 2 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
|
Harken Unipower Winch
Harken present and discuss their Unipower Winch
|
|
|
Harken_Winch_Selection.pdf
Harken Winch Selection
|
|
|
|
Harken_Radial_Winches.pdf
Harken Radial Winches
|
|
|
|
Harken_Electric Winches.pdf
Harken Electric Winches
|
|
|
|
WP - Winch selection guide.pdf
|
