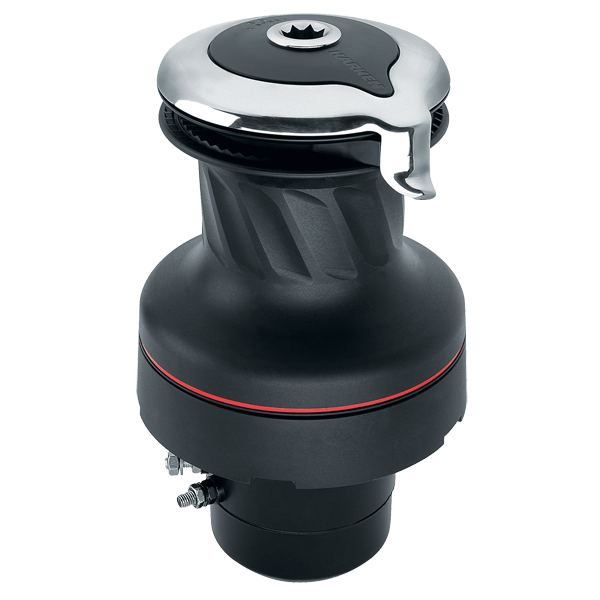

Harken 90 1-Speed Electric (Vertical) 12V Aluminium Unipower Radial Winch (1-Speed Manual)
Specifications for Harken 90 1-Speed Electric (Vertical) 12V Aluminium Unipower Radial Winch (1-Speed Manual)
| Ropes | |
|---|---|
| Recommended line - Max Ø (mm) | 14 |
| Recommended line - Min Ø (mm) | 8 |
| Electrics | |
| Voltage (V) | 12 |
| Power (W) | 700 |
| Speed (Motor) | 1-Speed |
| Boat | |
| Style | Compact |
| Dimensions | |
| A (mm) | 110 |
| B (mm) | 189 |
| C (mm) | 215 |
| D (mm) | 100 |
| E (mm) | 35 |
| F (mm) | 105 |
| G (mm) | 140 |
| Base Ø (mm) | 189 |
| Drum Ø (mm) | 110 |
| Height (mm) | 215 |
| Line entry height (mm) | 100 |
| Motor Depth (mm) | 105 |
| Motor Length (mm) | 140 |
| Winches | |
| Gear ratio 1 (X : 1) | 100 |
| Gears (Manual) | 1-Speed |
| Line recovery per rotation - 1st gear (mm) | 3 |
| Line speed - 1st gear (m/min) | 25 |
| Power ratio 1 (X : 1) | 9.75 |
| Pulling load - Max (kg) | 900 |
| Skirt Details | Black Plastic |
| Material | |
| Material | Aluminium |
| Undefined | |
| Deck thickness Max (mm) | 35 |
| Size | 90 |
| Weight | |
| Weight (g) | 12000 |
| Warranty (yrs) | 2 |
|
Harken Unipower Winch
Harken present and discuss their Unipower Winch
|
|
|
Harken_Winch_Selection.pdf
Harken Winch Selection
|
|
|
|
Harken_Radial_Winches.pdf
Harken Radial Winches
|
|
|
|
Harken_Electric Winches.pdf
Harken Electric Winches
|
|
|
|
WP - Winch selection guide.pdf
|
Electric Self-Tailing Unipower Radial Aluminium Winch
Electric winches allow crew to trim any size sail with the push of a button. Choices include 1, 2-, and 3-speeds, in self-tailing, shaped or sandblasted grips, standard or wide drums. Available in aluminum, chrome, aluminum/stainless, stainless steel, or bronze, in 12- or 24-volt. Energy-efficient motors accomplish more work per unit of electricity consumed. Motors attach to central drive shaft and drive through winch gears for mechanical advantage.
The UniPower is a single-speed winch that combines the advantages of a low-profile manual winch with the power of a 12- or 24-volt, low-amp-draw motor. What makes it unique is that the motor is partially imbedded inside the drum, so that it extends only 105 mm (4 1/8") below the winch base—a critical feature for small boats where space under the cabin top is limited.
Aluminum winches are designed for sailors who want lightweight, extremely strong winches with plenty of power.
Specifications
| Ropes | |
|---|---|
| Recommended line - Max Ø (mm) | 14 |
| Recommended line - Min Ø (mm) | 8 |
| Electrics | |
|---|---|
| Voltage (V) | 12 |
| Power (W) | 700 |
| Speed (Motor) | 1-Speed |
| Boat | |
|---|---|
| Style | Compact |
| Dimensions | |
|---|---|
| A (mm) | 110 |
| B (mm) | 189 |
| C (mm) | 215 |
| D (mm) | 100 |
| E (mm) | 35 |
| F (mm) | 105 |
| G (mm) | 140 |
| Base Ø (mm) | 189 |
| Drum Ø (mm) | 110 |
| Height (mm) | 215 |
| Line entry height (mm) | 100 |
| Motor Depth (mm) | 105 |
| Motor Length (mm) | 140 |
| Winches | |
|---|---|
| Gear ratio 1 (X : 1) | 100 |
| Gears (Manual) | 1-Speed |
| Line recovery per rotation - 1st gear (mm) | 3 |
| Line speed - 1st gear (m/min) | 25 |
| Power ratio 1 (X : 1) | 9.75 |
| Pulling load - Max (kg) | 900 |
| Skirt Details | Black Plastic |
| Material | |
|---|---|
| Material | Aluminium |
| Undefined | |
|---|---|
| Deck thickness Max (mm) | 35 |
| Size | 90 |
| Weight | |
|---|---|
| Weight (g) | 12000 |
| Warranty (yrs) | 2 |
