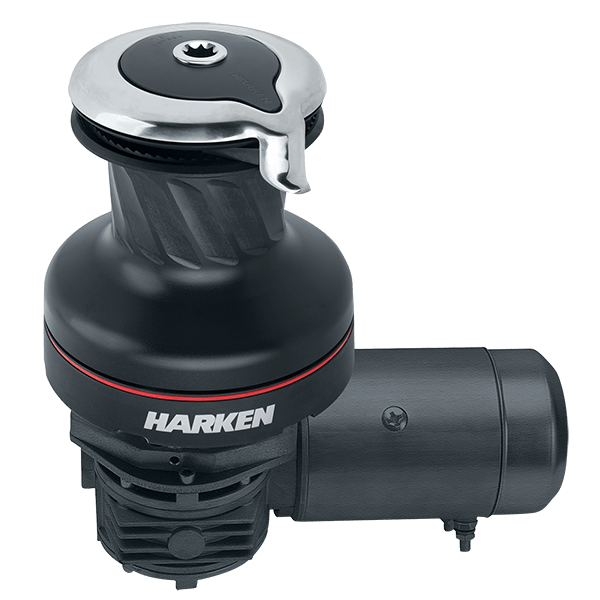

Harken 80 2-Speed Electric (Horizontal) 24V Aluminium Radial Winch (2-Speed Manual)
MPN:
N/A
Brand:
Harken
Specifications for Harken 80 2-Speed Electric (Horizontal) 24V Aluminium Radial Winch (2-Speed Manual)
| Ropes | |
|---|---|
| Recommended line - Max Ø (mm) | 18 |
| Recommended line - Min Ø (mm) | 10 |
| Electrics | |
| Voltage (V) | 24 |
| Power (W) | 2000 |
| Speed (Motor) | 2-Speed |
| Boat | |
| Style | Horizontal |
| Dimensions | |
| A (mm) | 177 |
| B (mm) | 287 |
| C (mm) | 320 |
| D (mm) | 164 |
| E (mm) | 81 |
| F (mm) | 221 |
| G (mm) | 272 |
| Base Ø (mm) | 287 |
| Drum Ø (mm) | 177 |
| Height (mm) | 320 |
| Line entry height (mm) | 164 |
| Motor Depth (mm) | 221 |
| Motor Length (mm) | 272 |
| Winches | |
| Gear ratio 1 (X : 1) | 9.94 |
| Gear ratio 2 (X : 1) | 32.12 |
| Gears (Manual) | 2-Speed |
| Line recovery per rotation - 1st gear (mm) | 56 |
| Line recovery per rotation - 2nd gear (mm) | 17 |
| Line speed - 1st gear (m/min) | 15 |
| Line speed - 2nd gear (m/min) | 4.6 |
| Power ratio 1 (X : 1) | 28.85 |
| Power ratio 2 (X : 1) | 93.24 |
| Pulling load - Max (kg) | 4477 |
| Skirt Details | Black Plastic |
| Material | |
| Material | Aluminium |
| Undefined | |
| Deck thickness Max (mm) | 81 |
| Size | 80 |
| Compatibility | |
| Mount* | Right-Hand Mount or Left-Hand Mount |
| Weight | |
| Weight (g) | 32000 |
| Warranty (yrs) | 2 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
