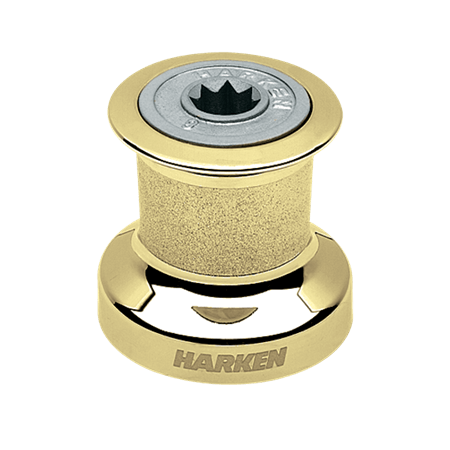

Specifications for Harken 8 Plain-Top Classic Bronze Winch
| Ropes | |
|---|---|
| Recommended line - Max Ø (mm) | N/A |
| Recommended line - Min Ø (mm) | N/A |
| Boat | |
| Style | Plain-Top |
| Dimensions | |
| A (mm) | 68 |
| B (mm) | 115 |
| C (mm) | 90 |
| D (mm) | 38 |
| Base Ø (mm) | 115 |
| Drum Ø (mm) | 68 |
| Height (mm) | 90 |
| Line entry height (mm) | 38 |
| Winches | |
| Gear ratio 1 (X : 1) | 1 |
| Gears (Manual) | 1-Speed |
| Power ratio 1 (X : 1) | 7.5 |
| Material | |
| Material | Bronze |
| Undefined | |
| Size | 8 |
| Weight | |
| Weight (g) | 2100 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
Bronze winches enhance your yacht’s classic look, while providing the low-friction pulling power of Harken’s gearing systems. The Classic Plain Top winches complement the look of Harken's Radial line in smaller sizes. Single-speed, plain-top winches use Delrin® bearing sleeves.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Ropes | |
|---|---|
| Recommended line - Max Ø (mm) | N/A |
| Recommended line - Min Ø (mm) | N/A |
| Boat | |
|---|---|
| Style | Plain-Top |
| Dimensions | |
|---|---|
| A (mm) | 68 |
| B (mm) | 115 |
| C (mm) | 90 |
| D (mm) | 38 |
| Base Ø (mm) | 115 |
| Drum Ø (mm) | 68 |
| Height (mm) | 90 |
| Line entry height (mm) | 38 |
| Winches | |
|---|---|
| Gear ratio 1 (X : 1) | 1 |
| Gears (Manual) | 1-Speed |
| Power ratio 1 (X : 1) | 7.5 |
| Material | |
|---|---|
| Material | Bronze |
| Undefined | |
|---|---|
| Size | 8 |
| Weight | |
|---|---|
| Weight (g) | 2100 |
