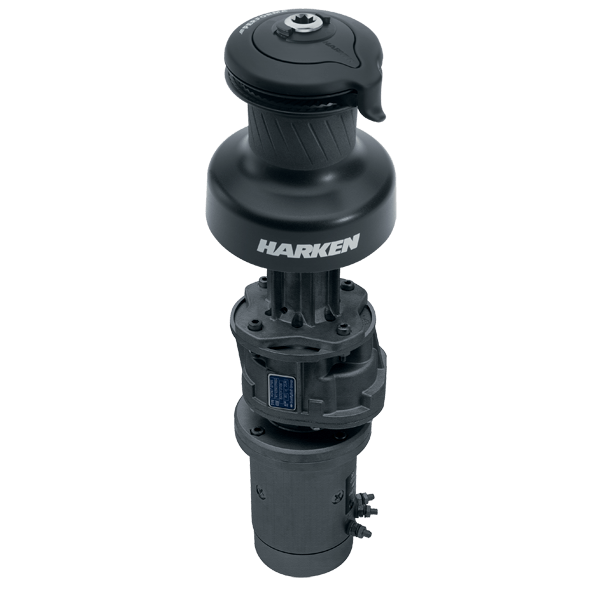

Harken 60 3-Speed Electric (Vertical) 12V Aluminium Performa Winch (3-Speed Manual)
Specifications for Harken 60 3-Speed Electric (Vertical) 12V Aluminium Performa Winch (3-Speed Manual)
| Ropes | |
|---|---|
| Recommended line - Max Ø (mm) | 16 |
| Recommended line - Min Ø (mm) | 8 |
| Electrics | |
| Voltage (V) | 12 |
| Power (W) | 1500 |
| Speed (Motor) | 3-Speed |
| Boat | |
| Style | Vertical |
| Dimensions | |
| A (mm) | 121 |
| B (mm) | 236 |
| C (mm) | 253 |
| D (mm) | 116 |
| L (mm) | 394 |
| N (mm) | 140 |
| Base Ø (mm) | 236 |
| Drum Ø (mm) | 121 |
| Height (mm) | 253 |
| Line entry height (mm) | 116 |
| Motor Depth (mm) | 394 |
| Motor Length (mm) | 140 |
| Winches | |
| Gear ratio 1 (X : 1) | 2.2 |
| Gear ratio 2 (X : 1) | 4.8 |
| Gear ratio 3 (X : 1) | 14.4 |
| Gears (Manual) | 3-Speed |
| Line recovery per rotation - 1st gear (mm) | 173 |
| Line recovery per rotation - 2nd gear (mm) | 79 |
| Line recovery per rotation - 3rd gear (mm) | 26 |
| Line speed - 1st gear (m/min) | 44.5 |
| Line speed - 2nd gear (m/min) | 20.3 |
| Line speed - 3rd gear (m/min) | 6.8 |
| Power ratio 1 (X : 1) | 9.2 |
| Power ratio 2 (X : 1) | 20.3 |
| Power ratio 3 (X : 1) | 61 |
| Pulling load - Max (kg) | 1800 |
| Skirt Details | Integrated |
| Material | |
| Material | Aluminium |
| Undefined | |
| Size | 60 |
| Weight | |
| Weight (g) | 22100 |
| Warranty (yrs) | 2 |
Electric Self-Tailing Performa Aluminium Winch
Electric winches allow crew to trim any size sail with the push of a button. Choices include 1, 2-, and 3-speeds, in self-tailing, shaped or sandblasted grips, standard or wide drums. Available in aluminum, chrome, aluminum/stainless, stainless steel, or bronze, in 12- or 24-volt. Energy-efficient motors accomplish more work per unit of electricity consumed. Motors attach to central drive shaft and drive through winch gears for mechanical advantage.
Harken Performa winches combine the high-efficiency of the Radial line with the sandblasted grip of Harken carbon-fiber racing winches for powerful hybrids. Optimized to handle the high-strength line used on sportboats and performance cruisers, Performa winches are a great solution for crew who don’t wish to invest in carbon winches or who need racing winches in smaller sizes.
Aluminum winches are designed for sailors who want lightweight, extremely strong winches with plenty of power.
Specifications
| Ropes | |
|---|---|
| Recommended line - Max Ø (mm) | 16 |
| Recommended line - Min Ø (mm) | 8 |
| Electrics | |
|---|---|
| Voltage (V) | 12 |
| Power (W) | 1500 |
| Speed (Motor) | 3-Speed |
| Boat | |
|---|---|
| Style | Vertical |
| Dimensions | |
|---|---|
| A (mm) | 121 |
| B (mm) | 236 |
| C (mm) | 253 |
| D (mm) | 116 |
| L (mm) | 394 |
| N (mm) | 140 |
| Base Ø (mm) | 236 |
| Drum Ø (mm) | 121 |
| Height (mm) | 253 |
| Line entry height (mm) | 116 |
| Motor Depth (mm) | 394 |
| Motor Length (mm) | 140 |
| Winches | |
|---|---|
| Gear ratio 1 (X : 1) | 2.2 |
| Gear ratio 2 (X : 1) | 4.8 |
| Gear ratio 3 (X : 1) | 14.4 |
| Gears (Manual) | 3-Speed |
| Line recovery per rotation - 1st gear (mm) | 173 |
| Line recovery per rotation - 2nd gear (mm) | 79 |
| Line recovery per rotation - 3rd gear (mm) | 26 |
| Line speed - 1st gear (m/min) | 44.5 |
| Line speed - 2nd gear (m/min) | 20.3 |
| Line speed - 3rd gear (m/min) | 6.8 |
| Power ratio 1 (X : 1) | 9.2 |
| Power ratio 2 (X : 1) | 20.3 |
| Power ratio 3 (X : 1) | 61 |
| Pulling load - Max (kg) | 1800 |
| Skirt Details | Integrated |
| Material | |
|---|---|
| Material | Aluminium |
| Undefined | |
|---|---|
| Size | 60 |
| Weight | |
|---|---|
| Weight (g) | 22100 |
| Warranty (yrs) | 2 |
