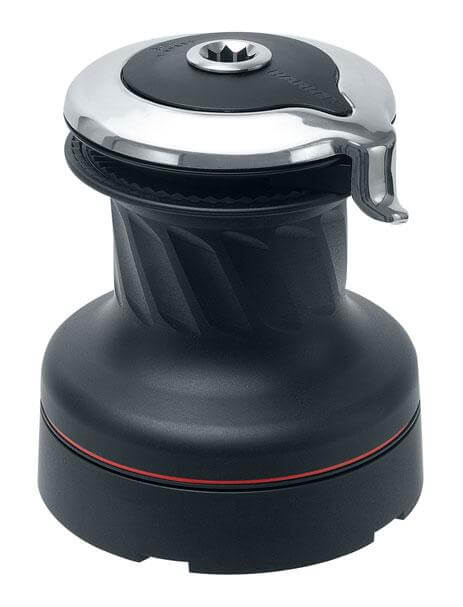

Specifications for Harken 60 2-Speed S/T Radial AL Winch
| Ropes | |
|---|---|
| Recommended line - Max Ø (mm) | 16 |
| Recommended line - Min Ø (mm) | 8 |
| Boat | |
| Style | Self-Tailing |
| Load | |
| SWL (kg) | 1800 |
| Dimensions | |
| A (mm) | 120 |
| B (mm) | 236 |
| C (mm) | 246 |
| D (mm) | 116 |
| Base Ø (mm) | 236 |
| Drum Ø (mm) | 120 |
| Height (mm) | 246 |
| Line entry height (mm) | 116 |
| Winches | |
| Gear ratio 1 (X : 1) | 4.8 |
| Gear ratio 2 (X : 1) | 14.4 |
| Gears (Manual) | 2-Speed |
| Power ratio 1 (X : 1) | 20.3 |
| Power ratio 2 (X : 1) | 61 |
| Material | |
| Material | Aluminium |
| Undefined | |
| Size | 60 |
| Weight | |
| Weight (g) | 10200 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
