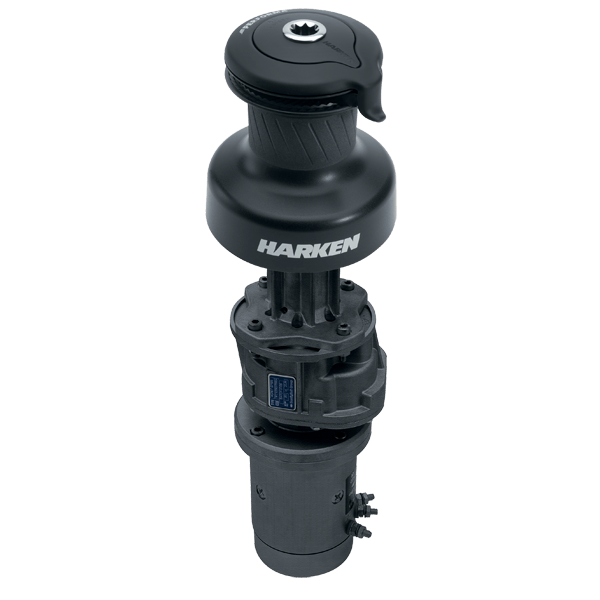

Harken 46 2-Speed Electric (Vertical) 12V Aluminium Performa Winch (2-Speed Manual)
MPN:
N/A
Brand:
Harken
Specifications for Harken 46 2-Speed Electric (Vertical) 12V Aluminium Performa Winch (2-Speed Manual)
| Ropes | |
|---|---|
| Recommended line - Max Ø (mm) | 14 |
| Recommended line - Min Ø (mm) | 8 |
| Electrics | |
| Voltage (V) | 12 |
| Power (W) | 1500 |
| Speed (Motor) | 2-Speed |
| Boat | |
| Style | Vertical |
| Dimensions | |
| A (mm) | 101 |
| B (mm) | 184 |
| C (mm) | 201 |
| D (mm) | 90 |
| L (mm) | 394 |
| N (mm) | 140 |
| Base Ø (mm) | 184 |
| Drum Ø (mm) | 101 |
| Height (mm) | 201 |
| Line entry height (mm) | 90 |
| Motor Depth (mm) | 394 |
| Motor Length (mm) | 140 |
| Winches | |
| Gear ratio 1 (X : 1) | 2.3 |
| Gear ratio 2 (X : 1) | 9.17 |
| Gears (Manual) | 2-Speed |
| Line recovery per rotation - 1st gear (mm) | 138 |
| Line recovery per rotation - 2nd gear (mm) | 35 |
| Line speed - 1st gear (m/min) | 35.1 |
| Line speed - 2nd gear (m/min) | 8.8 |
| Power ratio 1 (X : 1) | 11.7 |
| Power ratio 2 (X : 1) | 46.5 |
| Pulling load - Max (kg) | 1300 |
| Skirt Details | Integrated |
| Material | |
| Material | Aluminium |
| Undefined | |
| Size | 46 |
| Weight | |
| Weight (g) | 17700 |
| Warranty (yrs) | 2 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
