Facnor FXe4500 Motorising Kit (Top Swivel NOT Included)
Efficient and Reliable Electric Furling Upgrade for Medium-Sized Code Zero Sails
The Facnor FXe4500 Motorising Kit is an electric furling solution designed to upgrade or motorise an existing flying sail furling system. Available in both 12V and 24V variants, it delivers the same high-performance capability as the complete FXe4500 system, while allowing sailors to retain their existing Facnor top furling swivel.
Designed for sailing yachts between 38 and 52 feet and code zero sails up to 140 square metres, this motorising kit is ideal for owners seeking a cost-effective and space-efficient electric upgrade without replacing the full furler assembly.
Key Features
-
High-Torque Electric Motor (12V or 24V): Provides smooth, powerful and reliable furling under load, matched to the selected onboard voltage system.
-
Modular Upgrade Solution: Supplies all components required to motorise your furler, excluding the top swivel.
-
Marine-Grade Construction: Manufactured from corrosion-resistant aluminium and stainless steel for long-term durability in harsh marine environments.
-
Facnor Compatibility: Designed for seamless integration with existing Facnor FXe4500 top swivels and hardware.

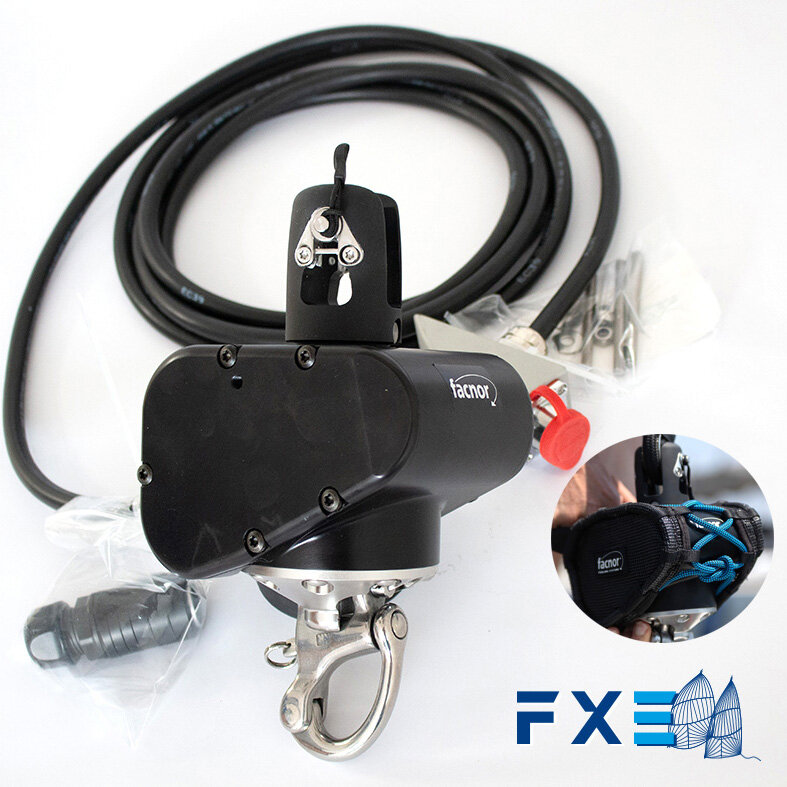

What’s Included in the Motorising Kit
The FXe4500 motorising kit includes all essential components required for electric furling, excluding the top furling swivel:
-
Motor / Drive Unit: High-torque electric drive unit matched to the selected voltage (12V or 24V).
-
Snap Shackle: For secure attachment of the motor unit to deck fittings.
-
Relay Box: Manages power delivery and ensures safe motor operation.
-
Circuit Breaker: Provides overcurrent protection for system safety.
-
Wiring and Connectors: Pre-wired marine-grade cables and connectors for straightforward installation.
-
Mounting Hardware: Brackets, fasteners and fittings for secure installation.
-
Storage Bag: Durable bag for protecting and organising components when not in use.
Specifications
-
Recommended Boat Size: Sailing yachts from 38 to 52 feet
-
Maximum Sail Area: Code zero sails up to 140 m²
-
Voltage: 12V or 24V (selected as product variant)
-
Materials: Marine-grade aluminium and stainless steel
Why Choose the FXe4500 Motorising Kit?
The Facnor FXe4500 Motorising Kit is the ideal solution for sailors upgrading to electric furling while retaining an existing top swivel. By offering both 12V and 24V options, it integrates easily into a wide range of onboard electrical systems while delivering proven Facnor performance and reliability.
Upgrade your furling system with confidence and enjoy effortless handling of medium-sized code zero sails, backed by Facnor’s engineering expertise.
