Windex

A Windex wind indicator is a masthead vane on a sapphire jewel bearing that shows apparent wind direction at the top of the rig. Made in Sweden by Windex Development AB since 1964, it comes in four sizes: the Windex 6 for dinghies, Windex 10 for 3–6 m, Windex 15 Mk2 for 5–12 m and Windex XL for 12–30 m. Replacement vanes, the BirdSpike and a 12 V LED night light are also listed. Read more below.

Choosing a Windex wind indicator by boat size


Match the vane to the boat and to the height you will read it from. A vane that suits a dinghy is too small to read from the cockpit of a 40-footer. A large one adds weight and windage at the masthead, where both matter most.


ModelVaneBoat lengthMounting

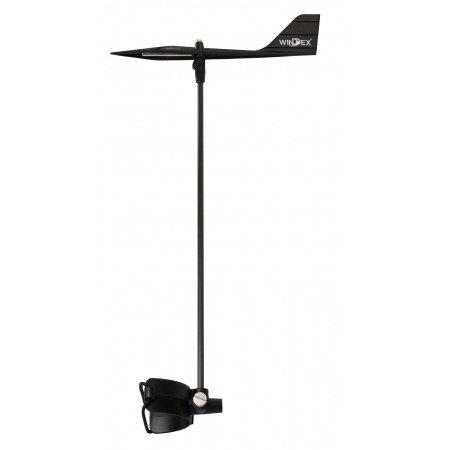

Windex 6 Dinghy150 mmdinghies, catamarans, bowspritstoolless flexible bracket, 43–70 mm spar
Windex 10250 mm3–6 m (10–20 ft)J-base: side, top or front of masthead
Windex 15 Mk2380 mm5–12 m (15–40 ft)masthead, masts up to 21 m
Windex XL584 mm12–30 mmasthead, masts over 21 m

Windex 10 vs Windex 15


The two overlap at 5–6 m, where sport boats and small keelboats sit. The Windex 10 weighs about 31 g against roughly 100 g for the 15, which matters on a light, tall rig where every gram aloft affects righting moment. The 15's longer vane and larger tabs are easier to read from 10–15 m below. If you sail from the cockpit at night or short-handed, the 15 is the more practical choice. On a dinghy-derived sport boat, the 10 is usually enough.


How to read a Windex


A Windex shows apparent wind, the combination of true wind and the boat's own motion, measured at masthead height. Wind speed normally increases with height and usually veers slightly. That means the masthead reading can differ from the telltales on the headsail, especially in light air.


The two adjustable tacking tabs are reference marks. Sail close-hauled on each tack in steady conditions and set each tab in line with the vane. From then on, the vane sitting on a tab tells you that you are at your close-hauled angle. Downwind, watch the vane as it nears the stern. Once it crosses the centreline you are sailing by the lee, and an accidental gybe is close.


Installing a Windex on the masthead


Mount the indicator forward on the masthead and clear of VHF antennas, the tricolour and any wind transducer, which all disturb airflow and can foul the vane. The spindle must be vertical. Where stainless studs go into an aluminium masthead, bed them in a barrier compound to limit galvanic corrosion. The Windex 10 and 15 take different fixings, available separately as spares.


Windex spares, BirdSpike and LED light

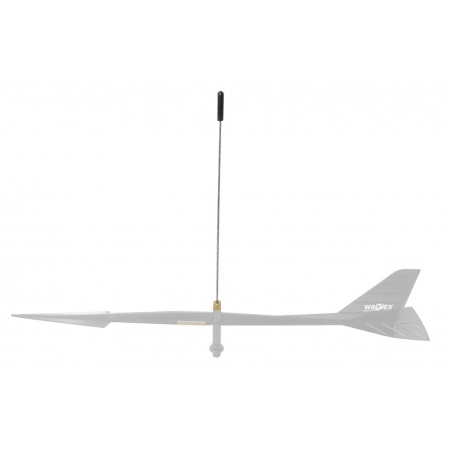

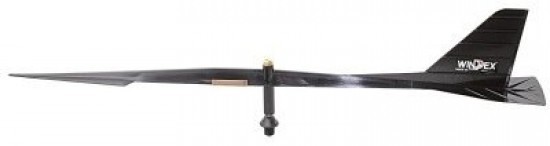

A damaged vane can be replaced on its own without changing the base or bearing. The replacement arrow for the Windex 15 covers the most common masthead failure: a bent vane after a bird strike, a halyard wrap or a crane lift. The BirdSpike adds a 190 mm spike above the vane to deter perching. It comes with the Windex 15 Mk2 and can be retrofitted to earlier Windex 15s.

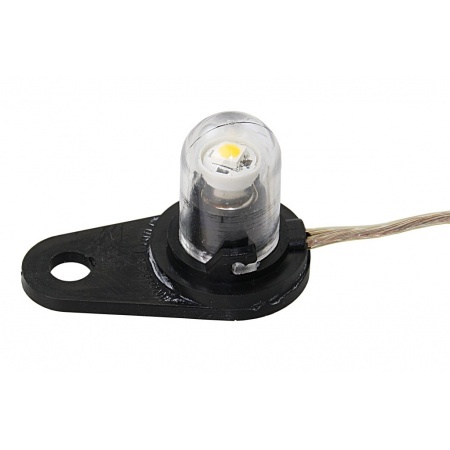

The 12 V LED night light mounts under the vane and needs a supply at the masthead. A spare 12 V E10 bulb is available. Reflective markers on the vane and tabs give some visibility without power when a deck light or torch is shone up the mast.


About Windex Development AB


Windex wind indicators have been designed in Sweden since 1964 and are sold in more than 40 countries. In North America, Davis Instruments now sells its equivalent units under the WindTrak name. Windex Development AB is unrelated to the household glass cleaner of the same name.



Windex FAQ block


What size Windex do I need?

Size it by boat length and by how far below the masthead you will read it. The Windex 6 is for dinghies and catamarans, the Windex 10 for boats of about 3–6 m (10–20 ft), the Windex 15 Mk2 for 5–12 m (15–40 ft) and the Windex XL for 12–30 m yachts with masts over 21 m. Where two sizes overlap, choose the larger if you mainly read it from the cockpit or at night. Choose the smaller if weight aloft matters more.


What is the difference between the Windex 10 and the Windex 15?

Vane length, weight and mounting. The Windex 10 has a 250 mm vane, weighs about 31 g and fits on a J-base to the side, top or front of a small masthead. The Windex 15 Mk2 has a 380 mm vane, weighs about 100 g with its BirdSpike, and is easier to read from the cockpit of a larger boat. Both use a sapphire jewel bearing and adjustable reflective tacking tabs.


Does a Windex show true or apparent wind?

Apparent wind. That is the wind you feel on the moving boat: true wind combined with the boat's own speed and heading. It is measured at masthead height, where wind is usually stronger and slightly veered compared with deck level. That is why the Windex and your headsail telltales can disagree in light air or a strong wind gradient. An electronic wind instrument can calculate true wind. A masthead vane cannot.


How do you read a Windex wind indicator?

The vane points into the apparent wind. The two tacking tabs are reference marks set to your close-hauled angle on each tack. When the vane lines up with a tab you are sailing as close to the wind as the boat will go. Inside the tab you are pinching, and outside it you can sheet in or head up. Downwind, a vane crossing the stern centreline means you are sailing by the lee.


How do you set the tacking tabs on a Windex?

Sail close-hauled in steady wind with the sails trimmed for best upwind performance, and note where the vane sits. Set the tab on that side to line up with it, then tack and repeat for the other tab. Setting them from a known good angle is more reliable than copying a figure from another boat, because the apparent wind angle close-hauled varies with hull, rig and sail cut.


How do you install a Windex?

Fit it forward on the masthead, clear of the VHF antenna, tricolour and wind transducer, with the spindle vertical. The Windex 10 uses a J-base that fixes to the side, top or front of the masthead. The Windex 15 has its own masthead fixing. On an aluminium masthead, bed stainless fasteners in a barrier compound to limit galvanic corrosion. Check that the vane turns freely through 360° before the mast goes up.


Can I replace just the vane on a Windex 15?

Yes. A bent or broken vane is the most common Windex failure, usually caused by a bird, a halyard wrap or contact during mast handling. The replacement arrow fits the existing support and bearing, so the masthead fixing does not need to be disturbed. Check the bearing for free rotation when you fit the new vane.


Does the Windex 15 Mk2 include the bird spike?

Yes. The Mk2 comes with the BirdSpike, which adds a 190 mm spike above the vane. The BirdSpike is also sold separately to retrofit to an earlier Windex 15 or to replace a lost or damaged one.


Can I fit a light to a Windex?

Yes. The Windex LED night light is a 12 V unit that mounts beneath the vane and lights it from below. It needs a 12 V supply at the masthead, usually run alongside the masthead light wiring. A replacement 12 V E10 bulb is available. Without power, the reflective markers on the vane and tabs show up in a torch beam.


Does a Windex need maintenance?

Very little. Rinse it with fresh water when the mast is down. Check that the vane rotates freely and is not bent, and that the tabs and fixings are secure. The sapphire jewel bearing does not need lubricating. Oil or grease only collects dirt and slows the vane. Replace the vane if it has been bent, because straightening it rarely restores its balance.


What is a Windex on a sailboat?

It is the common name for a masthead wind indicator, taken from Windex Development AB, the Swedish company that has made them since 1964. It is a balanced vane on a low-friction bearing that shows apparent wind direction at the top of the mast, with adjustable tabs marking the close-hauled angle on each tack. It has no connection with the glass cleaner of the same name.
