Schaefer

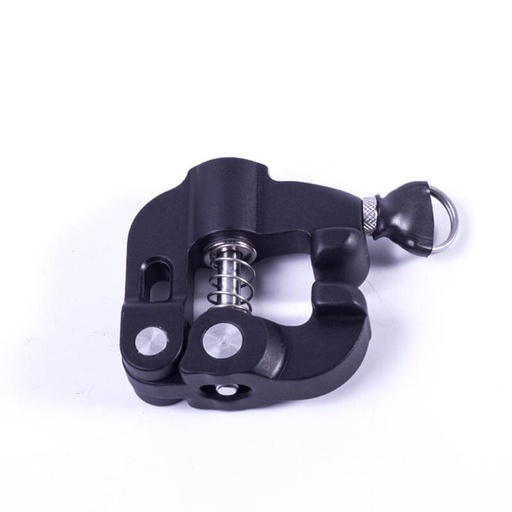

The Schaefer opening pre feeder guides a headsail's luff tape into the foil groove and, unlike a fixed-throat prefeeder, opens with a lanyard to release or re-engage the tape mid-hoist. Two sizes are listed: the 45-06 for #5 and #6 luff tape on boats to around 45ft, and the 45-07 for #5 to #8 tape with bolt ropes up to 1/2in. Both are hardcoat-anodised aluminium with stainless pin and spring. Read more below.
|
|
|
What a sail prefeeder does
A headsail with a luff tape is hoisted into a grooved foil, either a racing headfoil or the extrusion of a roller furler. The tape enters the groove through a feeder slot at the bottom of the foil. If the tape arrives twisted, bunched or at an angle, it jams at the slot and the hoist stops. A sail prefeeder sits a short distance below the foil feeder, lashed to the forestay or tack fitting. Its throat collects the tape from the deck, straightens it, and presents it square to the feeder entry. The result is less friction on the halyard, less chafe on the bolt rope, and a hoist the halyard tailer can complete without a crew member feeding the luff by hand.
Why the Schaefer opening pre feeder opens
On a fixed prefeeder the tape must be threaded through the throat before the hoist starts, and it cannot be removed until the sail is fully up or fully down. The Schaefer opening pre feeder has an aft-facing trip pin on a stainless spring. A pull on the lanyard opens the body sideways, so the tape can be dropped in at any point in the hoist, or released to clear a jam without lowering the sail back to the deck.
This matters most in two situations. The first is a headsail change on a twin-groove foil, where the new sail goes up in the free groove before the old one comes down. The second is a rushed hoist at a leeward mark rounding, where a tape that jumps out of the throat would otherwise mean starting again. The luff tape takes less abuse in both cases, because it is never forced through a throat it has already left.
Choosing between the 45-06 and 45-07
| 45-06 Small | 45-07 Large | |
|---|---|---|
| Luff tape | #5 and #6 | #5 to #8 |
| Max bolt rope diameter | 3/8in (9.5mm) | 1/2in (12.7mm) |
| Typical boat size | up to approx. 45ft, one-design keelboats | large offshore boats |
| Throat gap | adjustable | adjustable |
| Body | aluminium, hardcoat anodised | 6061-T6 aluminium, hardcoat anodised |
| Pin and spring | stainless steel | stainless steel |
Specifications are from Schaefer's retailer data sheets.
Size to the luff tape, not to the boat. Luff tape numbers are a sailmaker and foil-maker designation and do not convert directly to millimetres. Check the number with your sailmaker, or measure the bolt rope across its diameter and compare it with the limits above. If the boat carries several headsails with different tapes, size to the largest.
Fitting and use
Lash the prefeeder through its machined lashing hole to the forestay or the tack fitting, so the throat lines up with the foil feeder and does not pull the tape at an angle. Lead the trip lanyard aft to where the bowman or halyard tailer works. Set the throat gap to the tape in use: too wide and the tape escapes, too tight and it drags. The enlarged luff-rope guides are designed for hands-free hoisting once the tape is engaged.
About Schaefer Marine
Schaefer Marine is a US manufacturer of sailboat hardware based in New Bedford, Massachusetts, and has been trading since 1966. Its range covers jib furlers, including the System 1100, 2100 and 3100 and the Snapfurl, as well as boom furlers, blocks, cam cleats, genoa cars, travellers and sail track. Upffront currently lists the opening pre feeders; the furler and block ranges are not stocked.
Schaefer Marine FAQs
What is a sail prefeeder?
A guide fitted a short distance below the feeder slot of a grooved headfoil or furler foil. It collects the headsail's luff tape as it comes off the deck, straightens it, and presents it square to the foil entry. Without one, the tape tends to arrive twisted or at an angle and jam in the feeder, and someone has to stand at the stay and feed the luff by hand.
What is the difference between an opening and a fixed prefeeder?
A fixed prefeeder has a closed throat: the tape is threaded through before the hoist and stays captive until the sail is fully up or down. An opening prefeeder can be released with a lanyard, so the tape can be engaged mid-hoist or let go to clear a jam without lowering the sail. Fixed designs are simpler and lighter. Opening designs suit headsail changes and short-handed or race-pace hoists.
Which Schaefer opening pre feeder do I need?
Size to the luff tape and bolt rope rather than the boat. The 45-06 takes #5 and #6 luff tape with a bolt rope up to 3/8in, and is intended for boats up to around 45ft. The 45-07 takes #5 to #8 tape with a bolt rope up to 1/2in. If you carry headsails with different tapes, size to the largest.
What is luff tape?
Luff tape is the fabric strip sewn along the leading edge of a headsail or mainsail, wrapped around a bolt rope. The bolt rope slides inside the groove of a foil or mast track and holds the sail's edge in place. Luff tape is used instead of hanks wherever the headsail sets on a foil, whether that is a roller furler or a racing headfoil.
What luff tape size is #6?
Luff tape numbers are designations used by sailmakers and foil manufacturers, and they do not convert directly to a bolt rope diameter in millimetres. The reliable approach is to ask your sailmaker which number was used, or to measure the bolt rope across its diameter and check it against the foil groove and the prefeeder's maximum bolt rope size.
Can I use a prefeeder on a roller furling headsail?
Yes. A roller furler foil has a groove and a feeder like a racing headfoil, so the same jamming problem occurs when hoisting. A prefeeder is most useful on a furler during sail changes or when the headsail is bent on and taken off seasonally. It is not needed for normal furling and unfurling once the sail is hoisted.
Can a prefeeder be used with hanked-on headsails?
No. Hanked sails clip directly to the forestay and have no luff tape. A prefeeder only works with a sail that has a bolt rope and luff tape running in a grooved foil.
Where should a prefeeder be positioned?
A short distance below the foil feeder, lashed to the forestay or tack fitting so the throat sits in line with the feeder entry. If it pulls the tape at an angle, it adds friction instead of removing it. Lead the trip lanyard aft to where the crew handling the hoist can reach it.
Who makes Schaefer marine hardware?
Schaefer Marine Inc., a US sailboat hardware manufacturer based in New Bedford, Massachusetts, trading since 1966. It is unrelated to Schaefer beer, Schaefer Outfitter clothing, or the German bearing manufacturer Schaeffler.
