D Splicer
D Splicer is a Netherlands-based company that specializes in advanced rope splicing tools designed for sailors, riggers, and anyone working with modern synthetic fibers like Dyneema, Spectra, and Vectran. As synthetic ropes have become stronger and more complex, traditional splicing tools have proven insufficient, particularly with smaller diameter lines. D Splicer addresses this need by developing specialized splicing needles, fids, and related tools that allow for precise and efficient splicing, especially in tight spaces where conventional tools struggle. Read more below...
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
D-Splicer develops specialised rope splicing tools designed for efficient handling of Dyneema and other HMPE lines. The modular system enables precise bury insertion, tapering, and loop construction in small to medium diameter single braid ropes. These rope splicing tools are widely used for soft shackles, eye splices, and continuous loops in modern sailing rigging applications.
D-Splicer Rope Splicing Tools for Dyneema Applications
This category focuses exclusively on D-Splicer rope splicing tools, engineered for working with high-modulus fibres such as Dyneema (HMPE). These tools are designed to address the specific challenges of splicing modern single braid ropes, where low stretch, tight braid structures, and reduced friction tolerance require greater precision compared to traditional polyester lines.
Unlike general-purpose fid sets, D-Splicer tools are optimised for:
- Small-diameter Dyneema lines
- High-load, low-stretch applications
- Repeatable splice construction
Typical onboard uses include:
- Soft shackle construction
- Eye splices in Dyneema control lines
- Continuous loops and strops
- Lashings replacing metal hardware
- Rope Splicing Tool Selection by Diameter
Correct tool sizing is critical when selecting rope splicing tools for Dyneema. D-Splicer provides a modular range of needles and accessories matched to rope diameter.
Recommended Rope Splicing Tool Guide
| Rope Diameter | Tool Type | Typical Use |
|---|---|---|
| 2–4 mm | Micro / XS Needle | Lashings, small soft shackles |
| 4–6 mm | Small Needle | Control lines, loops |
| 6–8 mm | Medium Needle | Sheets, halyards |
| 8 mm+ | Large Needle / Puller | Strops, high-load splices |
These rope splicing tools are primarily designed for:
- Single braid Dyneema (SK75, SK78, SK99)
- Open braid constructions requiring bury insertion
They are less suitable for:
- Double braid ropes with tight covers
- Polyester ropes requiring tubular fids
Key Features of D-Splicer Rope Splicing Tools
Low-Friction Bury Insertion

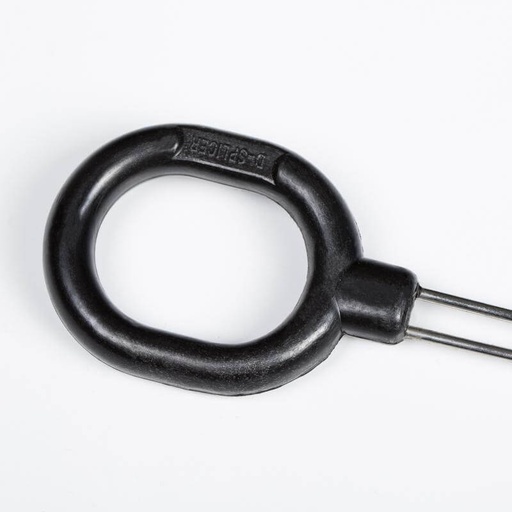

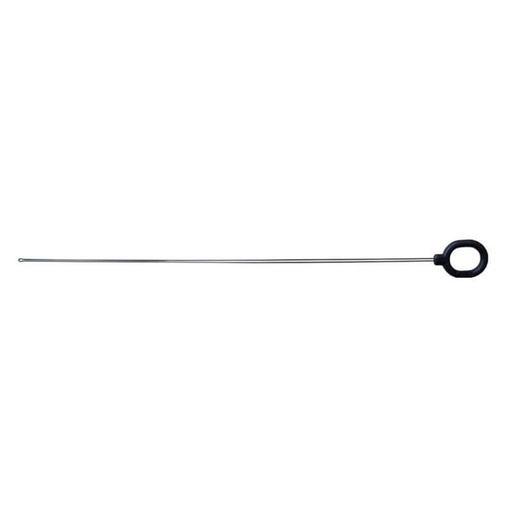

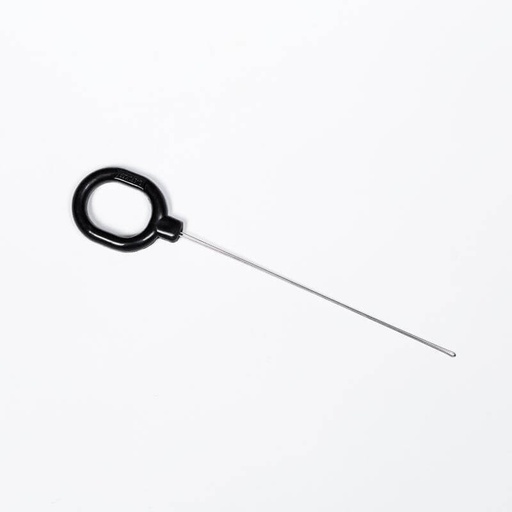

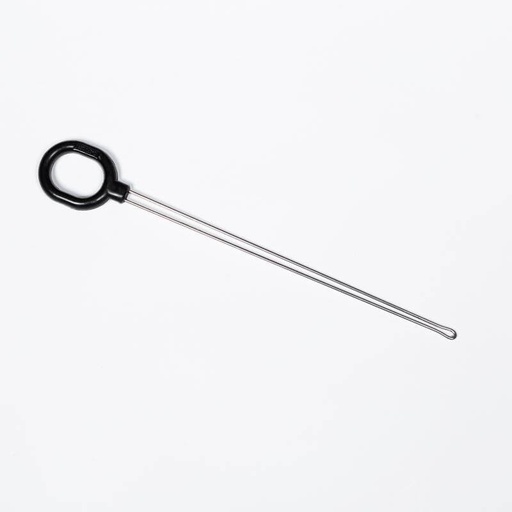

D-Splicer needles are engineered to minimise resistance when pulling Dyneema through itself. This is particularly important in smaller diameters where friction increases significantly.
Controlled and Repeatable Splicing
The fixed geometry of each tool ensures consistent splice dimensions, which is essential when producing:
- Multiple soft shackles
- Identical loops or strops
- Load-critical rigging elements
Reduced Fibre Damage
Compared to wire fids or improvised tools, D-Splicer rope splicing tools reduce:
- Fibre snagging
- Internal abrasion
- Uneven taper transitions
This helps maintain rope strength, particularly in HMPE fibres where damage is less visible but structurally significant.
Modular Tool System
D-Splicer tools are designed as a modular rope splicing system, including:
- Interchangeable needles
- Loop tools for continuous splices
- Pullers for higher load applications
This allows users to select tools based on rope diameter and splice type rather than relying on a single fid.
Applications of Rope Splicing Tools in Sailing
D-Splicer tools are widely used for manufacturing soft shackles from Dyneema. Precision during bury and tapering is critical to ensure:
- Proper knot seating
- Load distribution
- Compact finished geometry
- Eye Splices in Dyneema
Used in:
- Halyards
- Sheets
- Control systems
Accurate tapering and correct bury length are essential for maintaining strength and avoiding stress concentrations.
Loop tools simplify the construction of:
- Block attachment loops
- Purchase systems
- Low-weight rigging solutions
Increasingly used instead of metal fittings:
- Deck attachments
- Rigging connections
- Weight-sensitive racing setups
D Splicer Rope Splicing Tools
D-Splicer Rope Splicing Kits and Individual Tools
D-Splicer rope splicing tools are available as both complete kits and individual components, allowing users to select equipment based on rope diameter range and frequency of use.
D-Splicer’s product lineup includes multiple tool sets tailored for different levels of application:

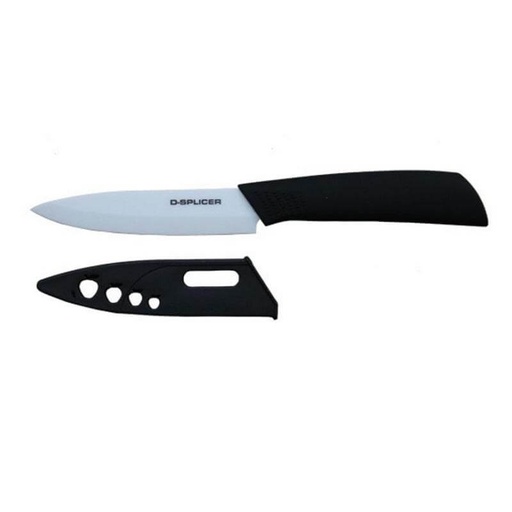

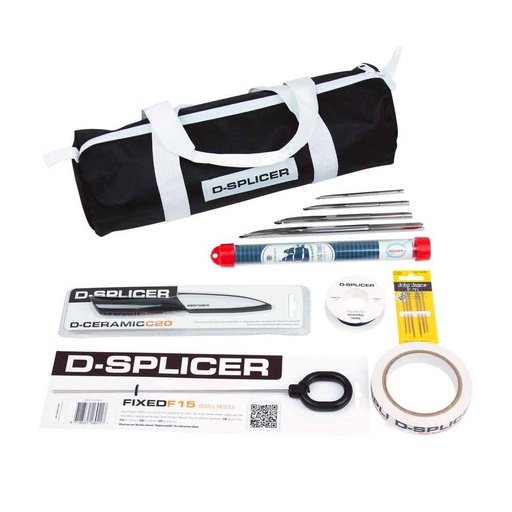

- Sailor Set: An entry-level rope splicing kit including core tools such as needles, a knife, and whipping twine. Suitable for Dyneema and rope diameters from approximately 1–16 mm, covering most onboard splicing tasks.
- Mariner Set: An expanded configuration including additional tools such as the D-Splicer A-4 set and small rope fids. This provides increased versatility for more frequent splicing and a wider range of applications up to 16 mm.
- Rigger Set: A comprehensive kit intended for intensive or professional use. It supports rope splicing up to 20 mm and includes larger needles (including XL sizes), soft fids, and multiple whipping twine options such as polyester and Stirotex for finishing.
Individual Rope Splicing Tools
Individual tools are also available for:
- Specific rope diameters
- Replacement or system expansion
- Targeted rigging applications
Advantages Over Traditional Rope Splicing Tools
D-Splicer rope splicing tools offer several technical advantages when working with Dyneema:
- More efficient bury insertion in tight HMPE braids
- Improved taper consistency
- Reduced friction during splicing
- Better repeatability across multiple splices
Traditional wire fids and tubular tools can still be effective, but are generally less optimised for modern single braid Dyneema, particularly in smaller diameters.
Practical Considerations for Rope Splicing
When using rope splicing tools, correct technique remains critical:
- Follow appropriate bury length ratios for Dyneema
- Ensure gradual and consistent tapering
- Avoid excessive force during insertion
- Prepare rope ends cleanly before starting
D-Splicer tools are designed to support these processes but do not replace correct splicing methodology.
Summary on D-Splicer rope splicing tools
D-Splicer rope splicing tools are designed specifically for working with Dyneema and other HMPE ropes, offering a modular system for precise and repeatable splicing. For applications such as soft shackles, eye splices, loops, and lashings, these tools provide a technically efficient solution, particularly in small to medium diameter single braid lines commonly used in modern sailing rigging systems.
