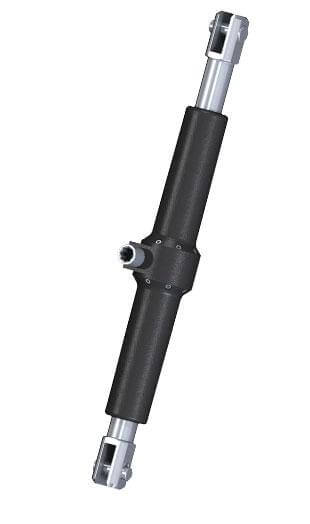

Specifications for Bamar BTM handle stay adjuster ø14
| Boat | |
|---|---|
| Load | |
| SWL (kg) | 8500 |
| NBL (kg) | 17000 |
| Dimensions | |
| A (mm) | 89 |
| B Max (mm) | 1170 |
| B Min (mm) | 770 |
| C (mm) | 47 |
| D (mm) | 22.5 |
| Pin Ø (mm) | 22 |
| Stroke (mm) | 400 |
| Wire Ø (mm) | 14 |
| Rigging | |
| Rod dash size | -30 |
| Undefined | |
| Size | 14 |
| Weight | |
| Weight (g) | 9800 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
